ESIE-0302 Functional Description
Part 2 – Functional Description 2–5
3
2
4
5
1
1.3 Operational Range: EUWA*5-24KZW1

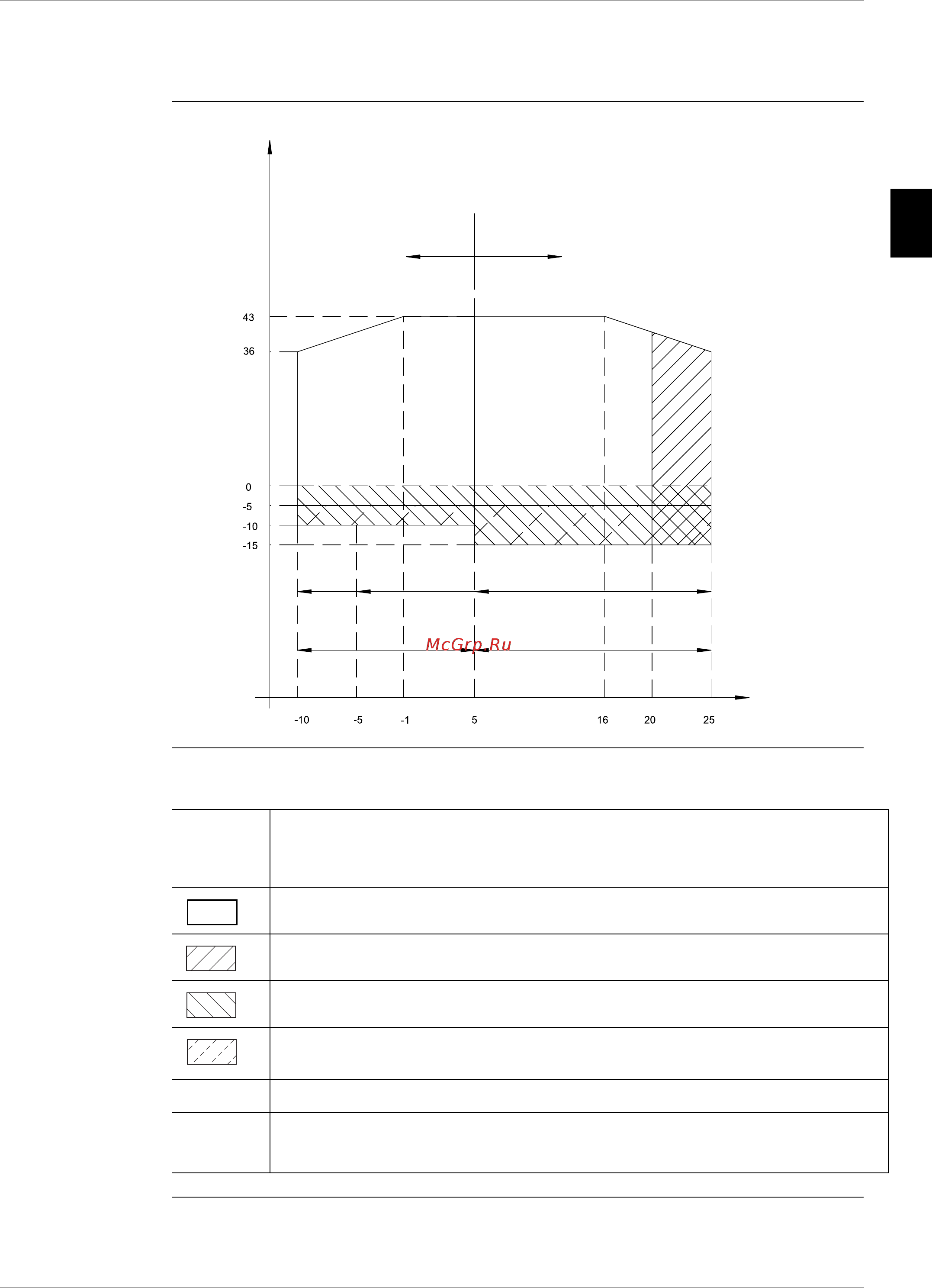

Operational range The illustration below shows the operational range of EUWA*5-24KZW1.
Legend The table below describes the patterns and abbreviations used in the operational range illustration
above.
ZLZH
Water
Glycol
Leaving evaporator
water temp. (°C)
Outdoor
temp. (°CDB)
OPTION STANDARD
STANDARD
Pattern/
Abbrevia-
tion
Description
Standard operation
Pull-down area
Protection water circuit against freezing
If the units operate below -5°C and are installed in a draughty space, a windscreen is
required
ZH Option to produce evaporating leaving water temperature till -5°C
ZL Option to produce evaporating leaving water temperature till -10°C
