General Outline ESIE-0302
1–52 Part 1 – System Outline
3
1
1
4
5

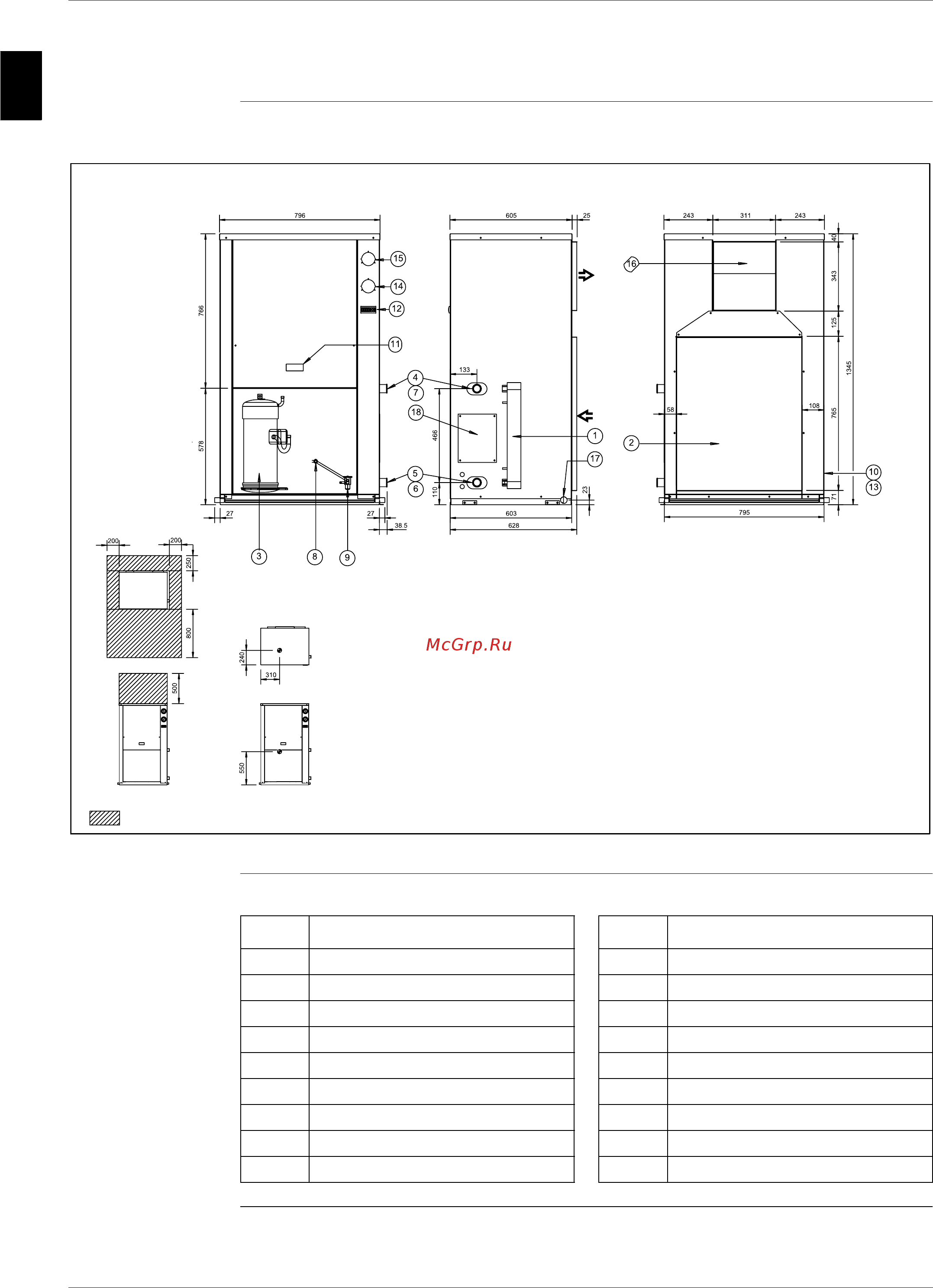

1.21 Outlook Drawing: EUWAC5FZW1
EUWAC5FZW1 The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components.
Centre of gravity
Required space around the unit for service and air intake
Air
Air
No. Component No. Component
1 Evaporator 10 Power supply intake
2 Condensor 11 Switch box
3 Compressor 12 Digital display controller
4 Chilled water in (
FBSP 1” ) 13 Field wiring intake
5 Chilled water out (
FBSP 1” ) 14 Low-pressure gauge
6 Leaving water temperature sensor 15 High-pressure gauge
7 Entering water temperature sensor 16 Fan
8 Filter 17 Drain pipe (Ø25)
9 Expansion valve 18 Serviceplate
