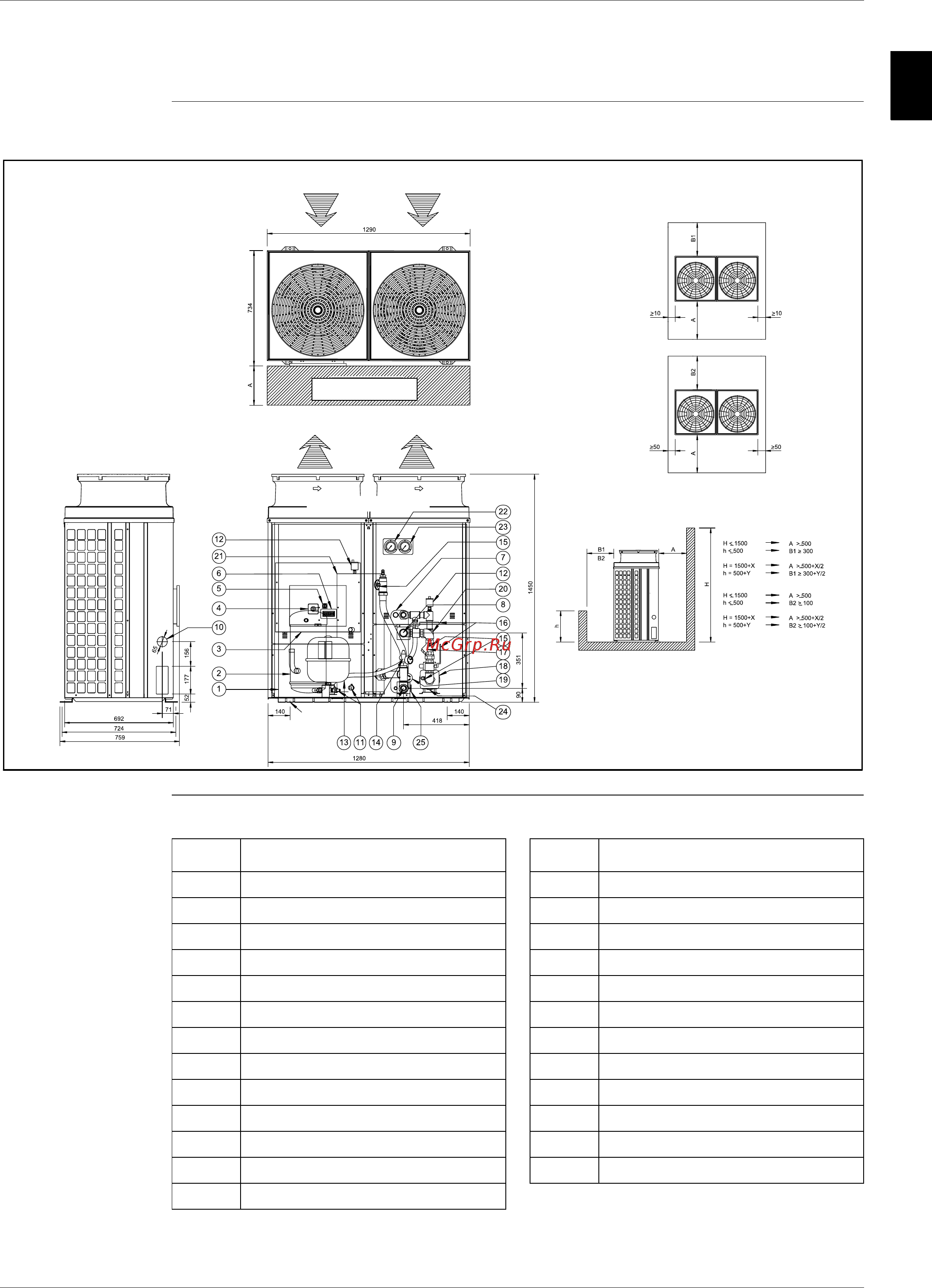

1.28 Outlook Drawing: EUWAB10-12KZW1
EUWAB10-12KZW1 The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components.
FREE SPACE B1/B2
FREE SPACE MIN 3m
CAUTION FOR FAN
FIXATION
4XØ15
SERVICE SPACE
No. Component No. Component
1 Air heat exchanger 14 Safety valve + pressure gauge
2 Compressor 15 Pressure port
3 Switch box 16 Ball valve
4 Main switch 17 Water filter
5 Pump Switch 18 Pump
6 Digital display controller 19 Regulation valve
7 Evaporator 20 Flow switch
8 Water IN connection: 1 1/4” BSP 21 Buffer tank
9 Water OUT connection: 1 1/4” BSP 22 High pressure gauge (optional)
10 Power supply intake 23 Low pressure gauge (optional)
11 Drain 24 Pump drain
12 Air purge 25 Needle valve
13 Expansion vessel
