Daikin EUWAC5FZW [140/264] Defrost cycles and compressor stop function
![Daikin EUWAC5FZW [140/264] Defrost cycles and compressor stop function](/views2/1657184/page140/bg8c.png)
ESIE-0302 Functional Description
Part 2 – Functional Description 2–29
3
2
4
5
1
Illustration
compressor stop
function

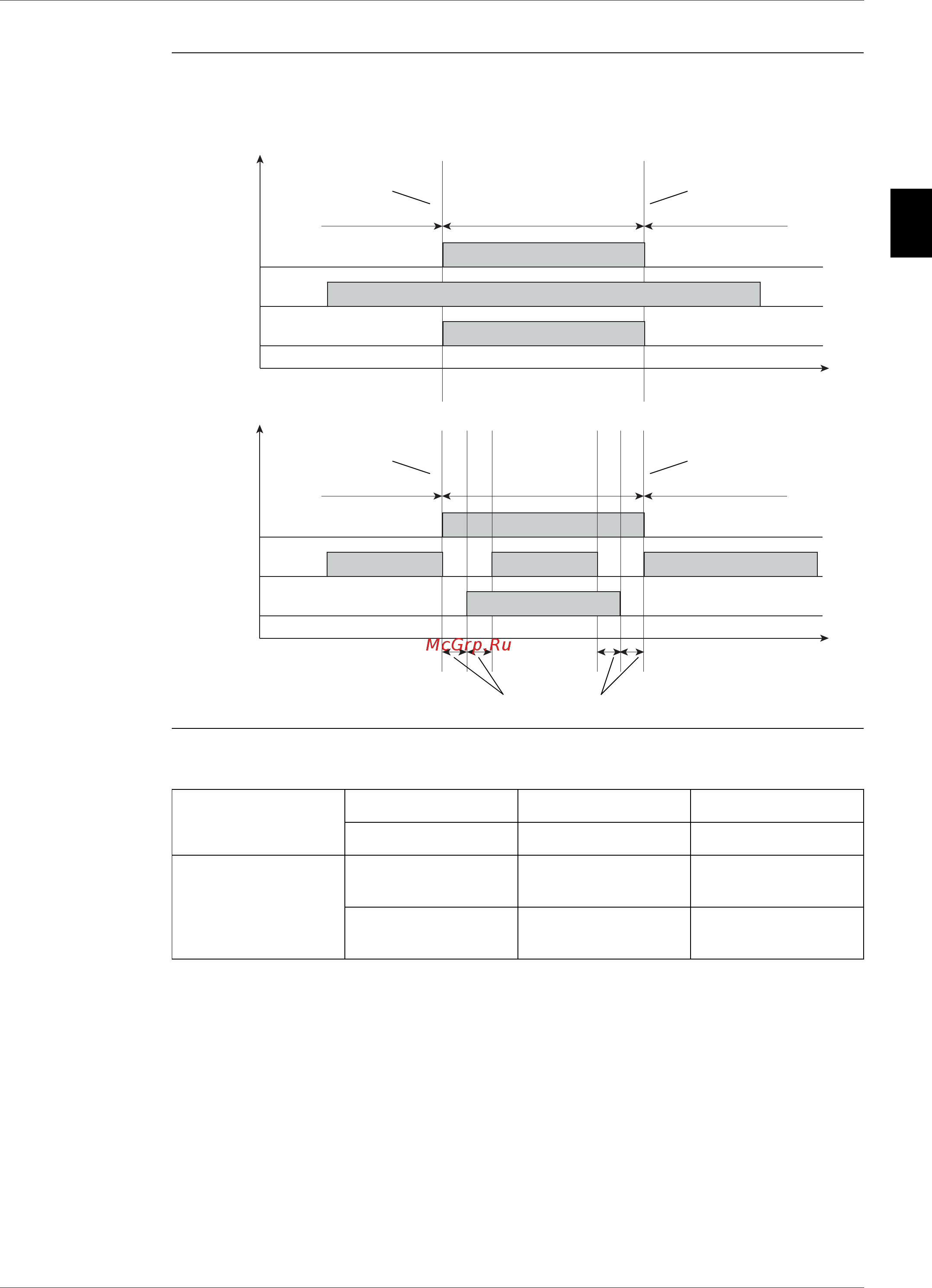

The illustrations below show the defrost cycle without and with compressor stop during the defrost
cycle.
Defrost cycles and
compressor stop
function
The table below describes the minimum and maximum defrost cycles without and with compressor
stop.
Defrost cycle
Start TimDefrMin
Start TimDefrMax
Start TimDefrMask
Time
Yes
No
ON
OFF
ON
OFF
Defrost
BusyC1
Compr.
DORev
Valve
Defrost cycle
Start TimDefrMin
Start TimDefrMax
Start TimDefrMask
Time
Yes
No
ON
OFF
ON
OFF
Defrost
BusyC1
Compr.
DORev
Valve
Without compressor
stop
Minimum cycle 10 s TimdefrMin
Maximum cycle 10 min TimDefrMax
With compressor stop Minimum cycle 130 s TimComprStopx4 +
TimdefrMin
Maximum cycle 12 min TimComprStopx4 +
TimDefrMax
TimComprStop
