Pre-Test Run Checks ESIE-0302
4–12 Part 4 – Commissioning and Test Run
3
1
4
5
1.6 External Static Pressure: EUWA*16-24KZW1
External static
pressure

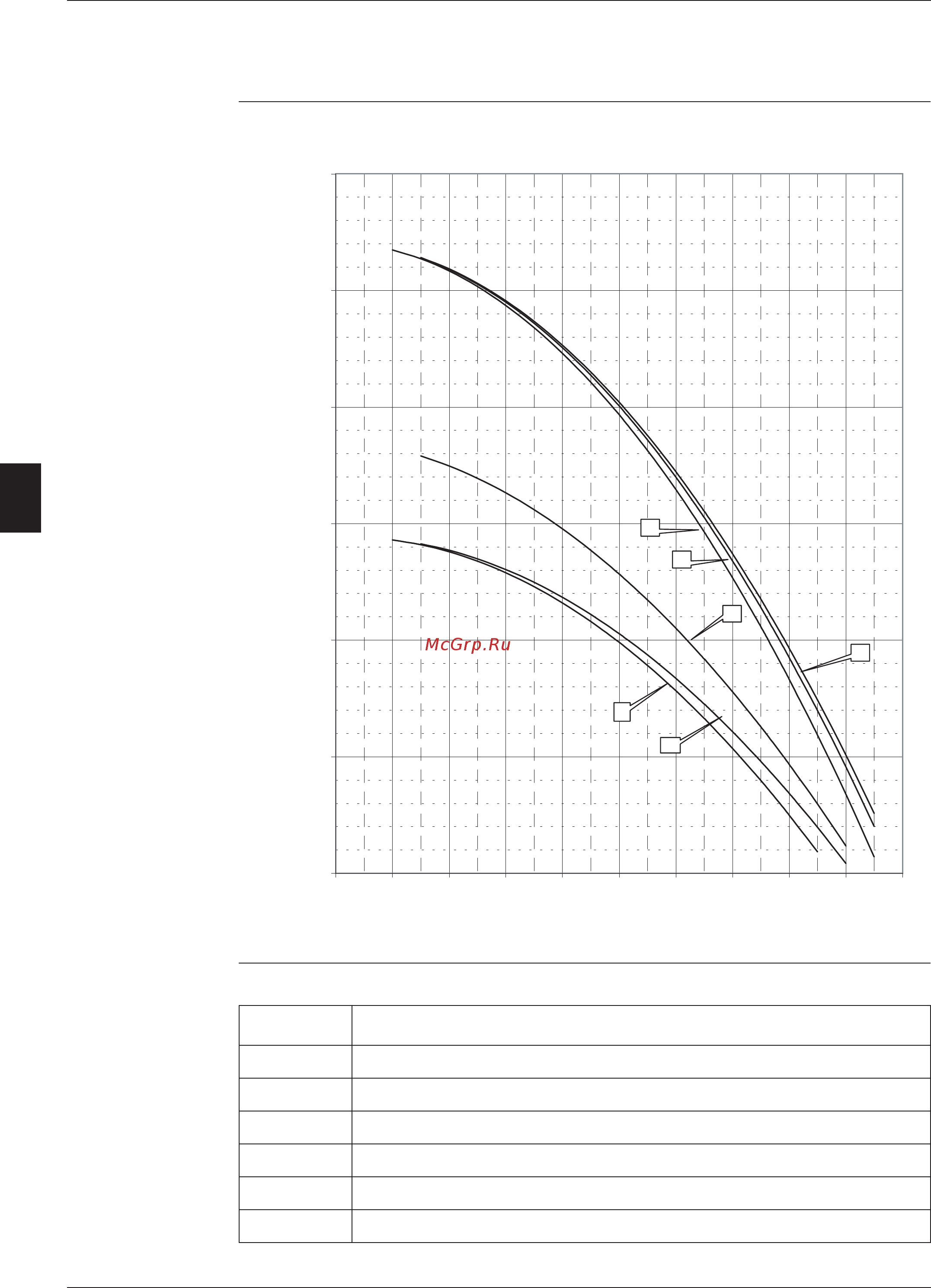

The illustration below shows the external static pressure of the unit depending on the water flow and
the OP-pump.
Symbols The table below describes the symbols.
0,00
100,00
200,00
300,00
400,00
500,00
600,00
0 20 40 6080 100 120 140 160 180 200
WF [l/min]
ESP [kPa]
3
2
1
4
5
6
Symbol Description
ESP External static pressure of the unit
WF Waterflow rate
(1) EUWA(P,B)16KZW1 (standard)
(2) EUWA(P,B)20KZW1 (standard)
(3) EUWA(P,B)24KZW1 (standard)
(4) EUWA(P,B)16KZW1 (OP pump high)
