General Outline ESIE-0302
1–60 Part 1 – System Outline
3
1
1
4
5

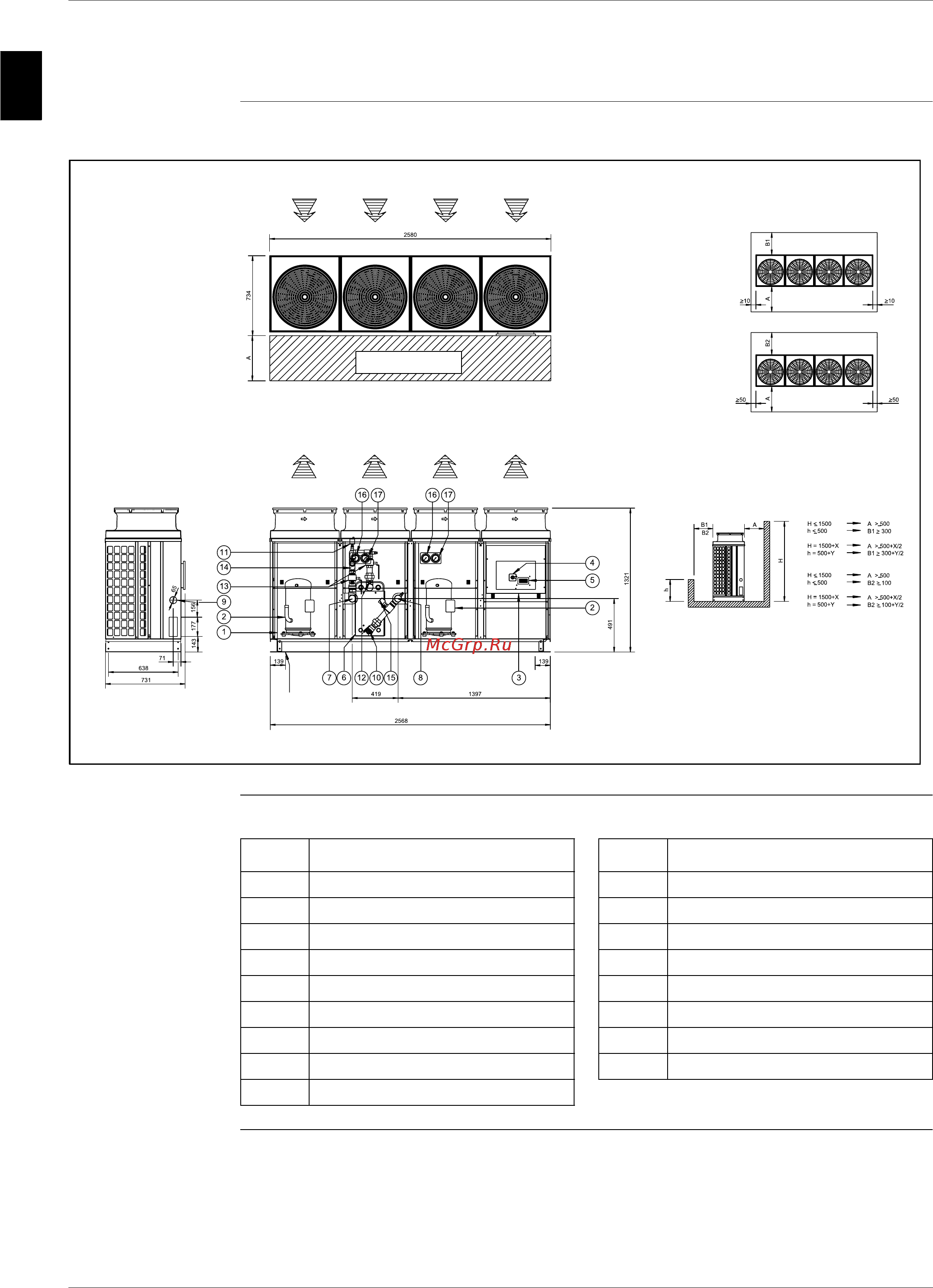

1.29 Outlook Drawing: EUWAN16KZW1
EUWAN16KZW1 The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components.
FREE SPACE B1/B2
FREE SPACE MIN 3m
CAUTION FOR FAN
FIXATION
4XØ15
CAUTION FOR FAN
SERVICE SPACE
No. Component No. Component
1 Air heat exchanger 10 Drain
2 Compressor 11 Air purge
3 Switch box 12 Pressure port
4 Main switch 13 Ball valve
5 Digital display controller 14 Water filter
6 Evaporator 15 Flow switch
7 Water IN connection: 2” BSP 16 High pressure gauge (optional)
8 Water OUT connection: 2” BSP 17 Low pressure gauge (optional)
9 Power supply intake
