3.2 Main Functions of the EUWAC5-10FZW1

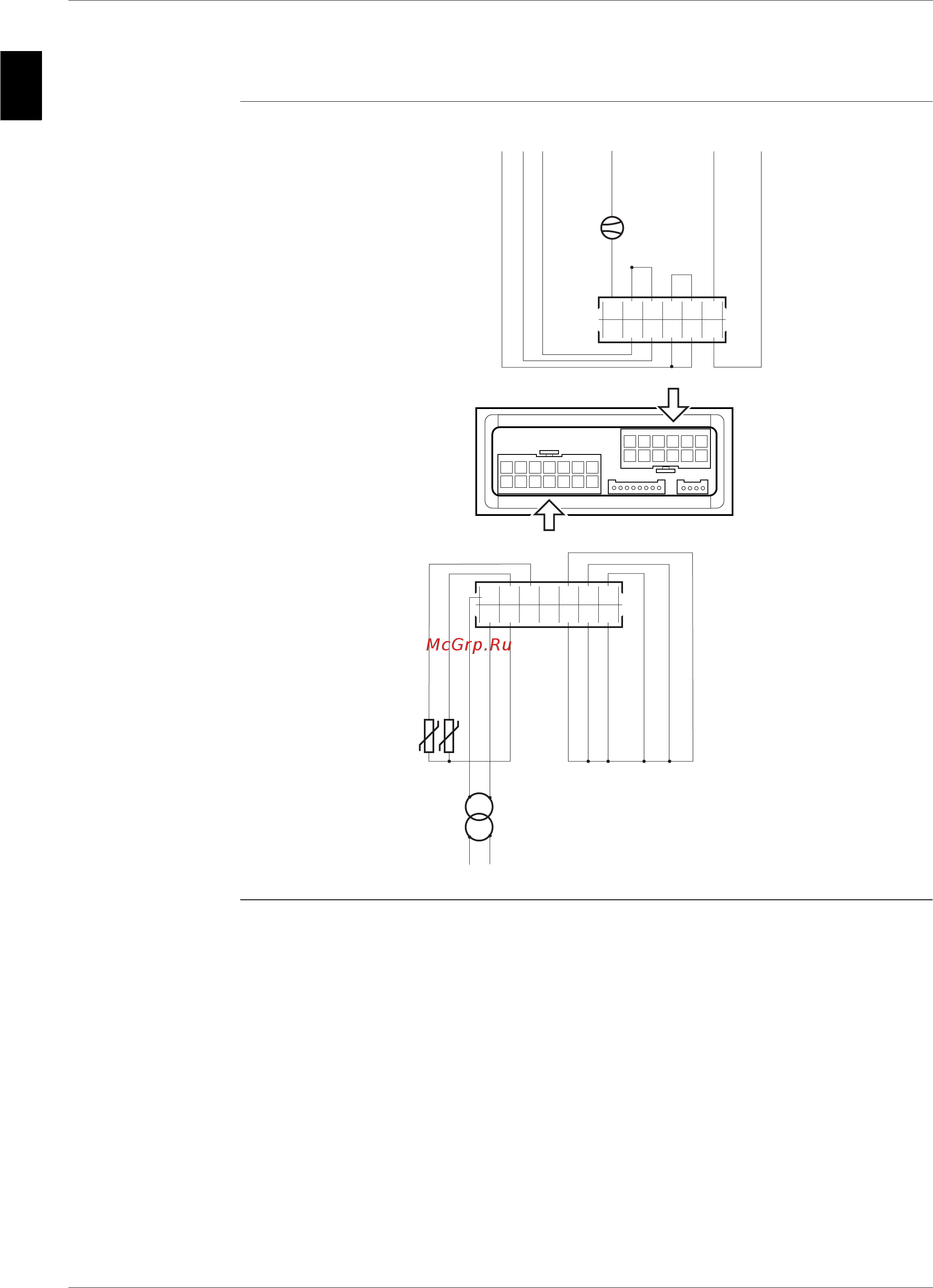

Main functions The illustration below shows the main circuit of EUWAC5-10FZW1.
G0 B1 B2 B3 ID5 ID3 ID1
X2
X1
G GND GND Y GND ID4 ID2
No1 C1/2 C1/2 C3/4 x C5
No2 No3 No4 C3/4 x No5
LP switch
Flow switch
HP - disch. temp. - overcurrent
Remote ON/OFF
Power supply
Voltage-free contact for pump
Compr.
Line
Alarm voltage-free contact
Outlet probe
Inlet probe
