ESIE-0302 Functional Description
Part 2 – Functional Description 2–13
3
2
4
5
1

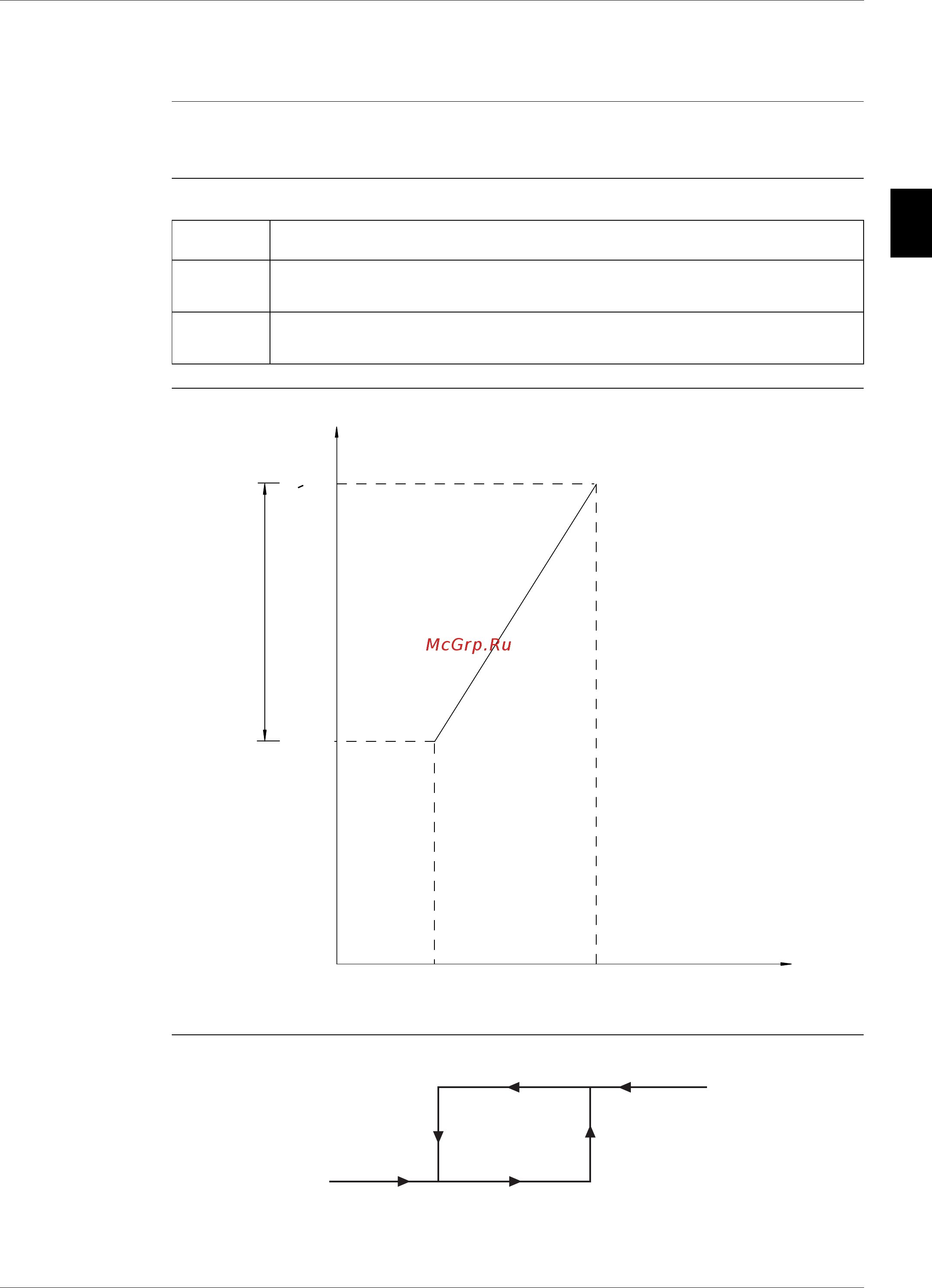

1.10 Head Pressure Control: EUWAC5-10FZW1
Functional
description
EUWAC5-10FZW1 is equipped with a fan control to ensure that high pressure is maintained when the
ambient temperature is low.
Fan control The table below describes the fan control.
Head pressure
control for 5 HP
The illustration below shows the head pressure control for the 5 HP.
Head pressure
control for 8-10 HP
The illustration below shows the head pressure control for 8-10 HP.
Unit Fan control
5 HP Fan control is done by a fan speed controller that regulates the fan speed with
single phase fan speed control (phase-cutting).
8-10 HP Fan control is done by the high/low speed (star/delta) of the fan motor. The
transition between high speed and low speed is regulated by a pressure switch.
> 95 %
45 %
12 bar
16 bar
Output voltage
to motor
Pressure
(bar)
Operation range of the fan speed
controller
Cut-off mode
12 bar
22 bar
Low speed
High speed
Cool mode
