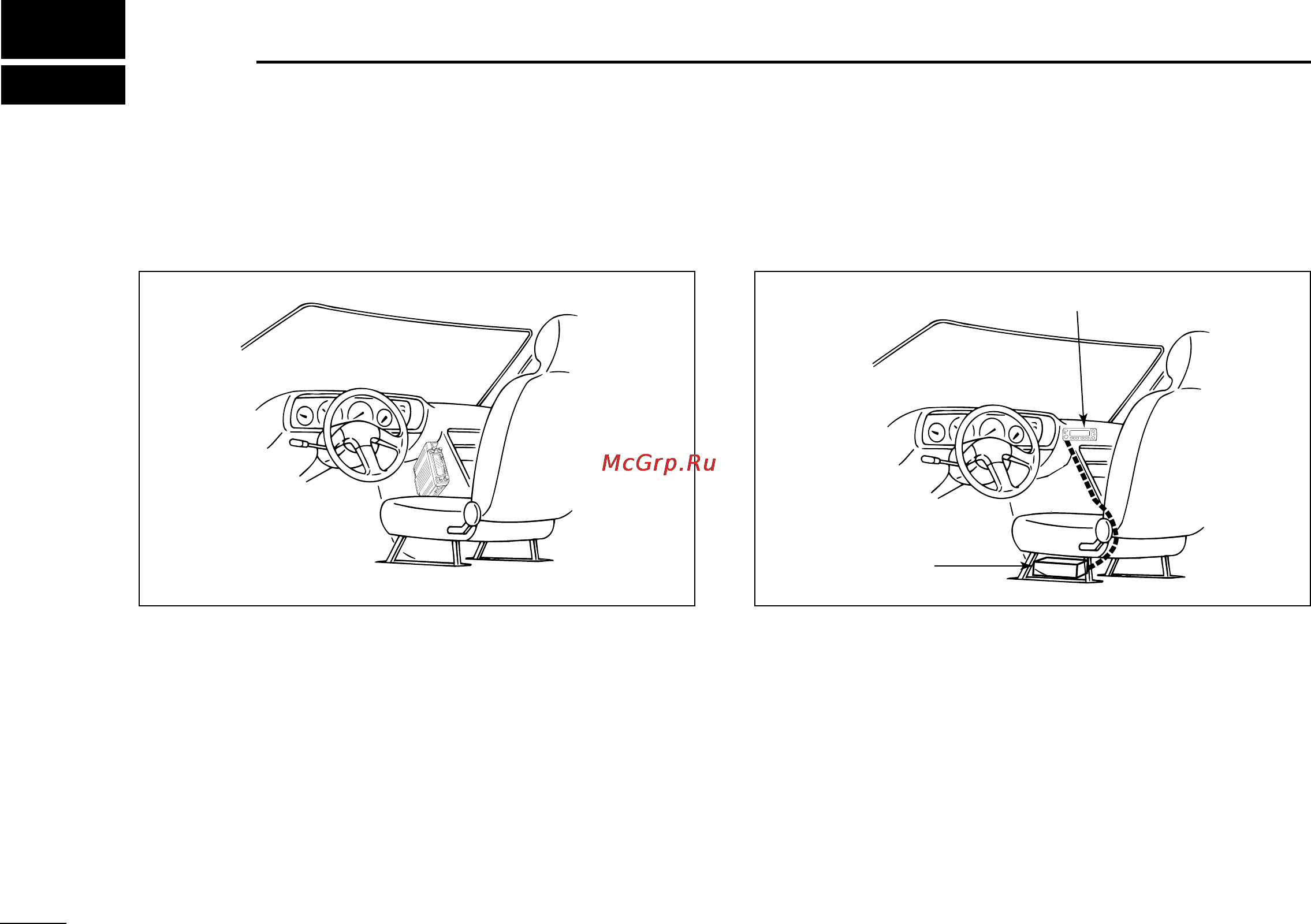

D Separate installation
• Optional OPC-600
SEPARATION CABLE
(3.5 m; 11.5 ft) or
OPC-601 (7.0 m; 23.0 ft) is necessary.
• Optional MB-58
REMOTE CONTROLLER BRACKET
is available
for front panel mounting.
• Optional MB-65
MOUNTING BASE
is available for increasing
front panel mounting possibilities (MB-58 is necessary).
• Optional OPC-440
MICROPHONE CABLE
(5.0 m; 16.4 ft) and
OPC-647 (2.5 m; 8.2 ft) are available to extend the micro-
phone cable.
• Optional OPC-441
SPEAKER CABLE
(5.0 m; 16.4 ft) is avail-
able to extend the speaker cable.
INSTALLATION
2
9
■ Installation methods
D Single body installation
• It is not necessary to purchase a mounting bracket. The
supplied mounting bracket (or optional MB-17A) can be
used for installation.
Main body
Front panel
