3
SETTING A FREQUENCY
19
■ Using the keypad
The frequency can be directly set via numeral
keys on the microphone.
Ä Push [BAND] to set the operating band, if necessary.
Å Push [VFO] to select VFO mode.
Ç Push [ENT] to activate the keypad for digit input.
É Push 5 keys to input a frequency.
• When a digit is mistakenly input, push [ENT] to clear the input,
then input from the 1st digit.
• Pushing [CLR] clears input digits and retrieves the frequency.
Ñ Push [Y] or [Z] to make adjustments below the 10 kHz
digit, if desired.

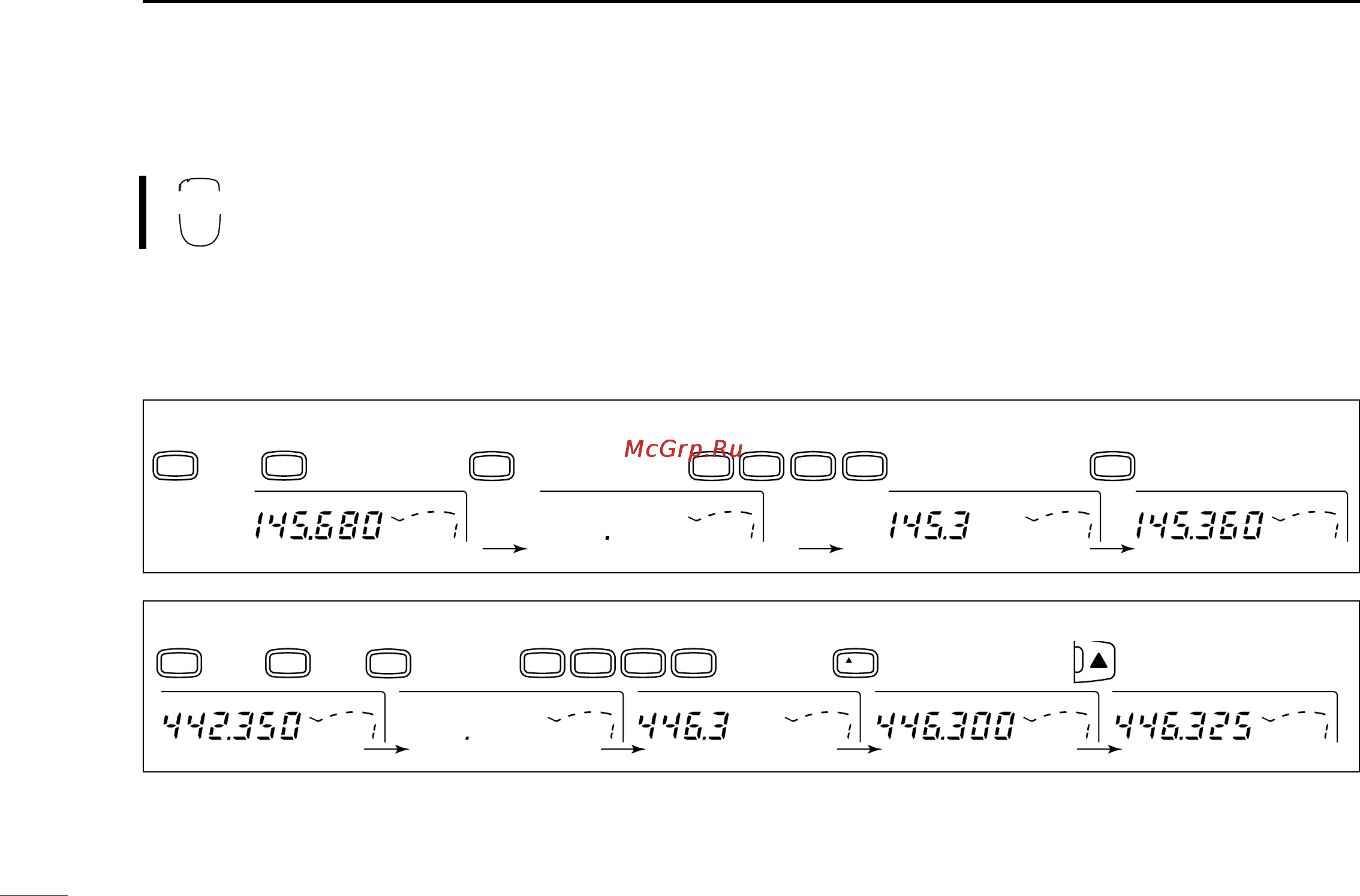

[EXAMPLE]: Setting the frequency to 145.360 MHz.
