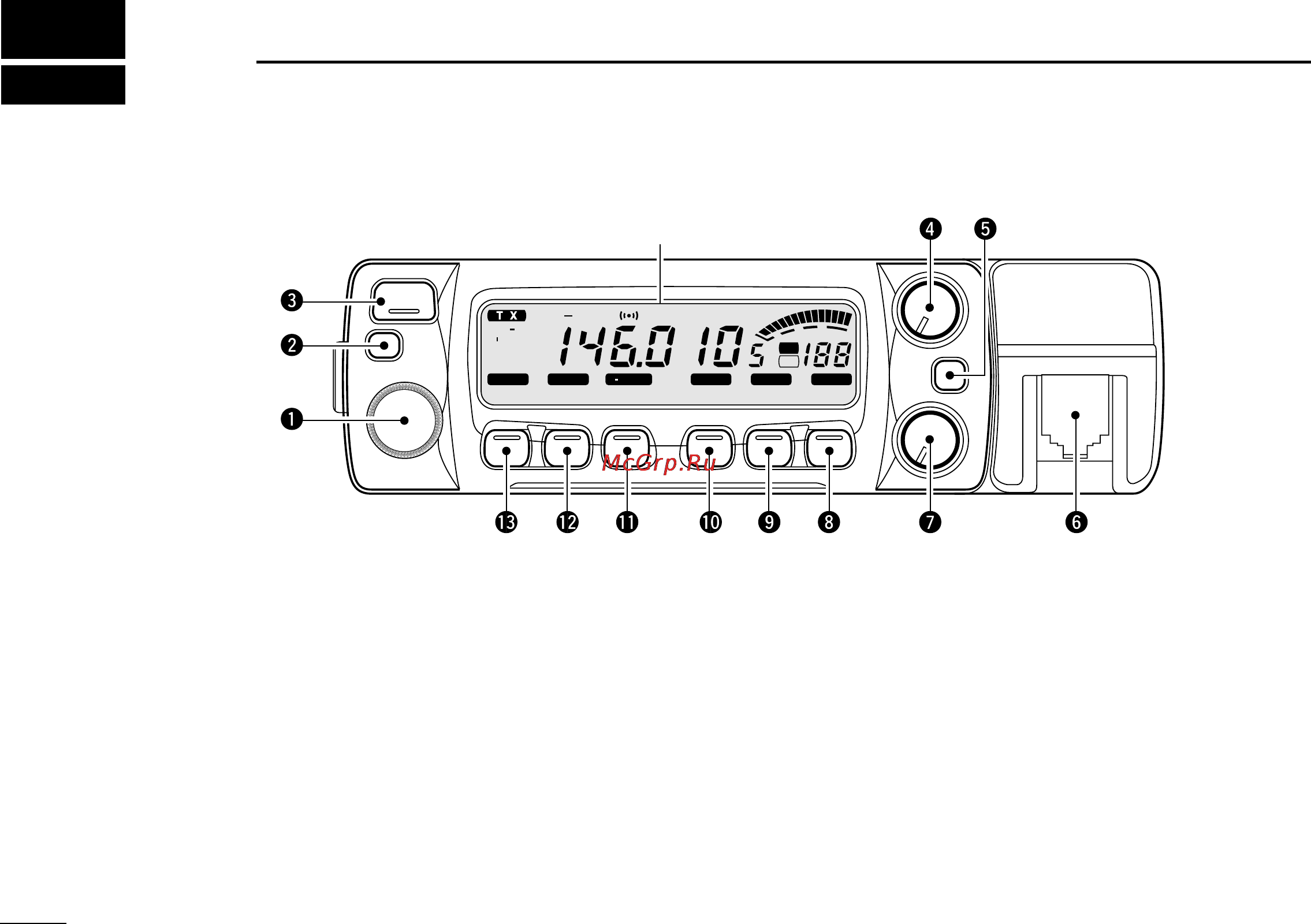

PANEL DESCRIPTION
1
1
q TUNING DIAL
Selects the operating frequency (p. 17), the memory chan-
nel (p. 29), the contents of the set mode display and the
scanning direction. (p. 39)
w SELECT MEMORY/MEMORY WRITE SWITCH
[S.MW(MW)]
➥
Selects a memory channel for programming. (p. 30)
➥
Programs selected memory when pushed and held.
(p. 30)
e BAND SWITCH [BAND]
➥
Toggles between 144 and 430(440) MHz operation.
(p. 15)
➥
When a call channel is selected, this switch toggles be-
tween the 2 available call channels. (p. 34)
r VOLUME CONTROL [VOL]
Adjusts the audio level. (p. 20)
t POWER SWITCH [PWR]
Turns power ON and OFF when pushed for 1 sec.
y MICROPHONE CONNECTOR
Connects the supplied microphone. (p. 11)
u SQUELCH CONTROL [SQL]
Varies the squelch level. (p. 20)
• RF attenuator activates and increases the attenuation when ro-
tated clockwise to the center position and further.
BAND
MW
S.MW
PWR
VOL
SQL
DTMFDUP LOCK
SET
BUSYAOTOTDATATDUP SQL
MONILOW
PRIO T SCAN
M ⁄ CALL TONE
SCAN
V⁄ MHz
MUTE
PRIOLO
MID H I
M
SKIP
1
9
5
Function display (p. 3)
■ Front panel
