Icom IC-207H [16/80] I microphone connection
![Icom IC-207H [16/80] I microphone connection](/views2/1074416/page16/bg10.png)
2
INSTALLATION
11

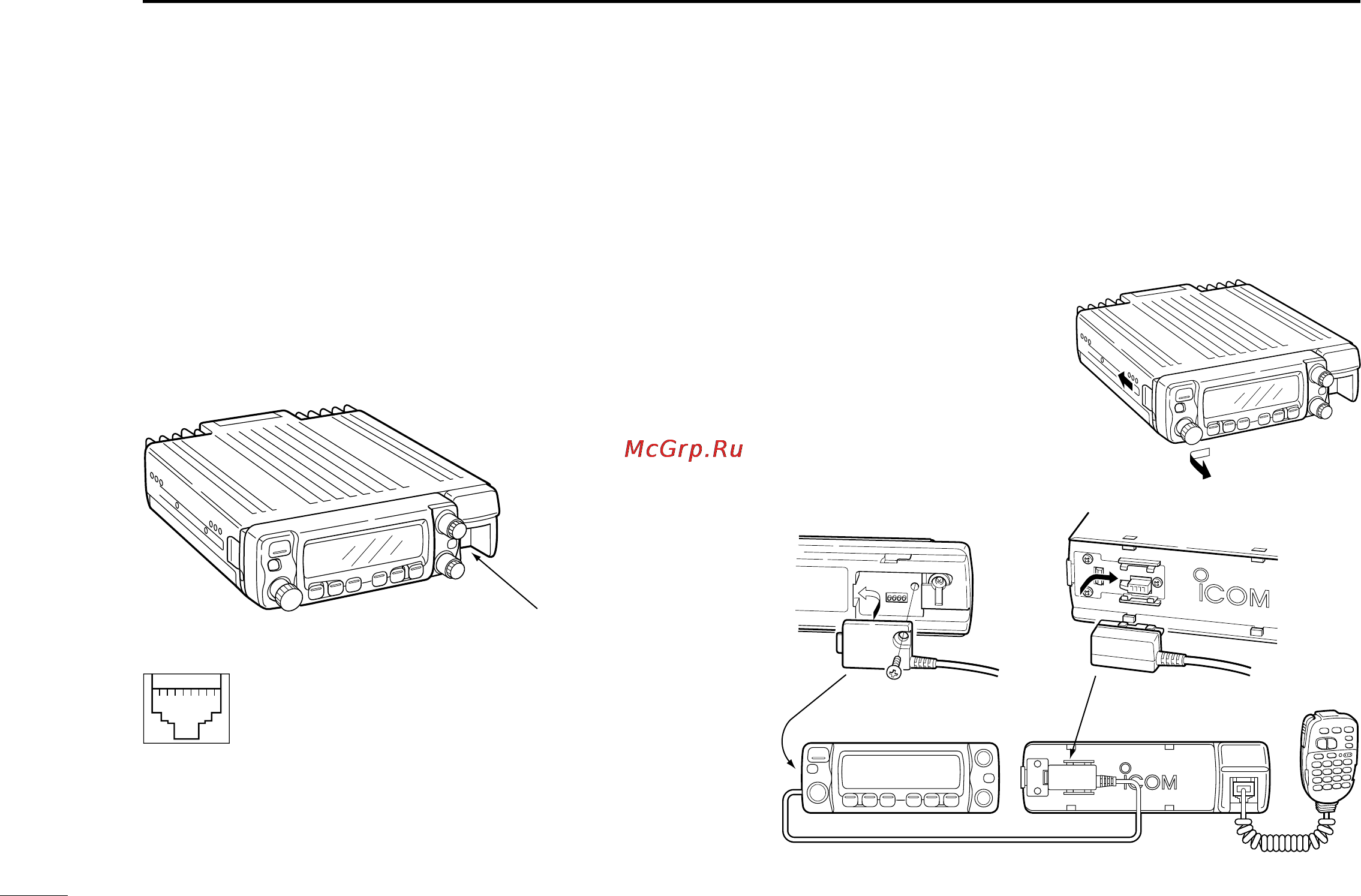

■ Microphone connection
The microphone connector is located behind the front panel.
Connect the supplied microphone as follows:
➀ Slide the supplied microphone cable connector (and at-
tached microphone) into the microphone jack on the main
body of the transceiver until it clicks into place.
➁ To remove the microphone, push the release lever on the
bottom of the microphone cable connector.
■ Separate installation
Using an optional OPC-600/601
SEPARATION CABLE
, the front
panel can be separated from the main body, doubling as a re-
mote controller.
➀ Detach the front panel as
at right.
➁ Connect a separation
cable between the front
panel and main body
using the supplied screws
as illustrated below.
Connect microphone
here
Rear of front panel Main body
OPC-600 or OPC-601
➀ 8 V OUT
➁ Freq. up/down
➂ 8 V control IN
➃ PTT
➄ Mic AF (–)
➅ Mic AF (+)
➆ Ground
➇ Data IN
➇➀
Microphone pin assignments
