Icom IC-207H [58/80] Wireless operation

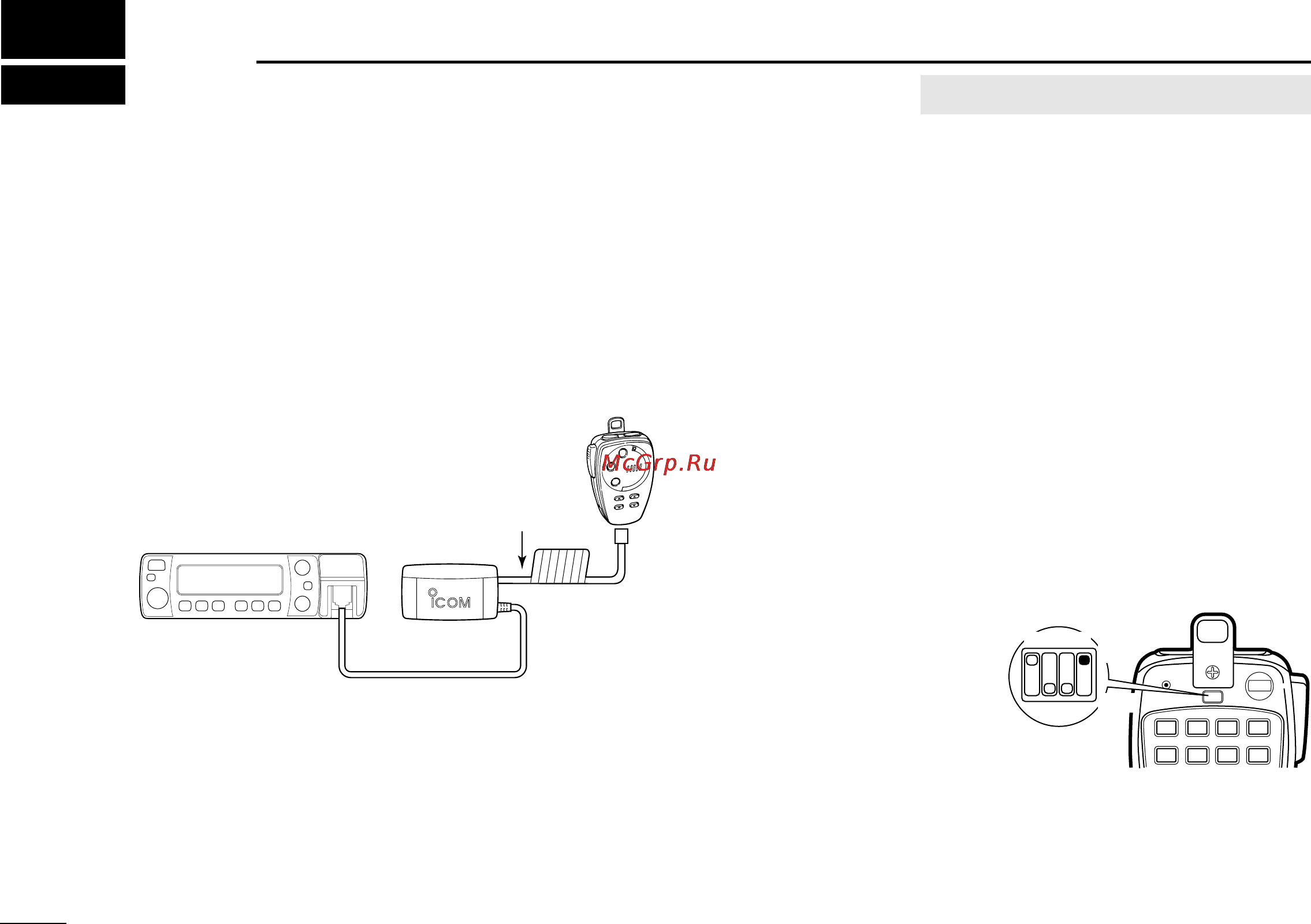

![Icom IC-207H [58/80] Wireless operation](/views2/1074416/page58/bg3a.png)
WIRELESS OPERATION
13
53
■ Connection
Wireless remote control is available when the following op-
tions are used:
• HM-90
WIRELESS MICROPHONE
• EX-1759
INFRARED RECEIVER
D Recommended connection
■ HM-90
WIRELESS MICROPHONE
The HM-90’s internal battery should be charged when the mi-
crophone is not being held.
Charging period: 1.5 hrs. with timer
(or 8 hrs. when battery is exhausted)
Operating period: 12 hrs (Operation : standby= 1 : 4)
D Charging method
Choose one of the following methods:
➥ Connect the cable from the HM-90 to the EX-1759.
DD
Turning the wireless remote ON/OFF
When you use the HM-90 as a wired microphone, the wire-
less remote control circuit can be turned OFF.
LOCK
AFC AFC-OFF PTT-M MW
PGR
CALL
123 A
456 B
MR VFO CLR
C-SQL DTMF D-OFF
HIGH MID LOW SET
The diagram shows that
the wireless remote con-
trol function is turned
ON.
Dip switch
1 2 3 4
ON
OFF
optional EX-1759 and HM-90
IC-207H EX-1759
BC-96
Use the
microphone’s
cable
HM-90
