2
INSTALLATION
12

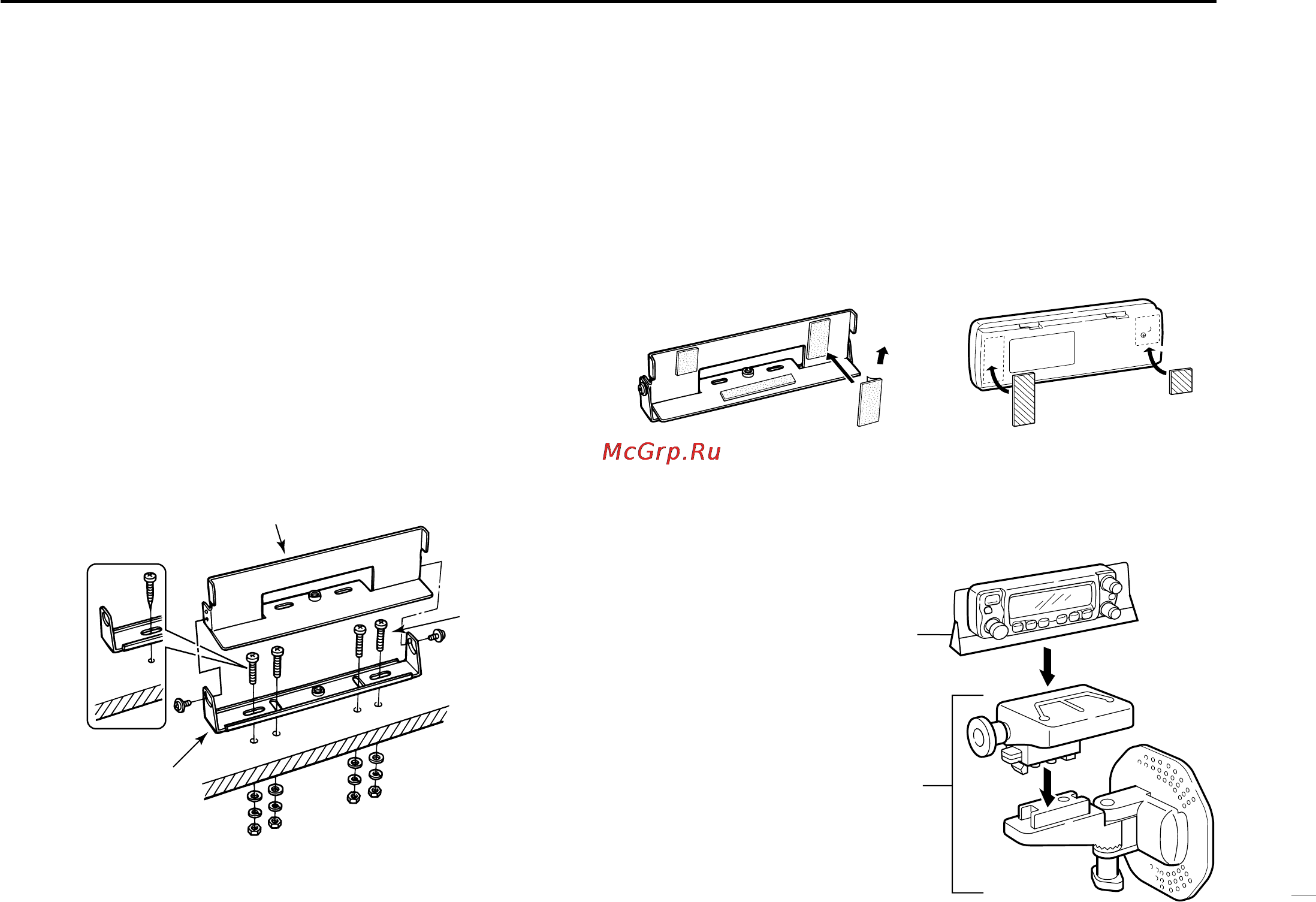

■ Optional MB-58 installation
The optional MB-58
REMOTE CONTROLLER BRACKET
is avail-
able for separate installation.
➀ Drill 2 or 4 holes where the bracket or mounting base is to
be installed, respectively.
• Approx. 4 mm (
1
⁄8 in) when using nuts; approx. 1–2 mm (
1
⁄16 in)
when using self-tapping screws.
➁ Insert the supplied screws, bolts and washers through the
mounting base and tighten.
➂ Adjust the angle for the clearest view of the function dis-
play and tighten 2 screws when the mounting base is used.
Bracket
When using self-
tapping screws.
Mounting
base
Mounting
bolt
➃ Attach the supplied Velcro pads (large) to the remote con-
troller and bracket.
➄ Attach the supplied Velcro pad (small) or rubber pad to the
bracket as shown below; then attach the remote controller.
D When using the MB-65
MB-58 IC-207H remote controller
MB-58
MB-65
Adjust the viewing
angle for maximum
visibility of the func-
tion display.
