9
SCAN OPERATION
39
■ Scan start/stop
D Pre-operation
• Common setting: scan resume condition. (p. 43)
• For programmed scan: program the scan edges. (p. 40)
• For memory scan: program 2 or more memory chan-
nels; set memory skip settings, if de-
sired. (p. 42)
D Operation
➀ Push [BAND] to select a band, if necessary.
➁ Select VFO mode for full/programmed scan with the
[V/MHz] switch; or memory mode for memory scan with the
[M/CALL] switch.
➂ Set the squelch to the point where noise is muted.
➃ Push for 1 sec. to start the scan.
• When the tone squelch is in use, starts a normal scan—
not tone scan.
• To change the scanning direction, rotate the tuning dial.

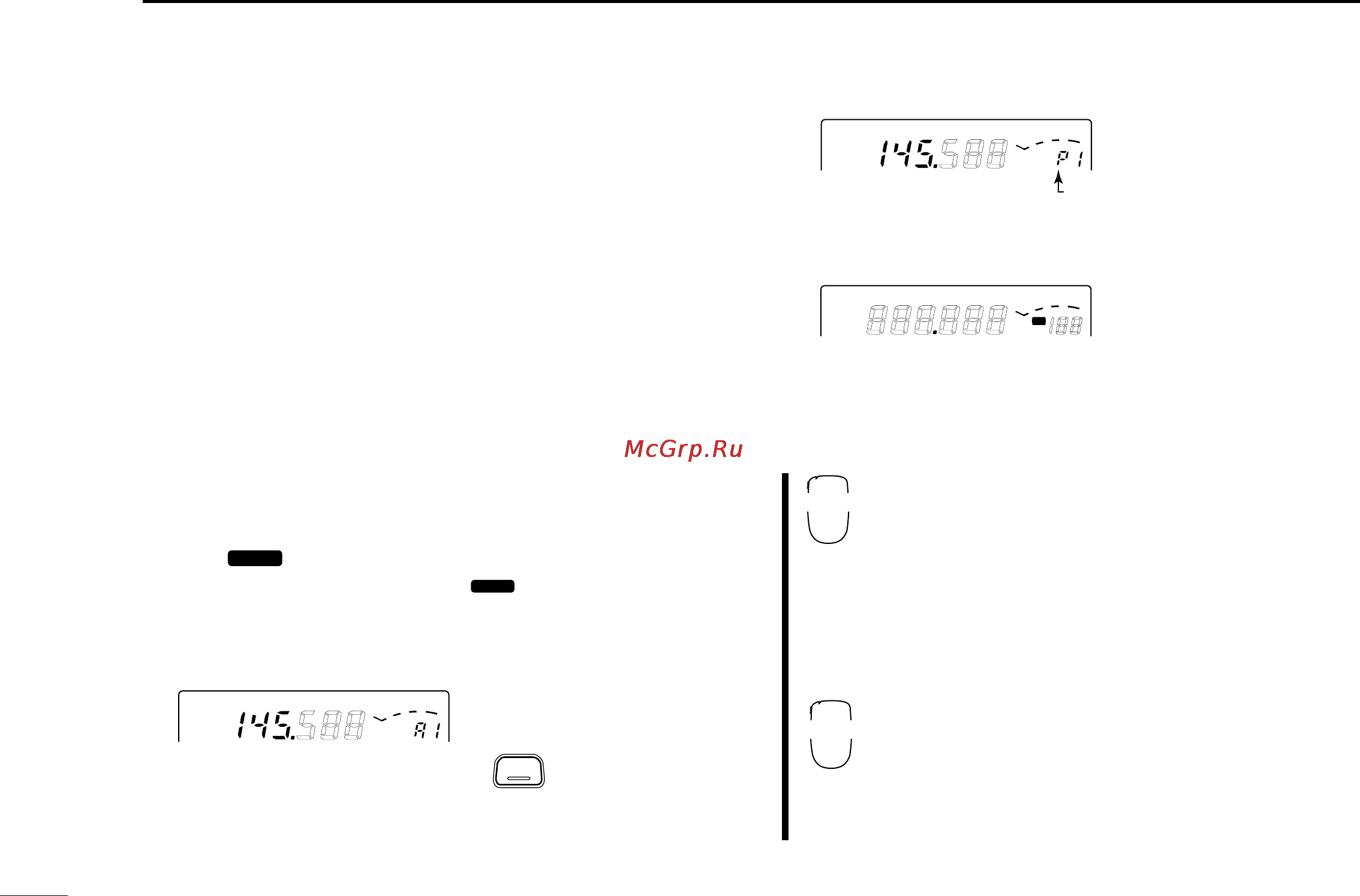

• The memory channel readout indicates the scan type as follows:
SCAN
SCAN
➄ To select the scan range while operating full/programmed
scan, push [BAND] several times.
➅ To stop the scan, push [VMHz].
Ä Push [BAND] to select the desired band, if nec-
essary.
Å Push [VFO] to select VFO mode for full/pro-
grammed scan; or push [MR] to select memory
mode for memory scan.
Ç Push [HYSQL] or [AZSQL] one or more times
to set the squelch just closed.
É Push [➂SCAN] to start the scan.
• [Y]/[Z] also start the scan when pushed and held.
Ñ To select the scan range while operating
full/programmed scan, push [BAND] several
times.
Ö To stop the scan push [ECLR].
During full scan
Push
to select full scans
and scan edge
pairs in sequence.
BAND
HI
1
9
5
During programmed scan
Indicates scan edge channels.
• P1 stands for 1A/1b.
• P1 to P5 are available when
they are programmed.
HI
1
9
5
During memory scan
HI
M
1
9
5
SCAN
2
BAND
