7
CALL CHANNEL OPERATION
35
■ Programming a call channel
In addition to an operating frequency, duplex information and
subaudible tone information (tone encoder or tone squelch
ON/OFF and its frequency) can be programmed into a call
channel.
➀ Push [BAND] to select a band, if necessary.
➁ Select the call channel by pushing [M/CALL] once or twice.
( “C1” or “C2” appears); then push [BAND] to change the
call channel, if desired.
➂ Set the desired frequency in VFO mode:
➥ Push [VFO] to select VFO mode.
➥ Set the frequency using the keypad.
➥ Set other data (e.g. offset frequency, duplex direction, subaudi-
ble tone encoder ON/OFF and its frequency), if required.
➃ Push [(S.MW)MW] for 1 sec. to program.

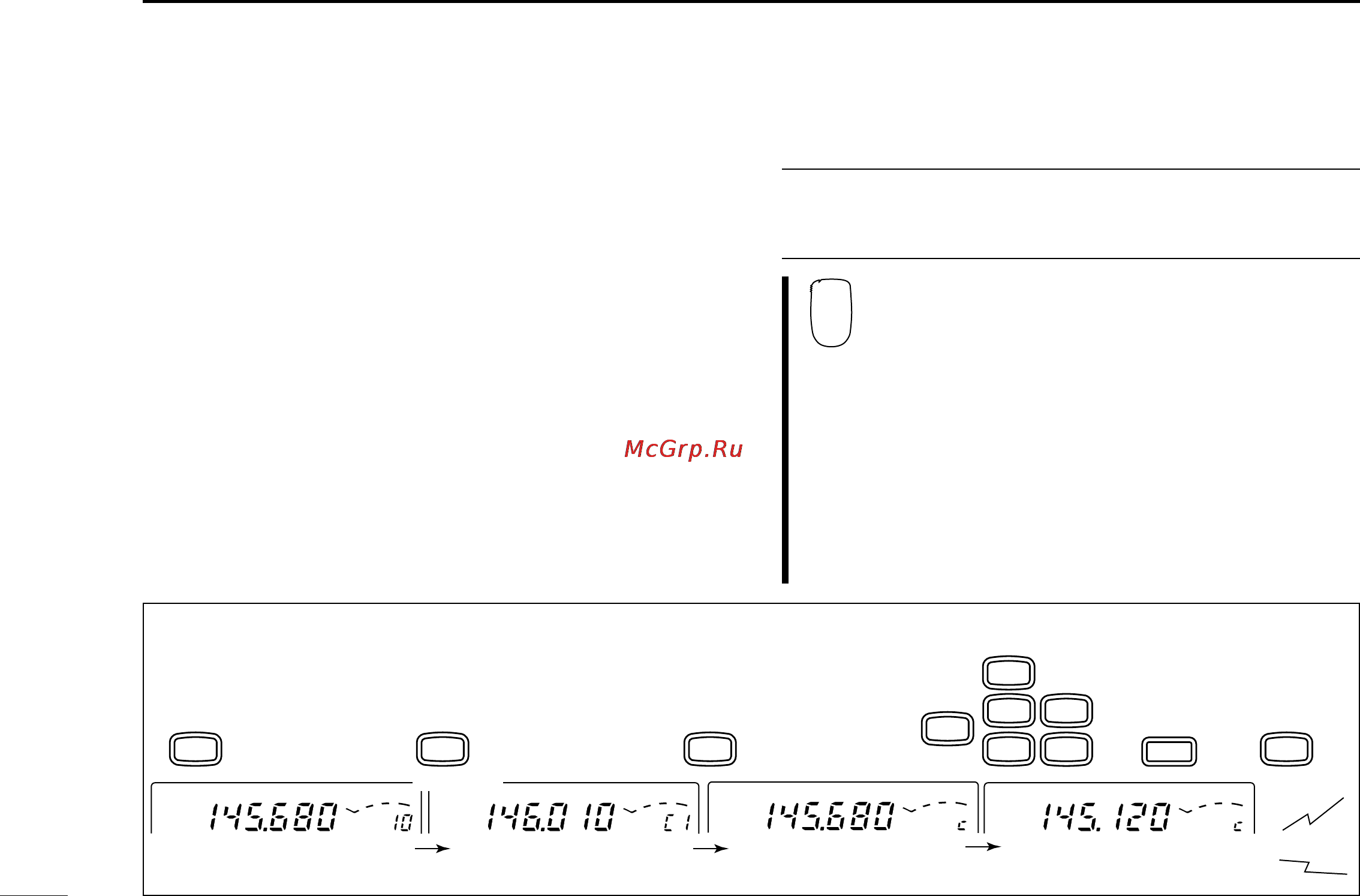

[EXAMPLE]: Programming 145.120 MHz into the VHF call channel via the microphone.
✔ CONVENIENT
The call channel can also be programmed from the VFO di-
rectly (similar to memory programming).
Ä Push [BAND] to select the desired band, if nec-
essary.
Å Push [(MR)CALL] for 1 sec. to select a call
channel, then push [BAND] to change the call
channel, if desired.
Ç Set the desired frequency in VFO mode:
• Push [VFO] to select VFO mode.
• Set the desired frequency using the keypad.
• Set other data, if required.
É Push [FUNC] then [EMW] for 1 sec. to pro-
gram.
HI
1
9
5
HI
1
9
5
BAND VFO
2
SCAN
5
MID
1
MONI
1
MONI
4
HIGH
C
ENT
MW
FUNC
A
CLR
CALL
MR
Call channel VFO mode then
for 1 sec.
for 1 sec.
Beep
Beep
Beep
HI
1
9
5
HI
1
9
5
MW
A
