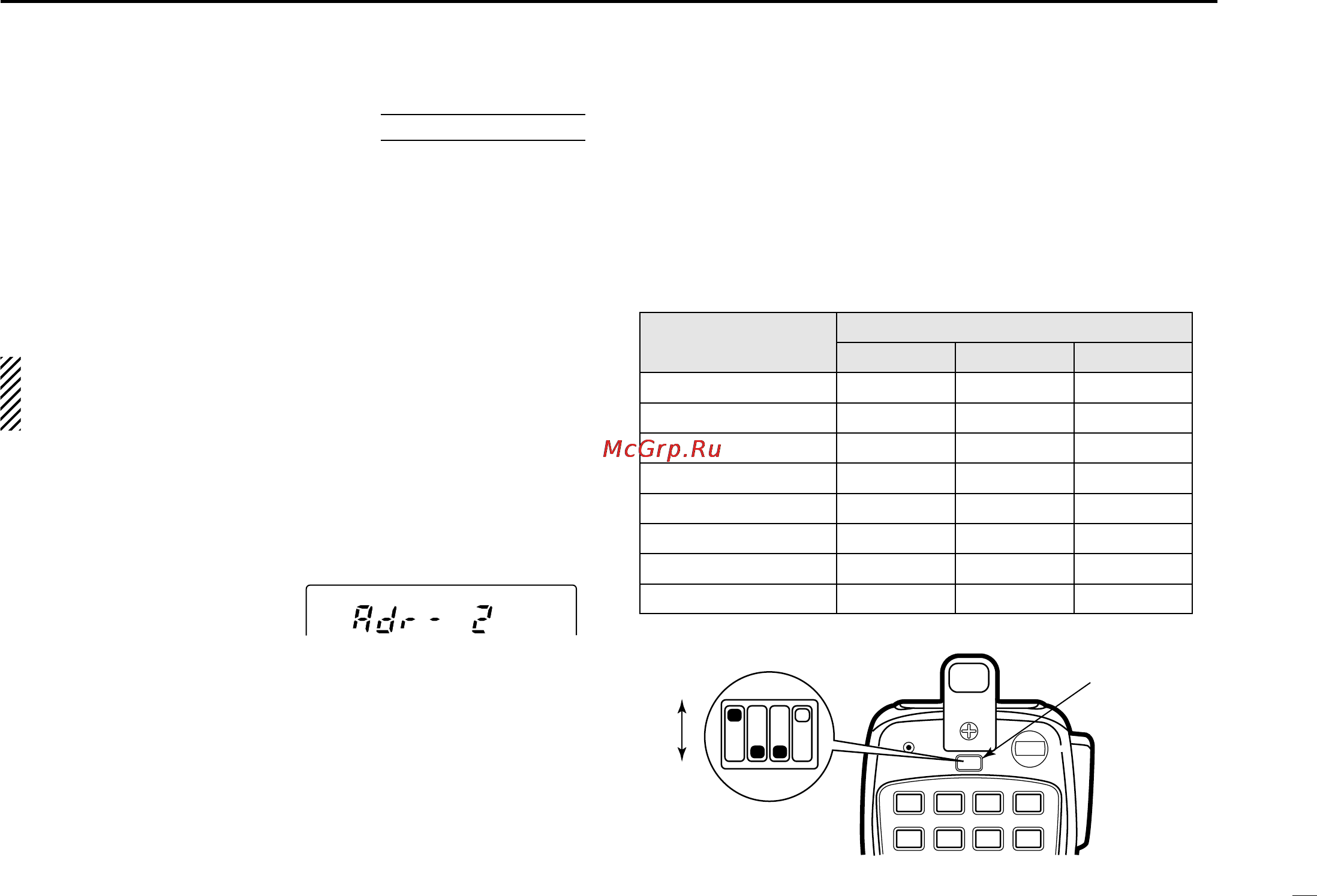

13
WIRELESS OPERATION
58
■ Microphone
address
The transceiver has 8 possible microphone addresses (in-
cluding OFF) to help prevent interference from other HM-90
WIRELESS MICROPHONES
. Set both the microphone address
and microphone dip switch to the same value as follows.
NOTE: When the supplied microphone is connected, the
transceiver rejects control signals from the HM-90 even
when the microphone address is matched.
D Microphone address
➀ Push [PWR] to turn power OFF.
➁ While pushing [SET], turn power ON to enter initial set
mode.
➂ Push [SET] a few times to
select the “Adr” display as
shown at right.
➃ Rotate the tuning dial to
set the microphone ad-
dress to 0–7 or to turn the microphone control OFF.
• When “Adr-oF” is selected, the transceiver rejects all control sig-
nals from the HM-90.
➄ Push [PWR] momentarily to exit initial set mode.
USING
INITIAL SET MODE
The display shows the mi-
crophone address is set to 2.
D Microphone dip switch
➀ Remove the switch cover from the microphone rear panel.
➁ Set the microphone dip switch and the microphone ad-
dress to the same value as shown below.
➂ Replace the switch cover.
MICROPHONE
ADDRESS
DIP SWITCH
S1–1 S1–2 S1–3
Adr-0 OFF OFF OFF
Adr-1 (default) ON OFF OFF
Adr-2 OFF ON OFF
Adr-3 ON ON OFF
Adr-4 OFF OFF ON
Adr-5 ON OFF ON
Adr-6 OFF ON ON
Adr-7 ON ON ON
LOCK
AFC AFC-OFF PTT-M MW
PGR
CALL
123A
456B
MR VFO CLR
C-SQL DTMF D-OFF
HIGH MID LOW SET
Dip switch
ON
OFF
1 2 3
(S1)
Switch cover
