5
REPEATER OPERATION
26
■ Subaudible tones
➀ Push [BAND] to select the desired band.
➁ Select the mode/channel you wish to set the subaudible
tone frequency to, such as VFO mode or memory/call
channel.
➂ Push [SET] one or more times until “T” and “rT” appears
for repeater use; or until “T SQL” and “CT” appears for tone
squelch or pocket beep use.
• Push [MONI] to reverse the order of selection.
• Cancel the DTMF memory encoder function in advance. (p. 48)
➃ Rotate the tuning dial to select and set the desired fre-
quency.
➄ Push [V/MHz] to exit set mode.
NOTE: The subaudible tone frequency can be set in a
memory channel temporarily. However, the set contents
are cleared once the memory/call mode is selected. To
store the tone frequency permanently, overwrite the chan-
nel information.
USING
SET MODE
Separate setting for each band

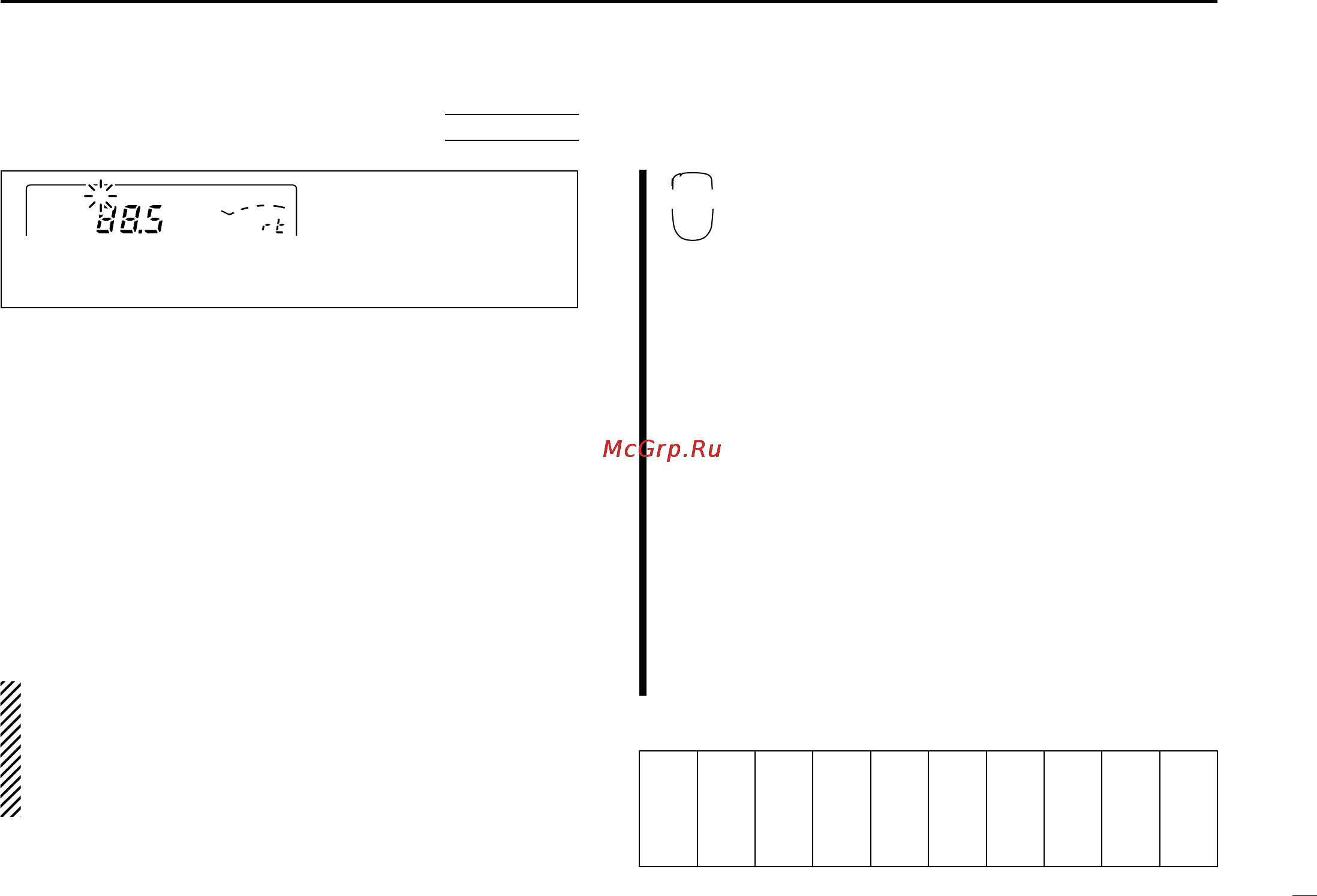

The display shows that an
88.5 Hz subaudible tone
frequency is set for re-
peater use.
T
HI
1
9
5
Ä Push [BAND] to select the desired band, if nec-
essary.
Å Set the mode/channel you wish to set the sub-
audible tone frequency to, such as VFO mode,
memory/call channel or scratch pad memory.
• The subaudible tone frequency is independently pro-
grammed into each mode or channel.
Ç Push [F SET] one or more times until “T” and
“rT” appears for repeater use; or until “T SQL”
and “CT” appears for tone squelch or pocket
beep use.
• Pushing [GENT] reverses the order of selection.
• Cancel the DTMF memory encoder function in ad-
vance. (p. 48)
É Push [Y] or [Z] to select and set the desired
frequency.
• Pushing and holding [Y] or [Z] changes the fre-
quency continuously.
Ñ Push [ECLR] to exit set mode.
• Subaudible tone frequency list (unit: Hz)
67.0
79.7 94.8 110.9 131.8 156.7 171.3 186.2
69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9
71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8
74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6
77.0
91.5 107.2 127.3 151.4 167.9 183.5 199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
SET
