1
PANEL DESCRIPTION
3
q TRANSMIT INDICATOR (p.22)
➥
Appears while transmitting.
➥
Flashes while transmitting with the one-touch PTT func-
tion (p. 23).
w DUPLEX INDICATORS (p. 24)
“DUP–” or “DUP” appears during semi-duplex operation
(repeater operation).
e TONE INDICATORS
➥
“T” appears while the subaudible tone encoder is in
use. (p. 26)
➥
“T SQL” appears while the tone squelch function is in
use. (p. 51)
➥
“T SQLS” appears while the pocket beep function is
in use. (p. 50)
r TOT (TIME-OUT TIMER) INDICATOR (p. 59)
Appears while the time-out timer has been activated.
t AUTO POWER-OFF INDICATOR (p. 60)
Appears while the auto power-off function is in use.
y BUSY INDICATOR (p. 20)
Appears while a signal is being received or the squelch is
open ([MONI] is being pushed).
u FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc.
• The decimal point of the frequency flashes while scanning.
(p. 39)
•“d” appears in place of the 100 MHz digit while the DTMF mem-
ory function is in use.
DTMFDUP LOCK
SET
BUSYAOTOTTDUP SQL
MONILOW
PRIO T SCAN
M ⁄ CALL TONE
SCAN
V⁄ MHz
MUTE
PRIOLO
MID H I
M
SKIP
1
9
5

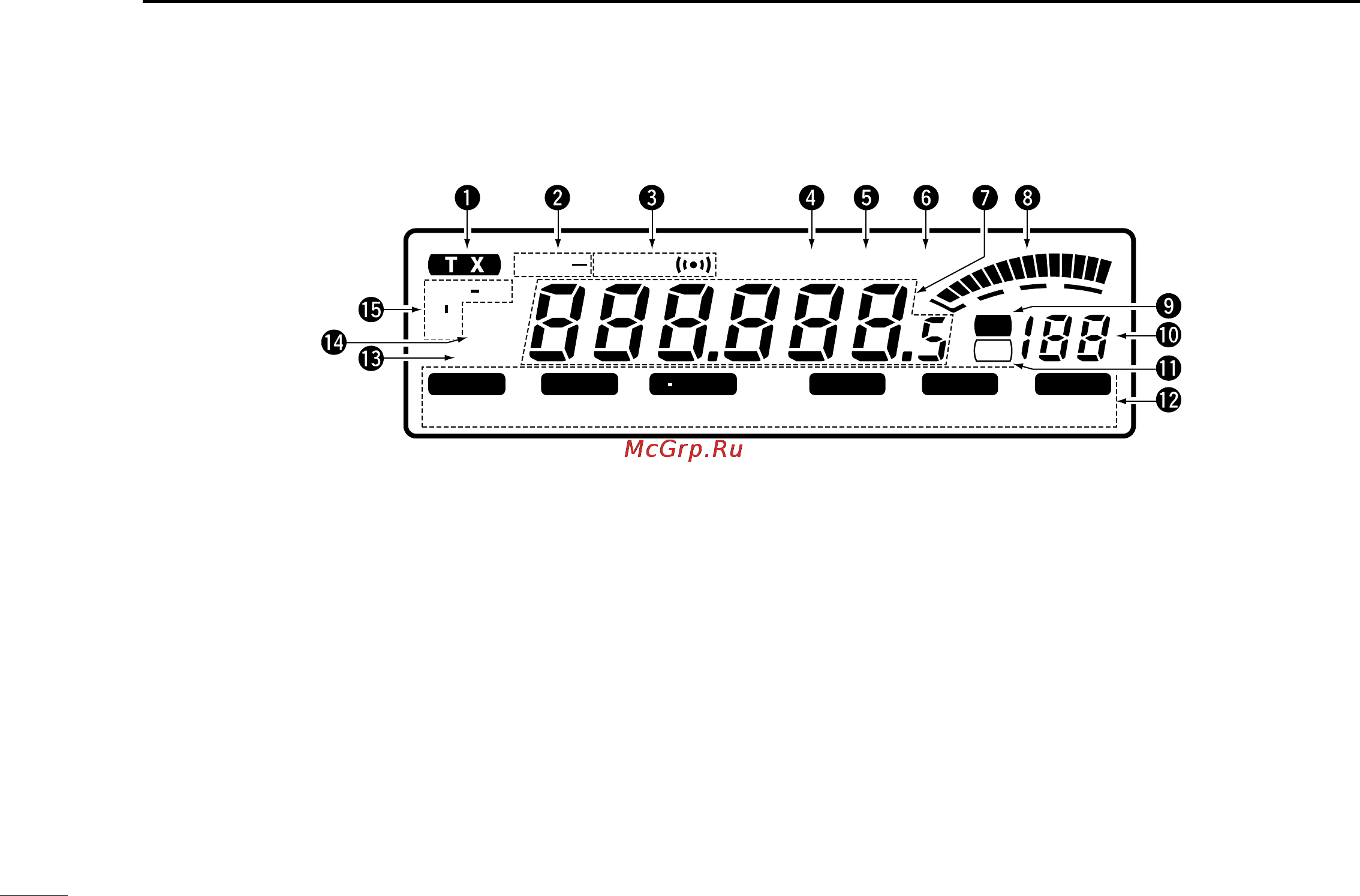

■ Function display
