4
BASIC OPERATION
22
■ Transmitting
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
NOTE: To prevent interference, listen on the frequency be-
fore transmitting by pushing [MONI] or [➀MONI] on the mi-
crophone.
➀ Push [BAND] one or more times to select the operating
band.
➁ Set the operating frequency. (pgs. 15–19)
• Select output power if desired. See section at right for details.
➂ Push and hold [PTT] to transmit.
•“$” appears.
• The S/RF indicator shows the output power selection.
• The operating frequency, etc. are automatically programmed into
a scratch pad memory. See p. 36 for details.
• One-touch PTT function is available. See p. 23 for details.
➃ Speak into the microphone using your normal voice level.
• DO NOT hold the microphone too close to your mouth or speak
too loudly. This may distort the signal.
➄ Release [PTT] to return to receive.
■ Selecting the output power
The transceiver has 4 output power levels to suit your oper-
ating requirements. Low output powers during short-distance
communications may reduce the possibility of interference to
other stations and will reduce current consumption.
➀ Push [BAND] one or more times to select the operating
band.
➁ Push [LOW] one or more times to select the desired out-
put power.
• The output power can be changed while transmitting.

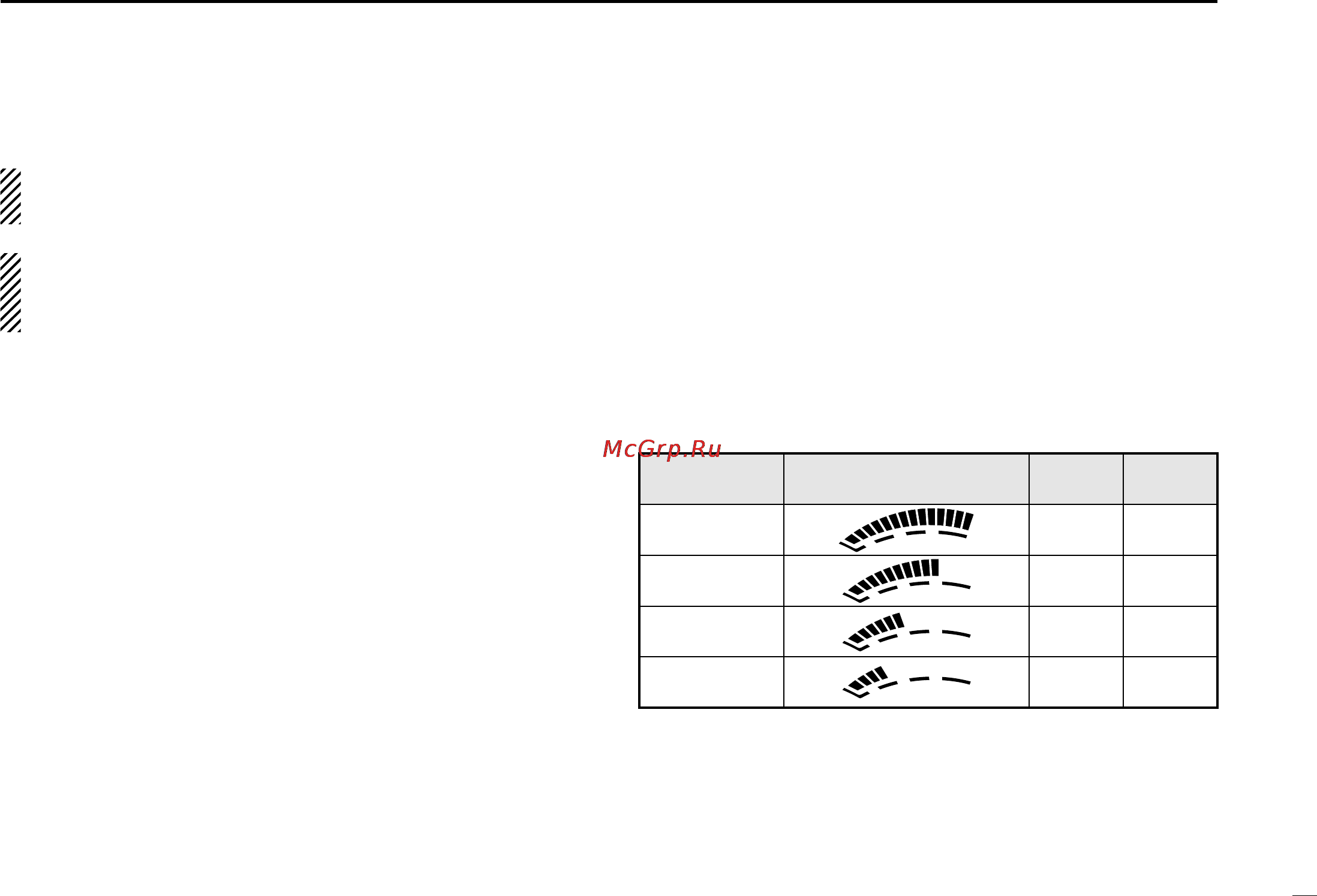

POWER
SELECTION
S/RF INDICATOR VHF UHF
HI 50 W 35 W
MID-HI 20 W 20 W
MID-LO 10 W 10 W
LO 5 W 5 W
1
9
5
1
9
5
1
9
5
1
9
5
