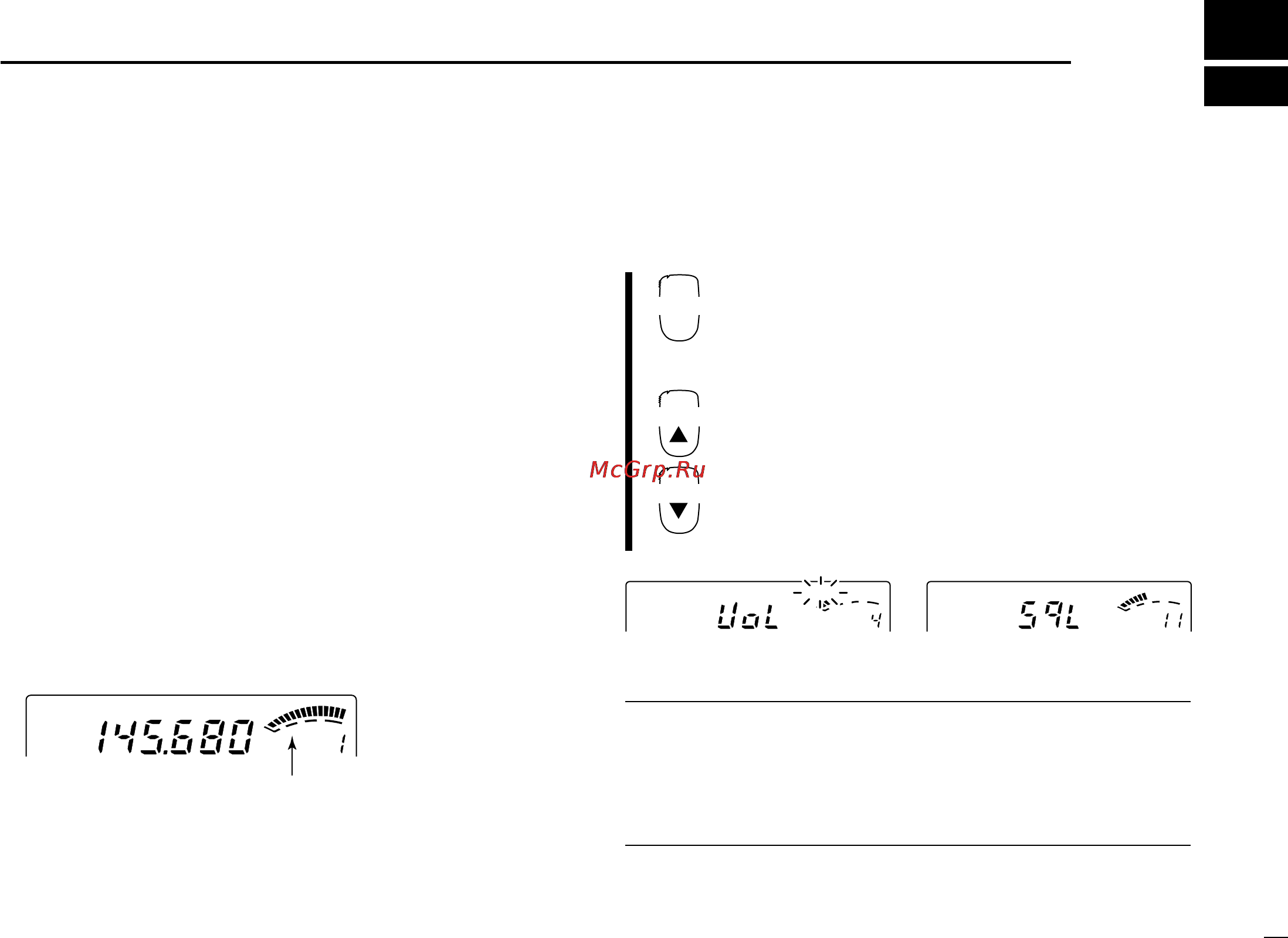

BASIC OPERATION
4
20
■ Receiving
➀ Push [PWR] for 1 sec. to turn power ON.
➁ Push [BAND] to select a band.
➂ Set the audio level.
➥ Push [MONI] to open the squelch.
➥ Rotate the [VOL] control to adjust the audio output level.
➥ Push [MONI] again to close the squelch.
➃ Set the squelch level.
➥ Rotate [SQL] fully counterclockwise in advance.
➥ Rotate [SQL] clockwise until the noise just disappears.
➥ When interference is received, rotate [SQL] clockwise
again for attenuator operation.
➄ Set the operating frequency. (pgs. 15–19)
➅ When receiving a signal on the set frequency, squelch
opens and the transceiver emits audio.
•“BUSY” appears and the S/RF indicator shows the relative signal
strength for a received signal.
When receiving a signal on VHF.
BUSY
HI
1
9
5
The volume and squelch levels can be adjusted via the mi-
crophone. However, levels return to the front panel setting
when power is turned OFF or a front panel control is adjusted.
Ä Push [PWR] on the transceiver for 1 sec. to turn
power ON.
Å Set the audio levels.
➥ Select the desired band.
➥ Push [➀MONI], then push [BZVOL] or
[IYVOL] to adjust the audio level.
➥ Push [➀MONI] again to close the squelch.
Ç Set the squelch level using [AZSQL] or
[HYSQL], if desired.
É Set the operating frequency. (pgs. 15–19)
✔ CONVENIENT
RF attenuator: The transceiver has an RF attenuator related
to the [SQL] setting. The attenuator is automatically activated
when [SQL] is rotated further than the 12 o’clock position.
Approx. 10 dB attenuation is obtained at full rotation.
Appears while setting volume
Appears while setting squelch
BUSY
HI
1
9
5
HI
1
9
5
BAND
VOL
VOL
