8
SCRATCH PAD MEMORY
37
➀ Push [BAND] to select a band, if necessary.
➁ Select a call channel by pushing [M/CALL] once or twice.
• A large “C” appears.
➂ Rotate the tuning dial to select the desired scratch pad
memory.
• One of “L1”–“L5” appears.
➃ Push [(S.MW)MW] momentarily.
• “” flashes to indicate VFO as the transferring channel.
➄ Rotate the tuning dial to select the desired memory chan-
nel if required.
➅ Push and hold [(S.MW)MW] to transfer.
Ä Push [BAND] to select the desired band, if nec-
essary.
Å Push [(MR)CALL] for 1 sec. to select the call
channel.
Ç Push [Z ] one or more times to select the de-
sired scratch pad memory.
É Push [FUNC] then [EMW] momentarily.
• “” flashes to indicate VFO as the transferring
channel.
Ñ Push [Y] or [Z] to select the desired memory
channel if required.
Ö Push [FUNC] then [EMW] for 1 sec. to transfer.
Ä Push [BAND] to select the desired band, if nec-
essary.
Å Push and hold [(MR)CALL] to select a call chan-
nel.
Ç Push [Z] one or more times to select a duplex
scratch pad memory.
• Once entering a scratch pad memory, [Y] can also
be used for selection.
É Push [MR] or [VFO] to exit the scratch pad
memory.

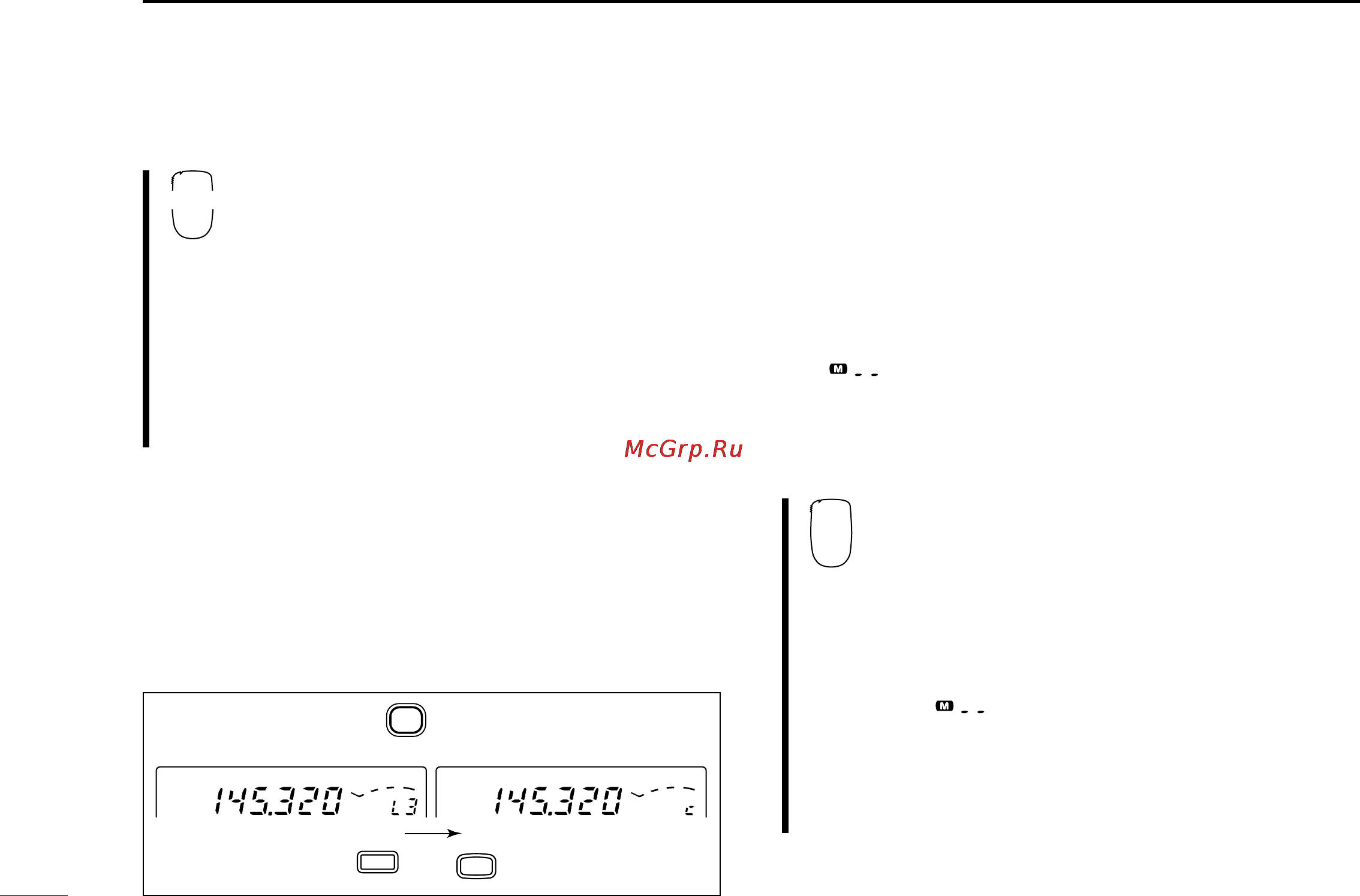

■ Transferring scratch pad
memory contents
Transferring scratch pad memory contents to the VFO is done
similarly to transferring regular memory/call channel contents.
Push for 1 sec.
then
MW
FUNC
A
CLR
MW
S.MW
HI
1
9
5
1
9
5
HI
CALL
MW
