OTHER FUNCTIONS
14
59
■ Beep tones on/off
You can select silent operation by turning beep tones OFF or
you can select to have confirmation beeps sound at the push
of a switch by turning beep tones ON.
➀ Push [PWR] to turn power OFF.
➁ While pushing [SET], turn power ON to enter initial set
mode.
➂ Push [SET] one or more times until “bEP” appears.
• Pushing [MONI] reverses the order of selection.
➃ Rotate the tuning dial to
select the condition.
•“bEP-oF”: Beep tones are
turned OFF.
•“bEP-on”: Beep tones are
turned ON.
➄ Push [PWR] momentarily to exit initial set mode.
■ Time-out timer
To prevent accidental prolonged transmission with the one-
touch PTT function, etc., the transceiver has a time-out timer.
This timer cuts a transmission OFF after 3, 5, 15 or 30 min. of
continuous transmission. This timer can be cancelled (de-
fault).
Approx. 10 sec. before the time-out timer passes, the trans-
ceiver emits a beep tone as a warning.
➀ Push [PWR] to turn power OFF.
➁ While pushing [SET], turn power ON to enter initial set
mode.
➂ Push [SET] one or more times until “tot” appears.
• Pushing [MONI] reverses the order of selection.
➃ Rotate the tuning dial to select the desired time-out time or
turn the timer OFF (“oF”).
➄ Push [PWR] momentarily to exit initial set mode.
USING
INITIAL SET MODE
USING
INITIAL SET MODE

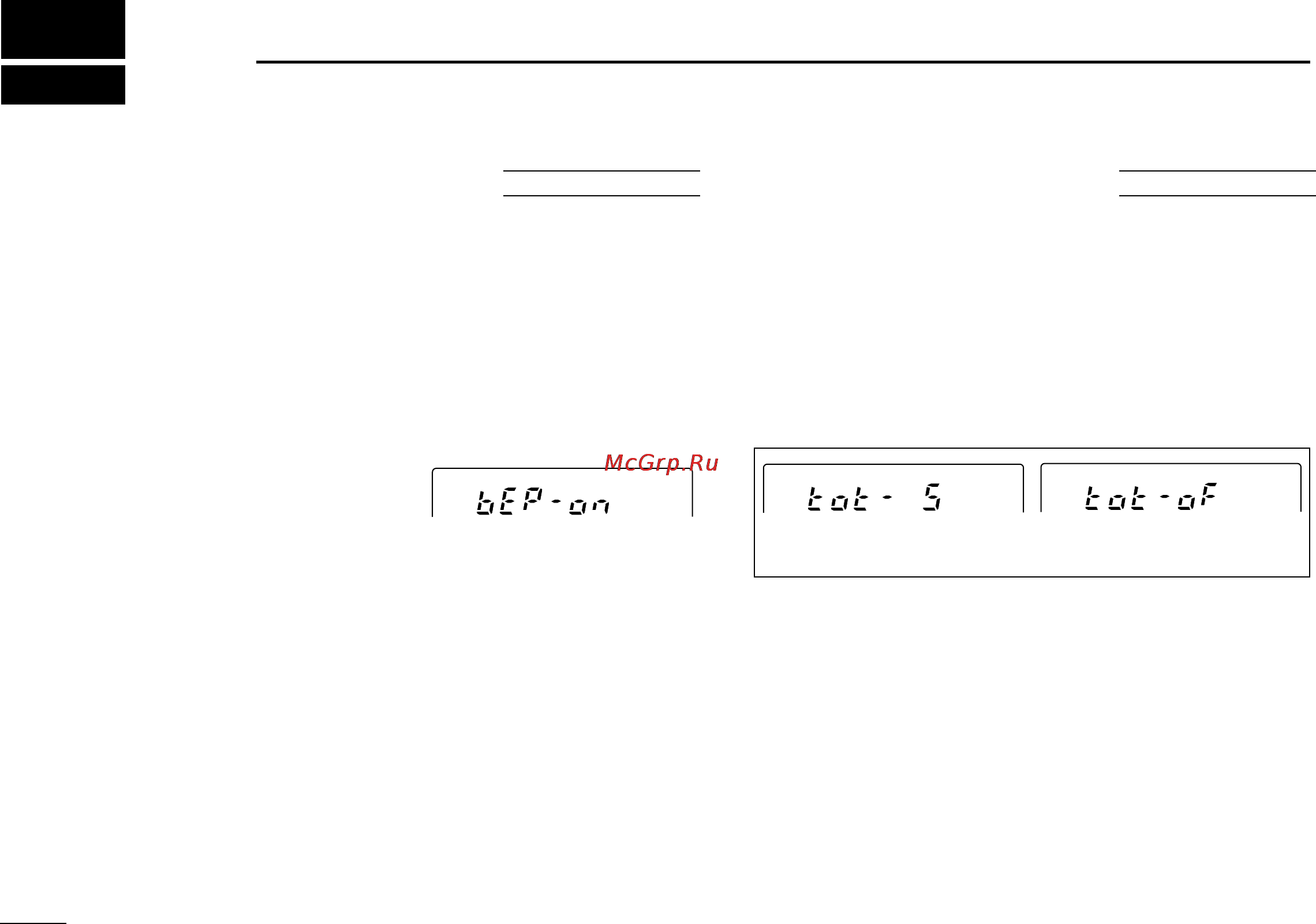

The display shows that the 5
min. timer is selected.
The display shows that the
time-out timer is cancelled.
TOT
The display shows that the
beep tones are turned ON.
