Icom IC-207H [7/80] Panel description
![Icom IC-207H [7/80] Panel description](/views2/1074416/page7/bg7.png)
1
PANEL DESCRIPTION
2
i SET/LOCK SWITCH [SET(LOCK)]
➥
Selects SET mode when pushed. (p. 70)
➥
Toggles the lock function ON and OFF when pushed
and held. (p. 16)
o MONITOR/DTMF SWITCH [MONI(DTMF)]
➥
Toggles squelch opened and closed when pushed.
(pgs. 20, 24)
➥
Turns the DTMF memory encoder ON and OFF for auto
patch operation when pushed and held. (p. 46)
!0 OUTPUT POWER/DUPLEX SWITCH [LOW(DUP)]
➥
Each push changes the output power selection. (p. 22)
• There are 4 output powers available: low, mid-low, mid-high
and high.
➥
Push and hold to select a duplex setting. (p. 24)
• There are 3 duplex settings available: minus duplex (“– DUP”
appears, plus duplex (“+ DUP” appears) and simplex.
!1 TONE/TONE SCAN SWITCH [TONE(T-SCAN)]
➥
Each push selects a tone function. (p. 50)
• Tone encoder, pocket beep, tone squelch or tone function
OFF can be selected.
➥
Push and hold to start/stop the tone scan function.
(p. 52)
!2 MEMORY/CALL CHANNEL SWITCH [M/CALL(PRIO)]
➥
Selects and toggles memory mode or a call channel
(pgs. 29, 34)
➥
Activates the priority watch function when pushed and
held. (p. 44)
!3 VFO/MHz SWITCH [V/MHz(SCAN)]
➥
Selects and toggles VFO mode and 1 MHz tuning dis-
play. (p. 17)
➥
Starts a scan when pushed and held. (p. 39)

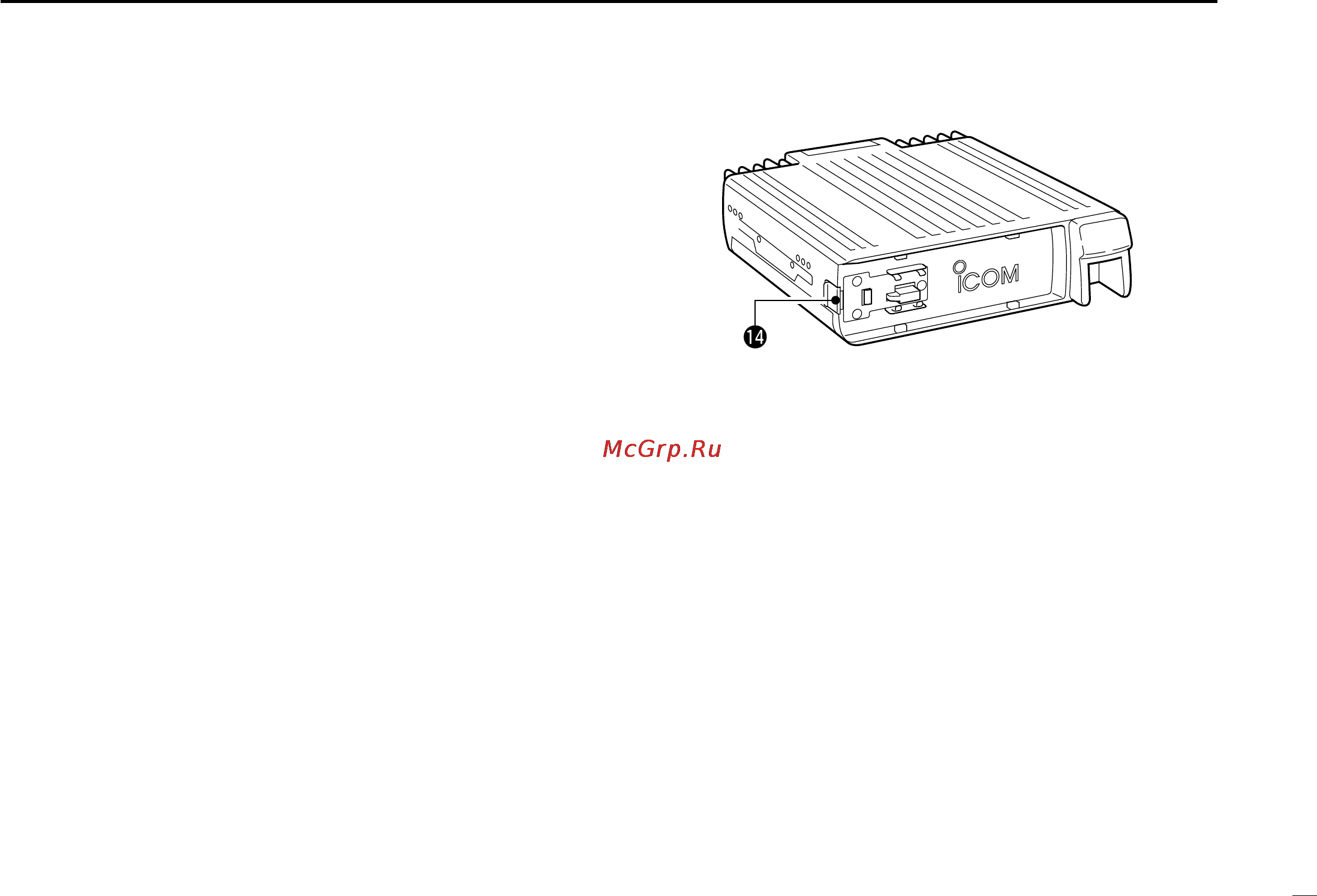

!4 FRONT PANEL RELEASE LATCH
While pushing this latch, slide the front panel to the left to
remove it.
