INSTALLATION
13
■ Battery connection ■ DC power supply connection
Use a 13.8 V DC power supply with more than 12 A capabil-
ity. An optional IC-PS30
DC POWER SUPPLY
is available for
using the transceiver with a DC power supply in your home.
Make sure the ground terminal of the DC power supply is
grounded.
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power con-
nections.
Attach a rubber grommet when passing the DC power
cable through a metal plate to prevent short circuits.

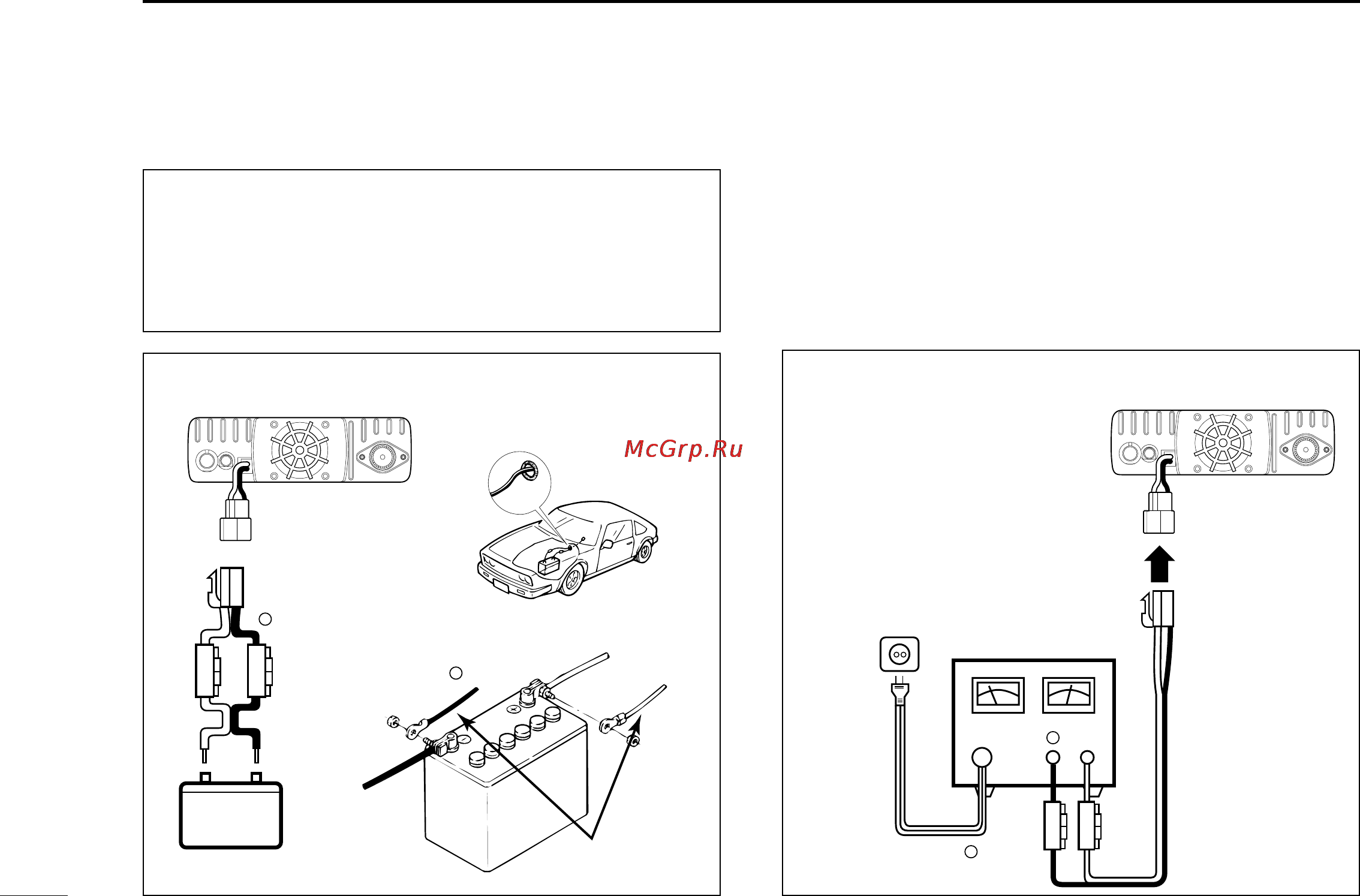

• CONNECTING TO A DC POWER SOURCE
See p. 69 for fuse replacement.
Fuses
20 A
black
red⊕
red
Grommet
⊕
−
black
−
12 V
Supplied
DC power cable
• CONNECTING TO A DC POWER SUPPLY
See p.69 for fuse replacement.
DC power
supply 13.8 V
to an
AC
outlet
Fuses
20 A
black
red⊕
−
⊕
−
