2
INSTALLATION
14

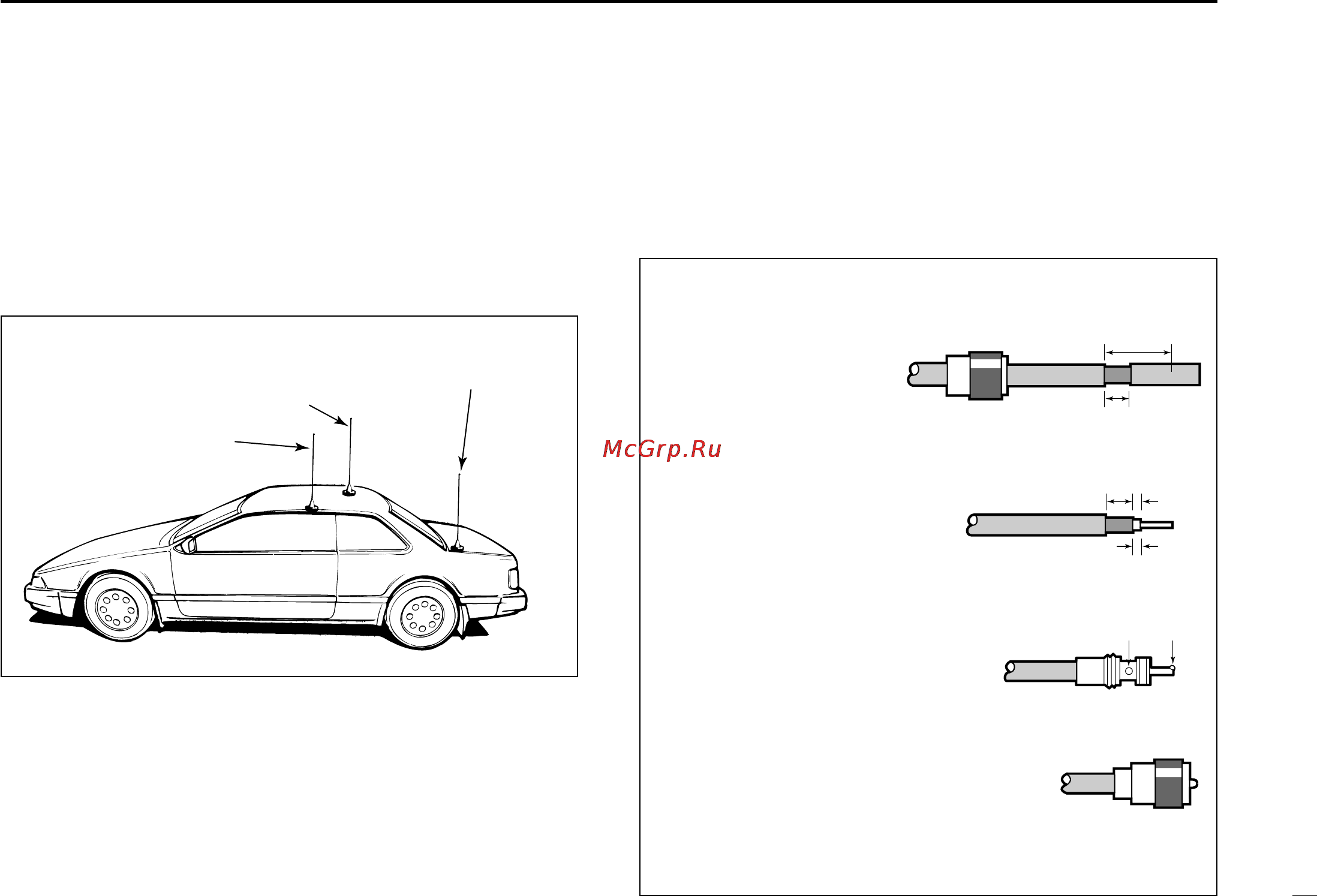

■ Antenna installation
D Antenna location
To obtain maximum performance from the transceiver, select
a high-quality antenna and mount it in a good location. A non-
radial antenna should be used when using a magnetic mount.
D Antenna splitter
You can use a dual band antenna because a duplexer is in-
stalled in the transceiver. However, an external duplexer must
be connected when using a separate antenna for each band.
D Antenna connector
The antenna uses a PL-259 connector.
30 mm
10 mm (soft solder)
10 mm
1–2 mm
solder solder
Soft
solder
Coupling ring
• PL-259 CONNECTOR
➀
➂
➃
➁
Slide the coupling ring
down. Strip the cable
jacket and soft solder.
Slide the connector
body on and solder it.
Screw the coupling
ring onto the connec-
tor body.
Strip the cable as
shown at right. Soft
solder the center con-
ductor.
(10 mm ≈
3
⁄8 in)
Roof-mount antenna
(Drill a hole or use a magnetic mount.)
Gutter-mount antenna
Trunk-mount
antenna
