Icom IC-V8 [10/80] Quick reference
![Icom IC-V8 [10/80] Quick reference](/views2/1074455/page10/bga.png)
QUICK REFERENCE
I
■ Preparation
D Battery pack replacement
Before replacing the battery pack, push [POWER] for 1 sec. to turn
the power OFF.

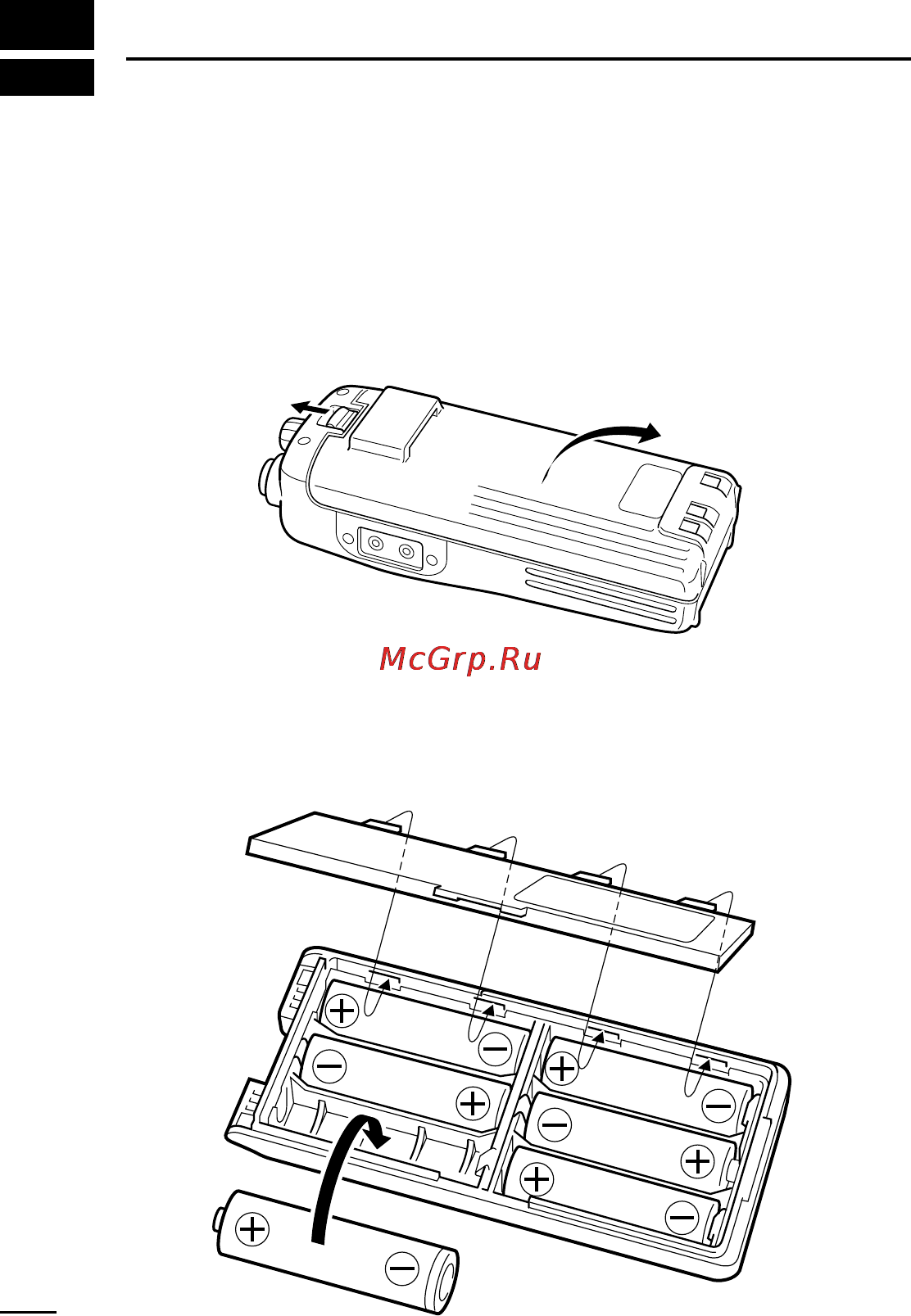

• Slide the battery release forward, then pull the battery pack up-
ward with the transceiver facing away from you.
D Battery case— optional for some versions
When using a BP-208
BATTERY CASE
attached to the transceiver, in-
stall 6 AA (R6) size alkaline batteries as illustrated below.
IC-V8_New.qxd 02.5.23 10:55 Page I (1,1)
