17
4
BASIC OPERATION
4
D By other methods
Via the [
YY
]/[
ZZ
] keys
➥ Push [Y] or [Z] several times to set the desired frequency.
• Each push increases/decreases the frequency by the selected tun-
ing step. See page 18 for tuning step details.

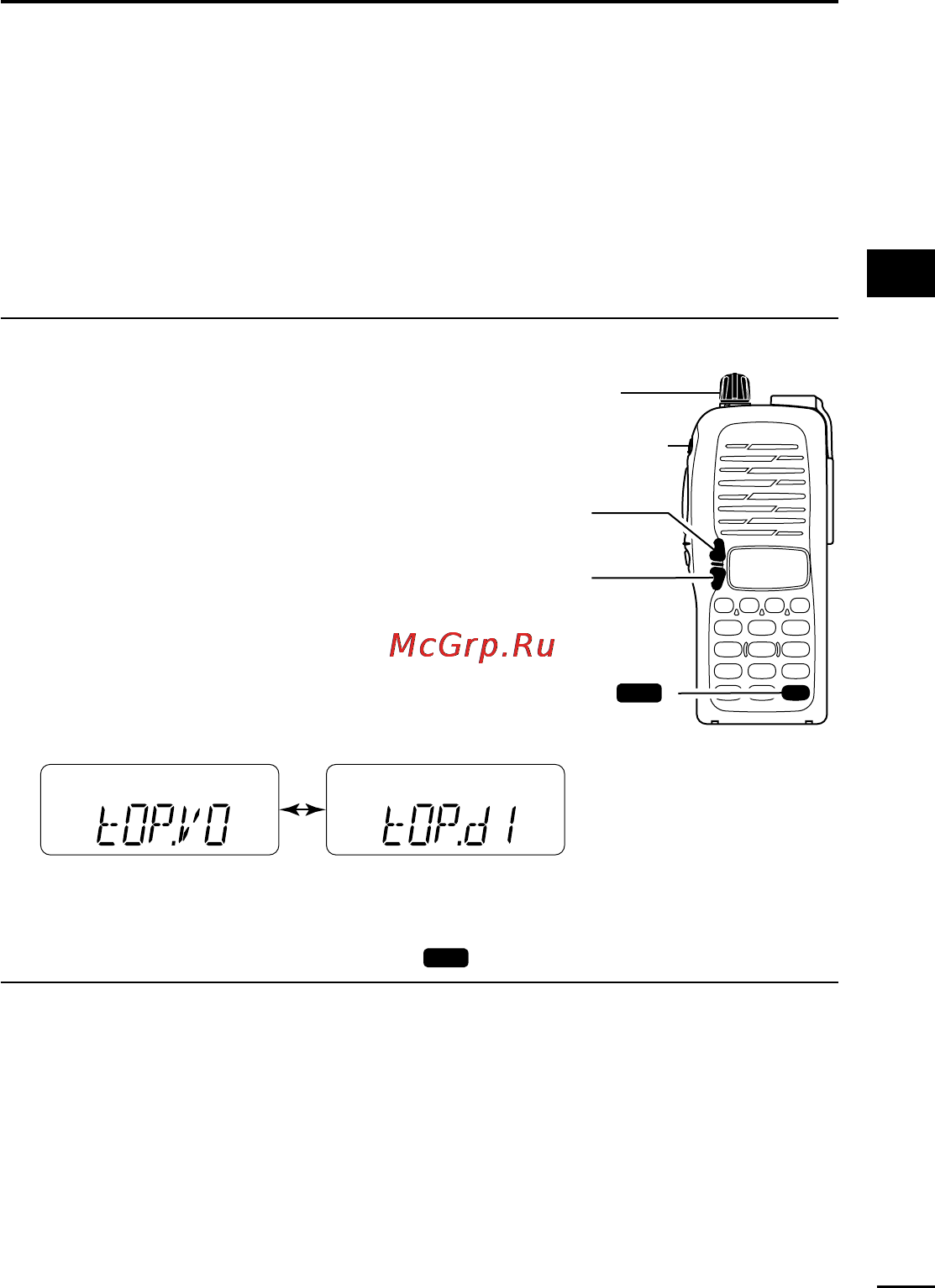

✔ For your information— [VOL] function assignment
The [VOL] control can be used as a tun-
ing dial for frequency tuning instead of
[Y]/[Z] keys. However, while [VOL] is
functions as tuning dial, [Y]/[Z] keys
functions as AF volume control.
q While pushing [Y] and [Z], turn power
ON to enter
INITIAL SET MODE
.
w Push [Y] or [Z] several times to select
the dial assignment item, “tOP.”
e Rotate [VOL] to select the condition.
r To exit set mode, push [#•
ENT
].
MR
F
TX
MR
F
TX
[VOL] is assigned as
AF volume control.
[VOL] is assigned as
tuning dial.
[Y]
[Z]
[VOL]
[POWER]
[#•ENT ]
