MEMORY/CALL OPERATION
■ Memory transferring
Memory (call) channel contents can be transferred to the VFO or
to another memory channel.
D Memory/call ➾ VFO
q Select the memory (call) channel to be
transferred:
➥ Push [C•
MR
] or [
B•
CALL
] to select
memory (call) mode.
➥ Push [Y] or [Z] to select the mem-
ory channel.
• When [VOL] is assigned as tuning
dial, rotate [VOL] to select the mem-
ory channel. (pgs. 17, 53)
w Push [A•
FUNC
], then push [C•
MR
] for
1 sec. to transfer the selected memory
contents to the VFO.
• VFO mode is selected automatically.
D Memory/call ➾ call/memory
q Select the memory (call) channel to be transferred:
➥ Push [C•
MR
] or [
B•
CALL
] to select the memory (call) mode.
➥ Push [Y] or [Z] to select the memory channel.
• When [VOL] is assigned as tuning dial, rotate [VOL] to select the
memory channel. (pgs. 17, 53)
w Push [A•
FUNC
], then push [C•
MR
] momentarily.
•“--” and “
X
” blink.
e Push [Y] or [Z] to select the target memory.
• When [VOL] is assigned as tuning dial, rotate [VOL] to select the
target channel. (pgs. 17, 53)
r Push [A•
FUNC
], then push [C•
MR
] for 1 sec.
• Memory mode is selected and the contents are transferred to
the target memory.

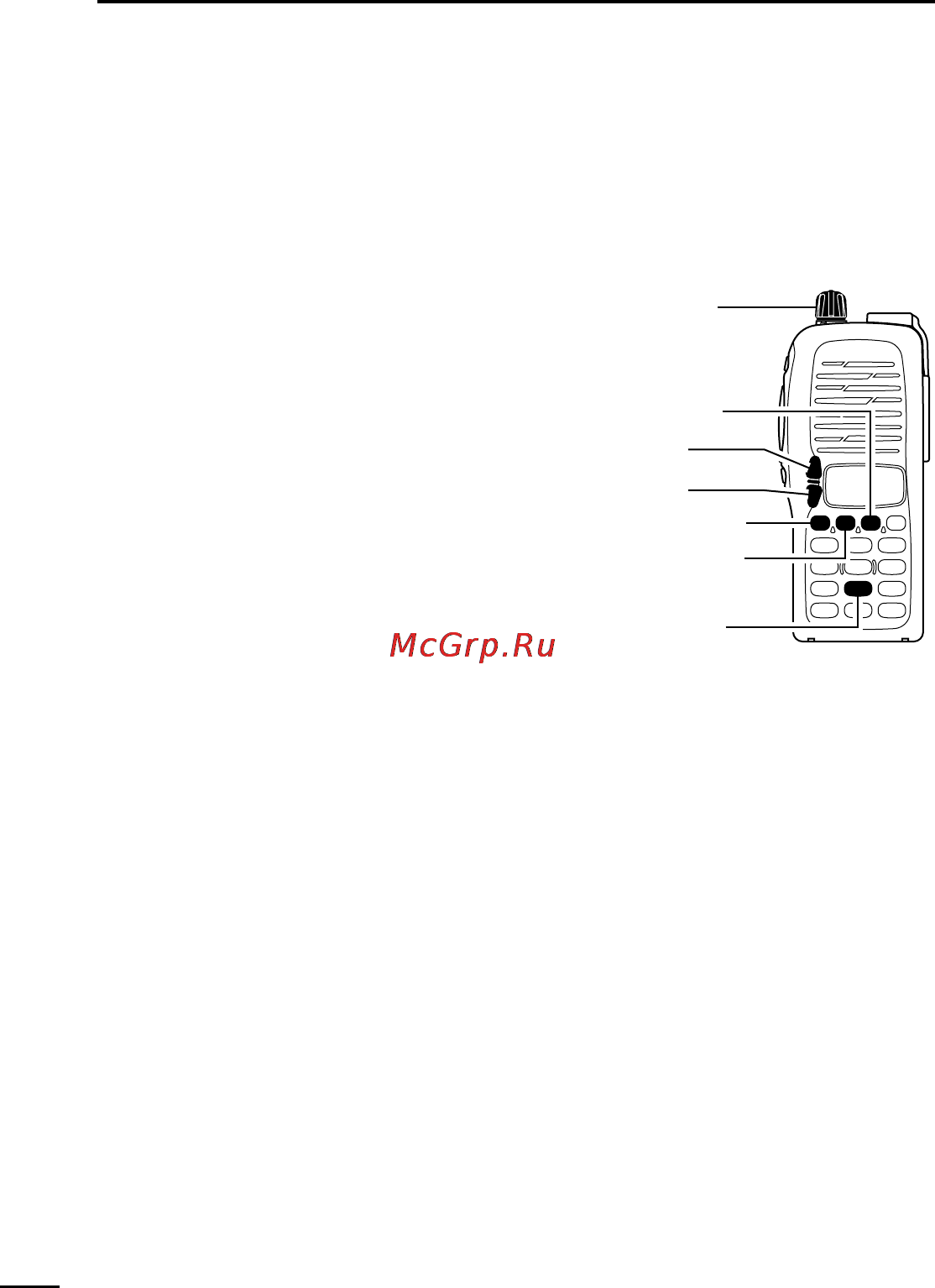

[B•CALL]
[8•
SET]
[C•MR]
[Z]
[Y]
[A•FUNC]
[VOL]
