IV
QUICK REFERENCE
Quick Reference
■ Your first contact
Now that you have your IC-V8 ready, you are exited to get on the
air. We would like to walk you through a few basic operational steps
to make your first “On The Air” use an enjoyable experience.
D About default setting
The [VOL] control function can be traded with [Y]/[Z] keys function
in
INITIAL SET MODE
. However, in this QUICK REFERENCE, the fac-
tory default setting ([VOL] controls audio output level) is used for
simple instructions.
D Basic operation

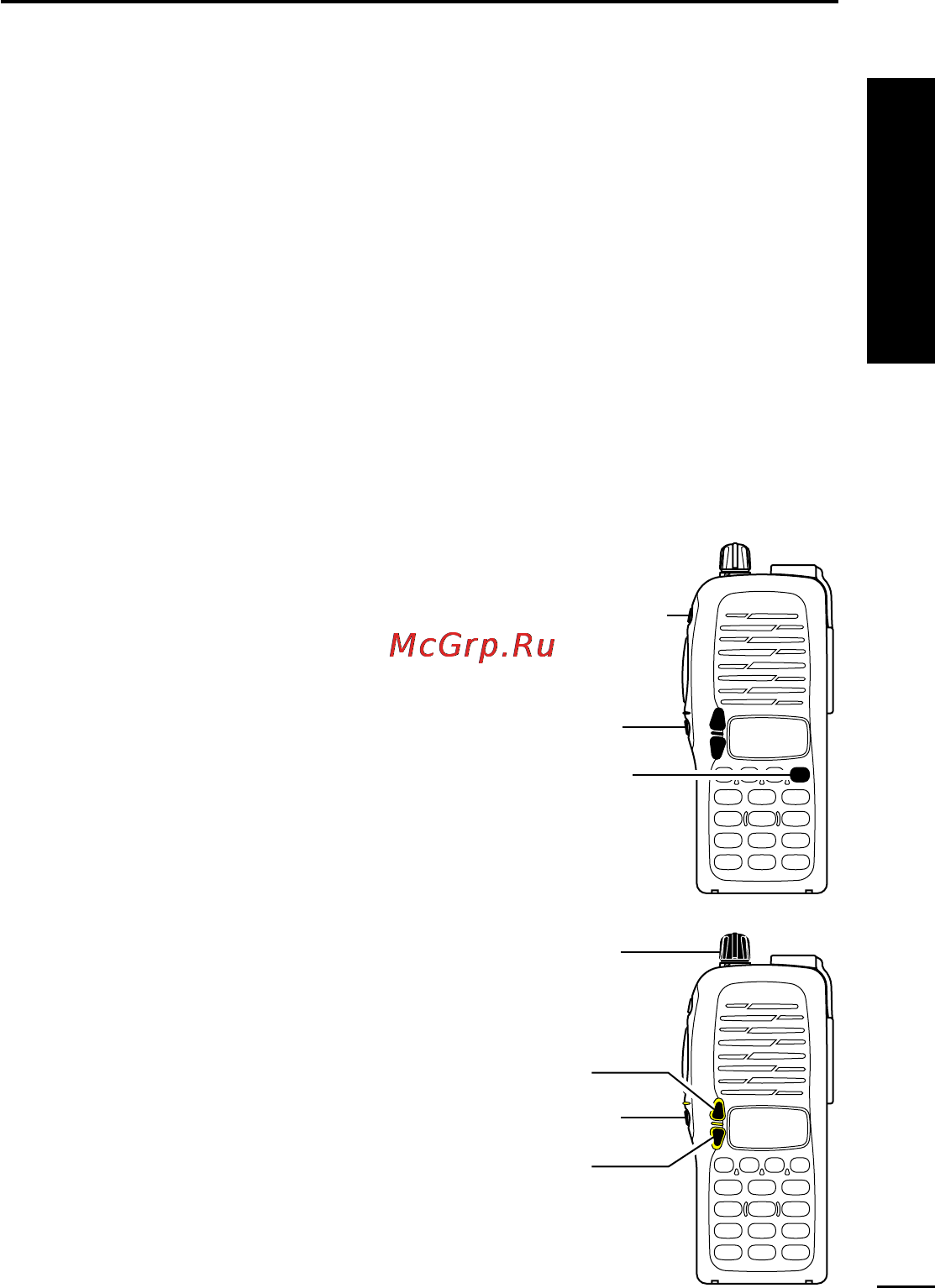

1. Turning ON the transceiver
Although you have purchased a brand
new transceiver, some settings may be
changed from the factory defaults be-
cause of the QC process. Resetting the
CPU is necessary to start from factory
default.
➥ While pushing [SQL] and [D•
CLR
],
push [POWER] for 1 sec. to reset the
CPU and turn power ON.
2. Adjusting output level
➥ Rotate [VOL] to set the desired audio
level.
3. Adjusting the squelch level
➥ While pushing and holding [SQL], push
[Y] or [Z] to set the squelch level.
[POWER]
[SQL]
[D•
CLR]
[Y]
[Z]
[VOL]
[SQL]
IC-V8_New.qxd 02.5.23 10:55 Page IV (1,1)
