SET MODE
DD
Entering
SET MODE
q Push [A•
FUNC
], then push [8•
SET
].
w Push [Y] or [Z] to select the desired item.
e Rotate [VOL] to select the condition/value.
• To exit set mode, push [#•
ENT
].
DD

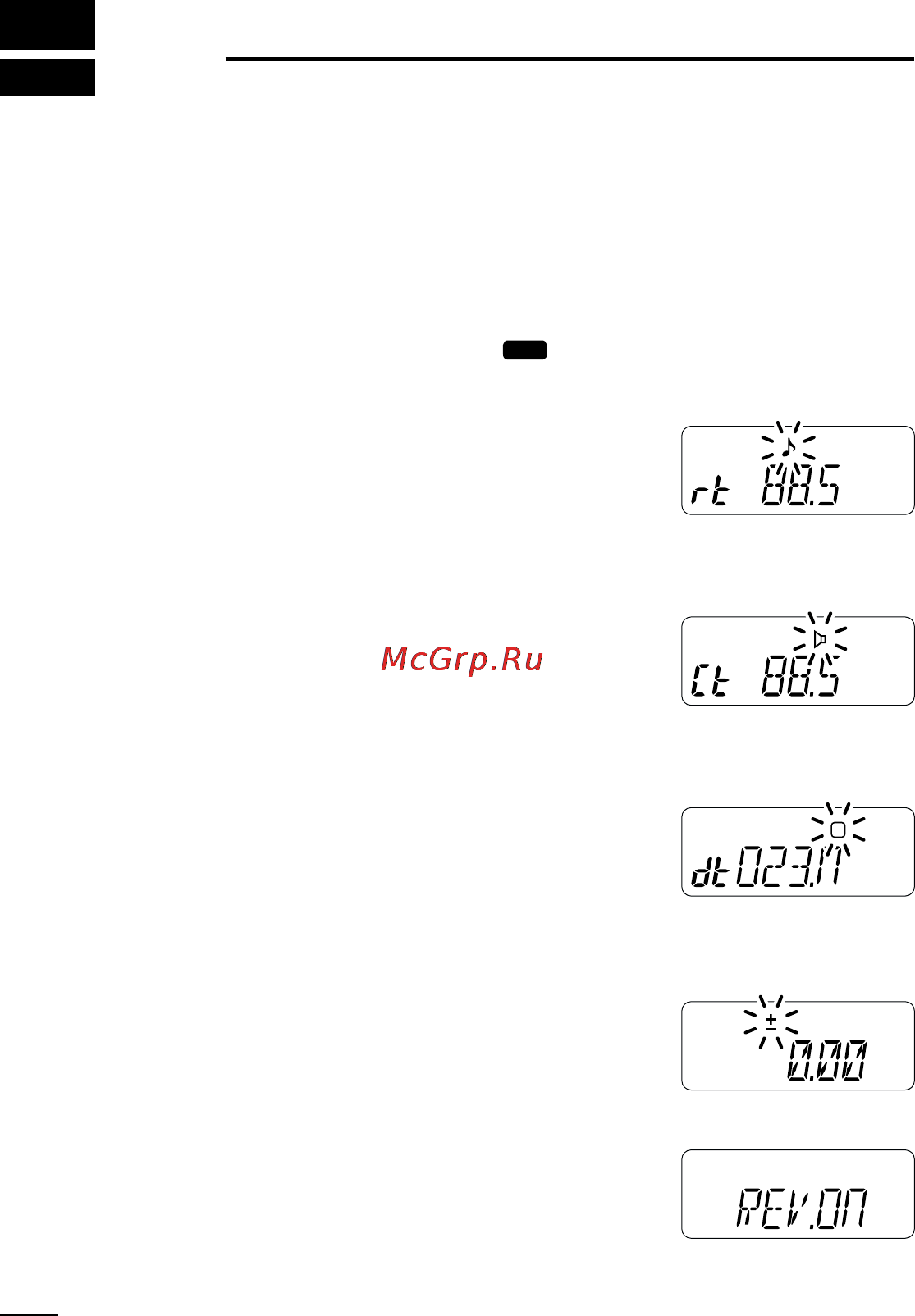

Repeater tone frequency
Selects tone encoder frequency for accessing
a repeater, etc. from one of 50 available fre-
quencies.
• 67.0–254.1 Hz (50 tones): 88.5 Hz (default)
DD
Tone squelch frequency
Selects frequency for tone squelch or pocket
beep operation from one of 50 available fre-
quencies.
• 67.0–254.1 Hz (50 tones): 88.5 Hz (default)
DD
DTCS code
Selects DTCS encoder/decoder code with po-
larity (N: normal/I: inverse) from one of 208
available codes.
• 023N/I–754N/I: 023N (default)
DD
Offset frequency
Sets the offset frequency for duplex (repeater)
operation within 0–20.00 MHz range.
DD
Reverse function
Turns the reverse function ON and OFF.
• Default: OFF
MR
F
TX
MR
F
TX
MR
F
D
TX
MR
F
TX
MR
F
TX
48
11
OTHER FUNCTIONS
IC-V8_New.qxd 02.5.23 10:56 Page 48 (1,1)
