OTHER FUNCTIONS
DD

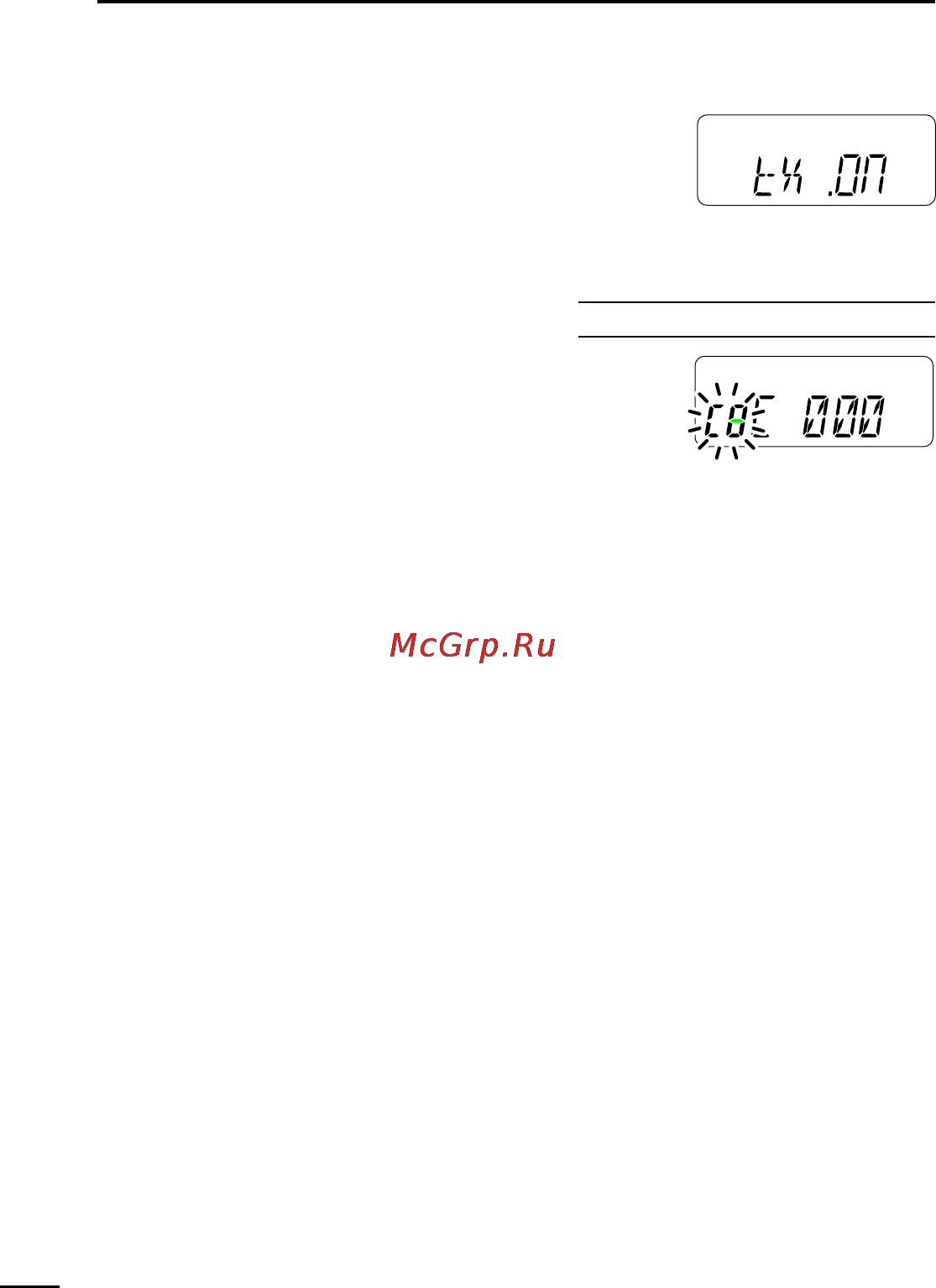

Transmission permission
Turns transmission permission ON and OFF.
This function can be set for each memory and
call channel, independently.
• tX .ON: Transmission is permitted. (default)
• tX .OF : Transmission is inhibited.
DD
Pager/Code squelch channel
Programs 3-digit ID code in channel “C0”
and individual or group call code in channel
“C1” to “C6” for the pager and code squelch
functions. See p. 43 for programming details.
*This item appears only when the optional UT-108 is installed and pager
or code squelch function is activated.
Optional UT-108 required
MR
F
TX
MR
F
TX
