20
4
BASIC OPERATION

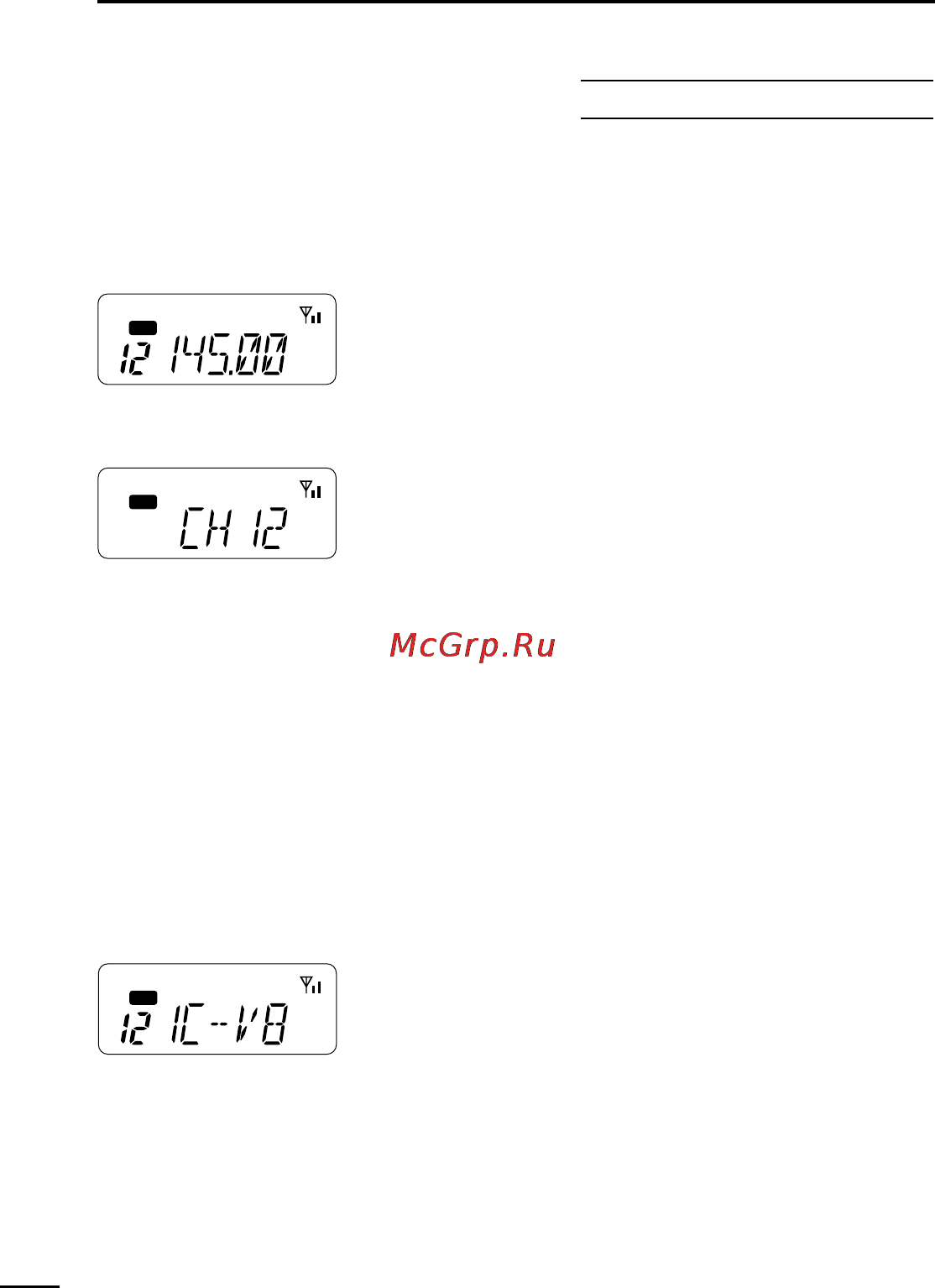

■ Display type
The transceiver has 3 display types to match your operating style.
The display type is selected in the
INITIAL SET MODE
(p. 53).
“Frequency Indication” type
Displays operating frequency.
“Channel Number Indication” type
Displays memory channel number. In this
type only pre-programmed memory channel
numbers are displayed.
VFO mode cannot be selected.
• When the channel indication type is selected, only the following func-
tions can be performed.
- Scan function (p. 32)
- Output power setting (p. 19)
- DTMF memory function (p. 30)
- Key lock function (p. 19)
- Scan pause timer setting, function key timer setting and LCD
backlight setting in
SET MODE
(p. 49)
“Channel Name Indication” type
Displays memory channel name you have
assigned. In this display pre-programmed
memory channel names are displayed.
VFO mode is selectable.
• Programmed frequencies are indicated pre-programmed in the se-
lected memory channel.
• Push and hold [SQL] to display the operating frequency.
USING
INITIAL SET MODE
IC-V8_New.qxd 02.5.23 10:55 Page 20 (1,1)
