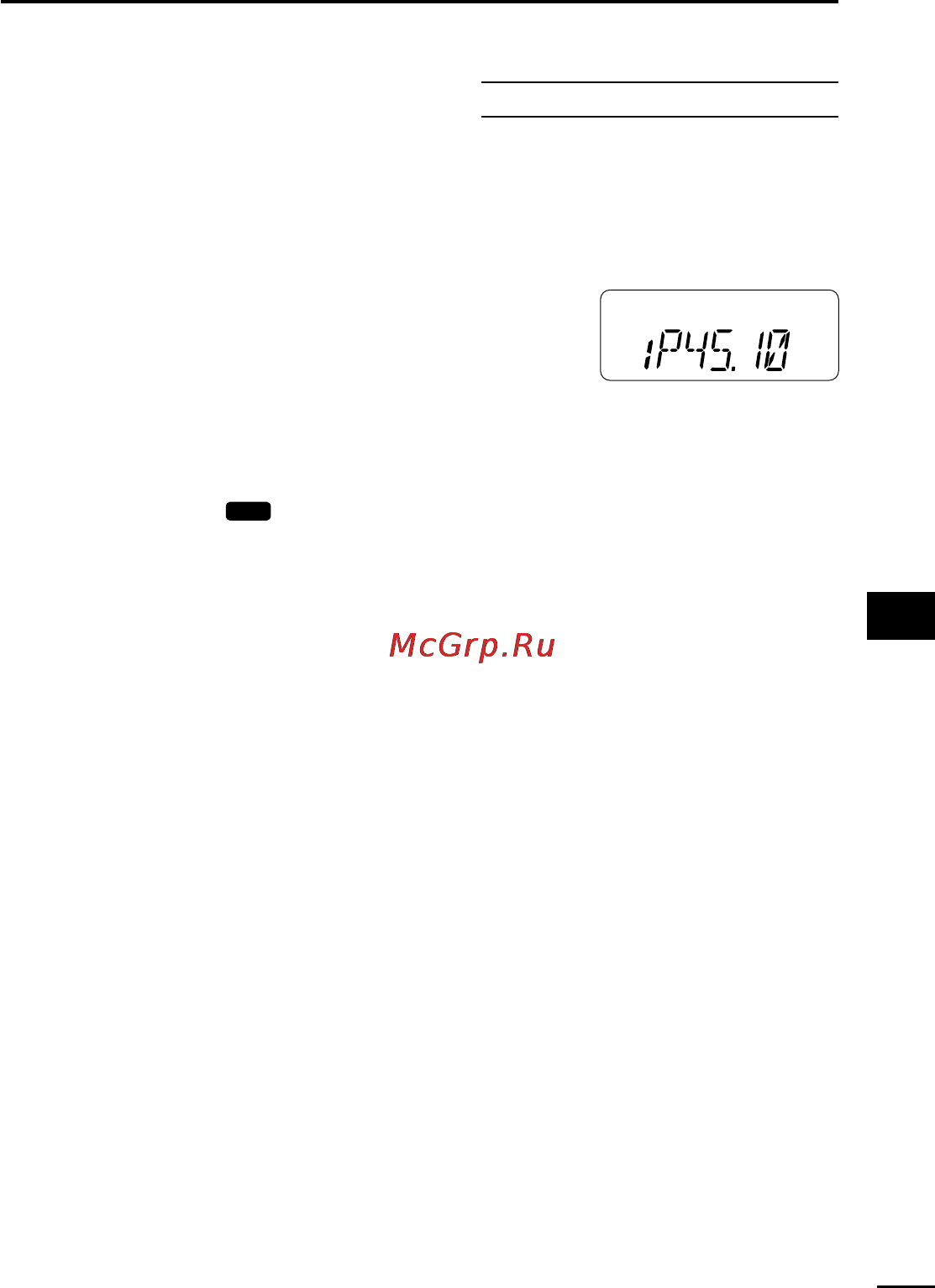

![Icom IC-V8 [61/80] I pager operation](/views2/1074455/page61/bg3d.png)
45
10
PAGER/CODE SQUELCH
10
■ Pager operation
D Calling a specific station
q Program the desired code channel in advance (p. 43).
w Set the operating frequency.
•
Set the AF and squelch to the desired level as in normal operation.
e Push [A•
FUNC
], then push [✱•
OPTION
].
• Pager mode is selected.
• 100 MHz digit shows “P.”
r Select the desired transmit code channel:
➥ Push [A•
FUNC
], then push [8•
SET
].
➥ Rotate [VOL] to select the desired code channel.
➥ Push [#•
ENT
] to return to previous condition.
t Push [PTT] to transmit the pager code.
y Wait for an answer back.
• When the transceiver receives an answer back code, the function
display shows the other member’s ID or group code.
u After confirming a connection, push [A•
FUNC
], then push
[✱•
OPTION
] to select the code squelch operation, or repeat the
previous key operation again to select non-selective calling
system.
• DO NOT push any digit keys while code channels C0 to C6 are dis-
played, or code channel contents will be changed.
i Communicate with the other party as normal: push [PTT] to
transmit; release to receive.
Optional UT-108 required
MR
F
TX
