13
3
BATTERY PACKS
3

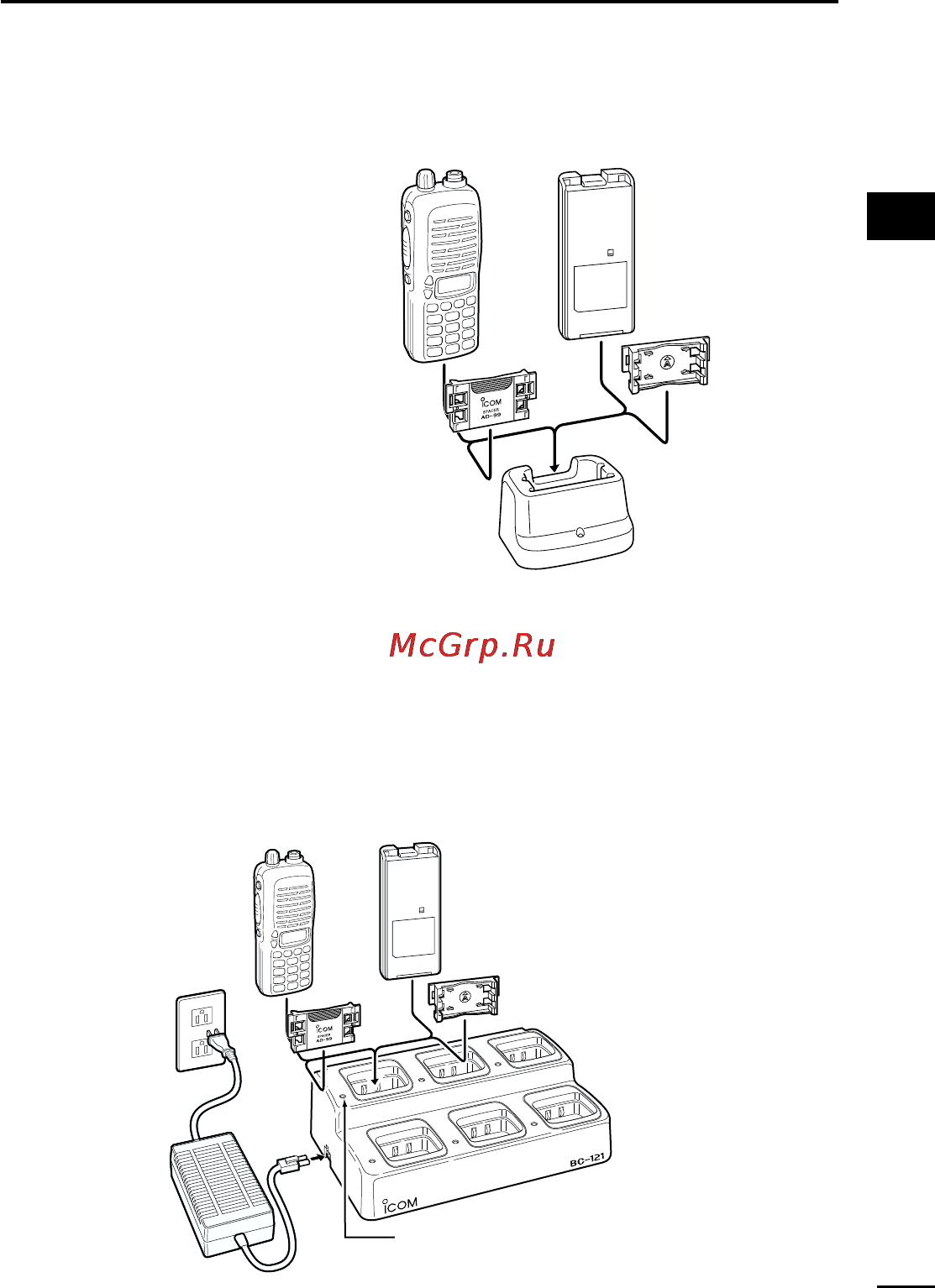

D Rapid charging with the BC-144
The optional BC-144 provides
rapid charging of optional bat-
tery packs.
The following are additionally
required:
• An AC adapter (may be sup-
plied with the BC-144 depend-
ing on version).
D Rapid charging with the BC-121N+AD-94 (#11)
The optional BC-121N allows up to 6 battery packs to be charged
simultaneously. The following are additionally required.
• Six AD-94 (#11).
• An AC adapter (BC-124; may be supplied with the BC-121N depend-
ing on version).
M
U
L
T
I-C
H
A
R
G
E
R
AC adapter
(purchased
separately)
Charge indicator
(each indicator functions independently)
Turn power OFF.
Check orienta-
tion for correct
charging. (In-
sert together
with AD-99.)
Turn power OFF.
BC-144
+ AD-99
IC-V8_New.qxd 02.5.23 10:55 Page 13 (1,1)
