Icom IC-V8 [21/80] D key pad continued
![Icom IC-V8 [21/80] D key pad continued](/views2/1074455/page21/bg15.png)
5
2
PANEL DESCRIPTION
2

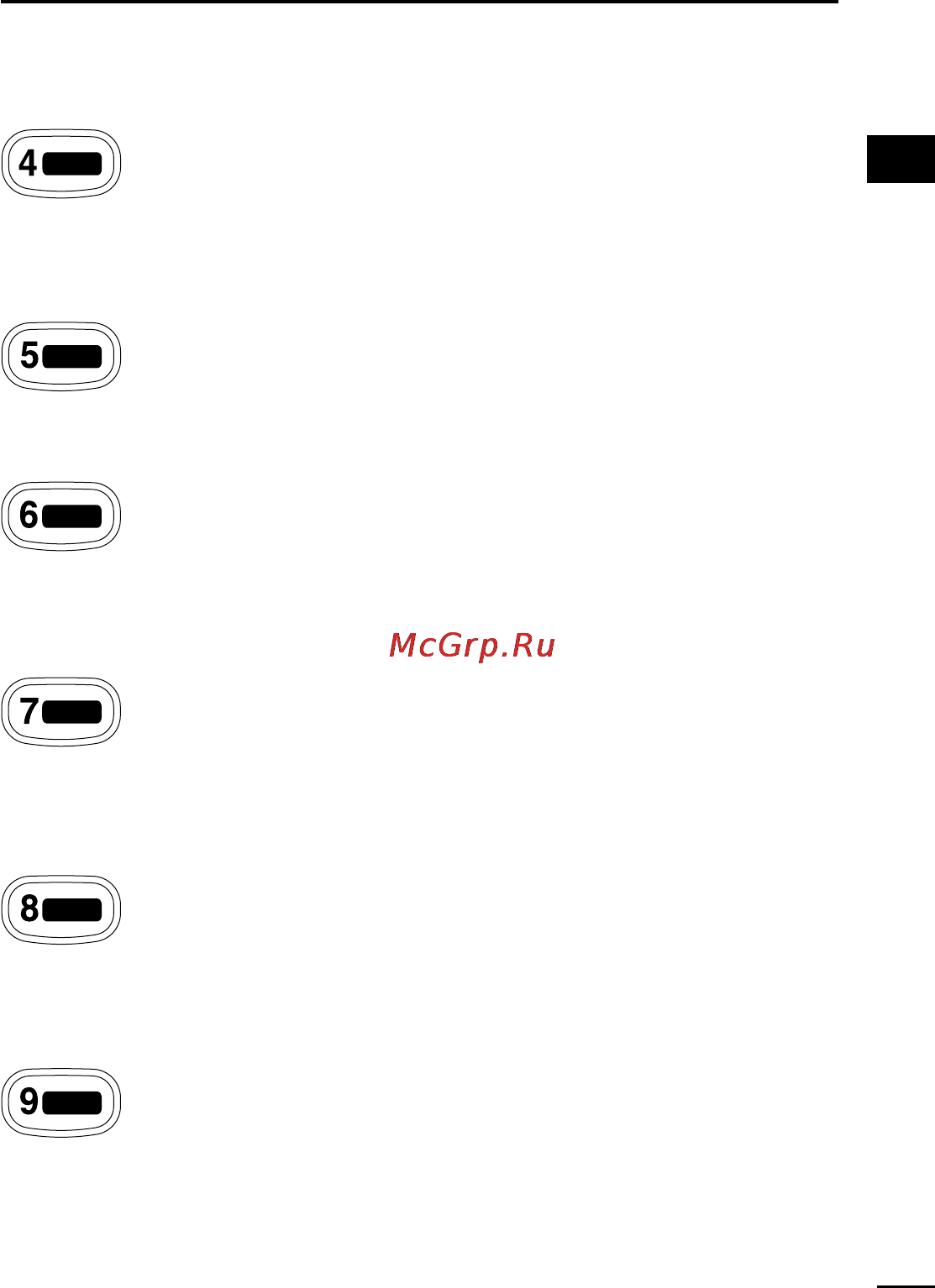

D Key pad (Continued)
[4•
DUP
]
➥ Input digit “4” during frequency input, memory chan-
nel selection, etc. (pgs. 16, 25)
➥ After pushing [A•
FUNC
], selects a duplex function
(–duplex, +duplex, simplex). (p. 21)
[5•
SCAN
]
➥ Input digit “5” during frequency input, memory chan-
nel selection, etc. (pgs. 16, 25)
➥ After pushing [A•
FUNC
], starts scanning. (p. 33)
[6•
SKIP
]
➥ Input digit “6” during frequency input, memory chan-
nel selection, etc. (pgs. 16, 25)
➥ After pushing [A•
FUNC
], sets and cancels skip setting
for memory skip scan during memory mode. (p. 34)
[7•
PRIO
]
➥ Input digit “7” during frequency input, memory chan-
nel selection, etc. (pgs. 16, 25)
➥ After pushing [A•
FUNC
], starts the priority watch.
(p. 35)
[8•
SET
]
➥ Input digit “8” during frequency input, memory chan-
nel selection, etc. (pgs. 16, 25)
➥ After pushing [A•
FUNC
], enters into the
SET MODE
.
(p. 48)
[9•
HI
/
LO
]
➥ Input digit “9” during frequency input, memory chan-
nel selection, etc. (pgs. 16, 25)
➥ After pushing [A•
FUNC
], switches between high and
low output power. (p. 19)
IC-V8_New.qxd 02.5.23 10:55 Page 5 (1,1)
