SCAN OPERATION
■ Scan resume condition
When a signal is received during scanning, the scan resume
condition determines what action the transceiver takes. The
transceiver has 2 scan resume conditions available as illustrated at
right. Use
SET MODE
to select the one which best suits your needs.
q Push [A•
FUNC
], then push [8•
SET
] to enter
SET MODE
.

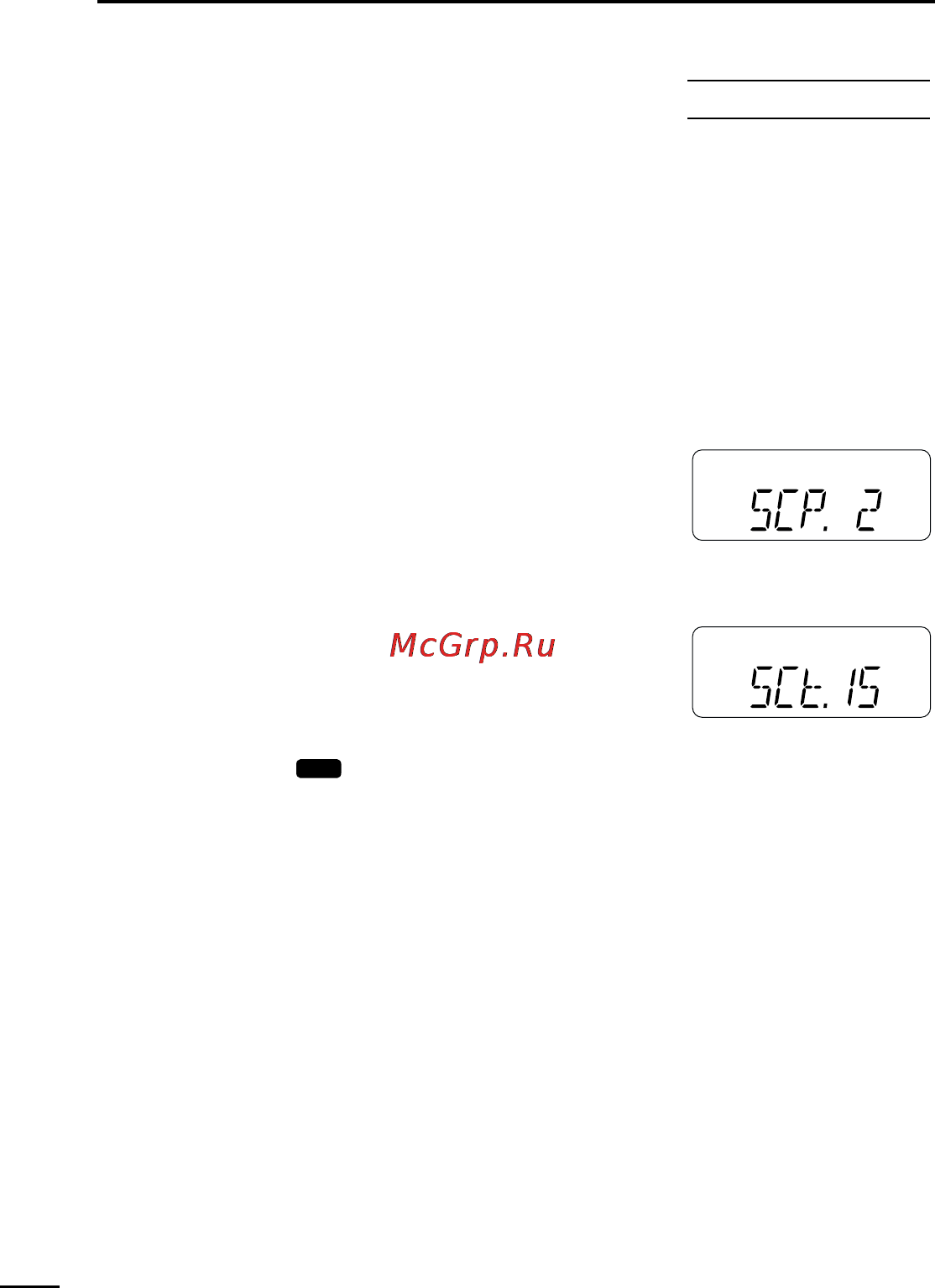

w Push [Y] or [Z] several times until “SCP” or “SCt” appears.
e Rotate [VOL] to select the desired scan resume condition.
• Pause scan:
When receiving a signal, scan pauses on
the signal until it disappears. Resumes 2
sec. after the signal disappears.
• Timer scan:
When receiving a signal, scan pauses on
the signal for 5 sec., 10 sec. or 15 sec., then
resumes.
r Push [#•
ENT
] to set and exit
SET MODE
.
MR
F
TX
MR
F
TX
Timer scan
Pause scan
USING
SET MODE
