Icom IC-V8 [5/80] Supplied accessories
![Icom IC-V8 [5/80] Supplied accessories](/views2/1074455/page5/bg5.png)
iv

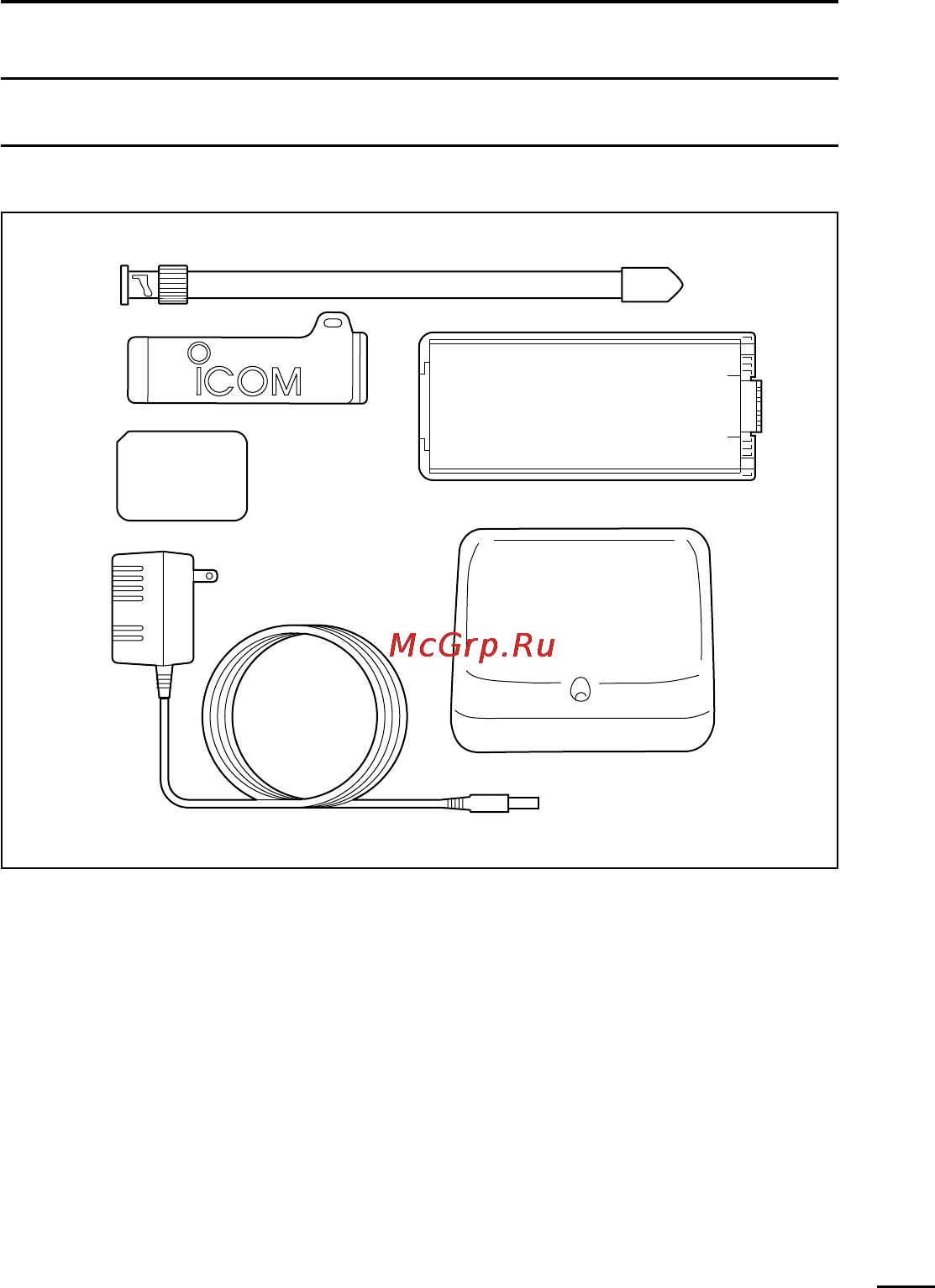

SUPPLIED ACCESSORIES
Accessories included with the transceiver:
q Antenna …………………………………………………… 1
w Belt clip …………………………………………………… 1
e 2251 OPT sheet ………………………………………… 1
r AC Adapter* ……………………………………………… 1
t Battery pack*/Battery case* …………………………… 1
y Battery charging stand* ………………………………… 1
*Not supplied with some versions.
r
q
w
e
t
y
IC-V8_New.qxd 02.5.23 10:55 Page iv (1,1)
