Icom IC-V8 [12/80] D antenna
![Icom IC-V8 [12/80] D antenna](/views2/1074455/page12/bgc.png)
III
QUICK REFERENCE

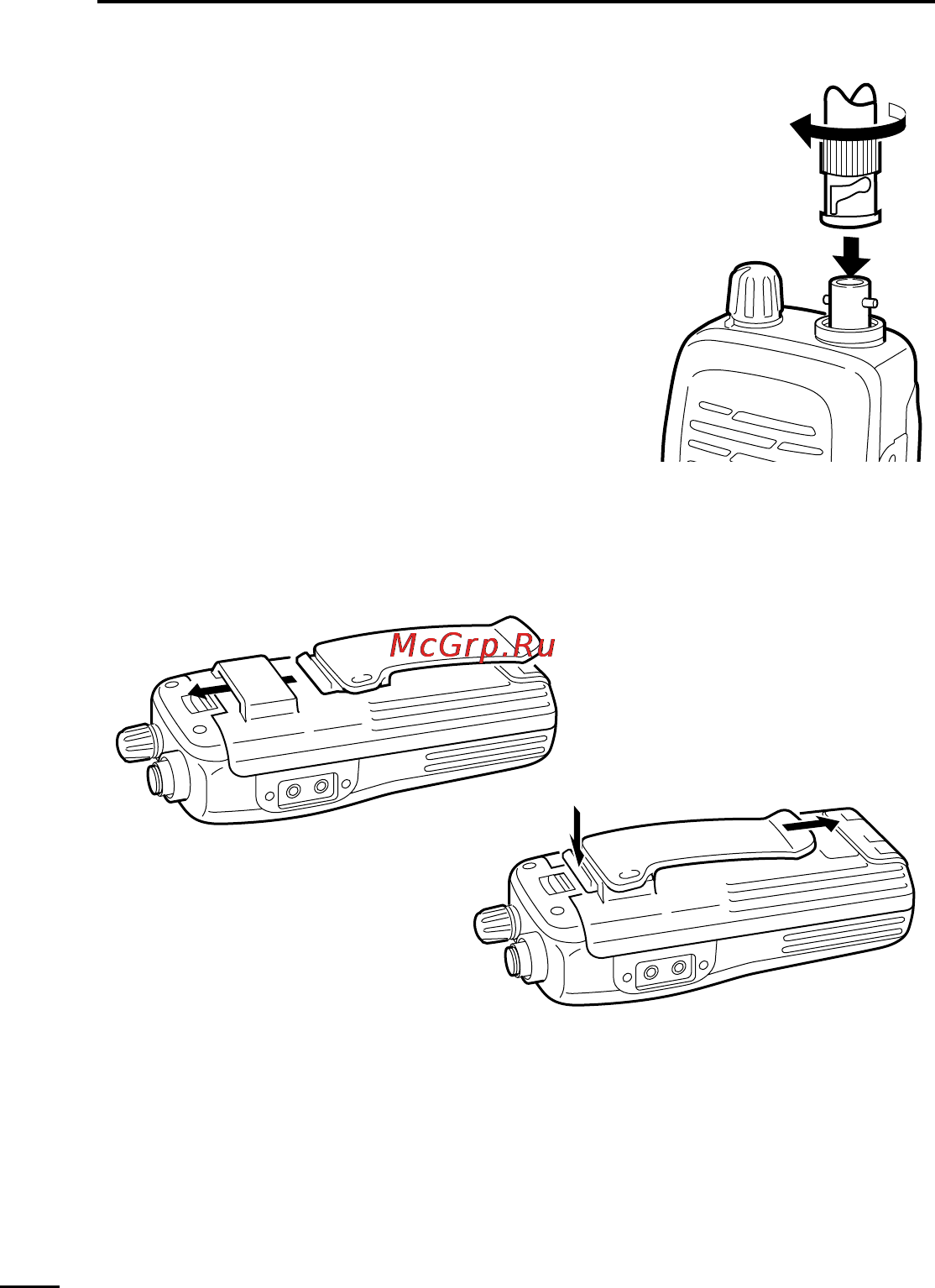

D Antenna
Attach the antenna to the transceiver as
illustrated at right.
D Belt clip
Attach the belt clip to the transceiver as illustrated below.
To attach the belt clip
To release the belt clip
IC-V8_New.qxd 02.5.23 10:55 Page III (1,1)
