7
2
PANEL DESCRIPTION
2

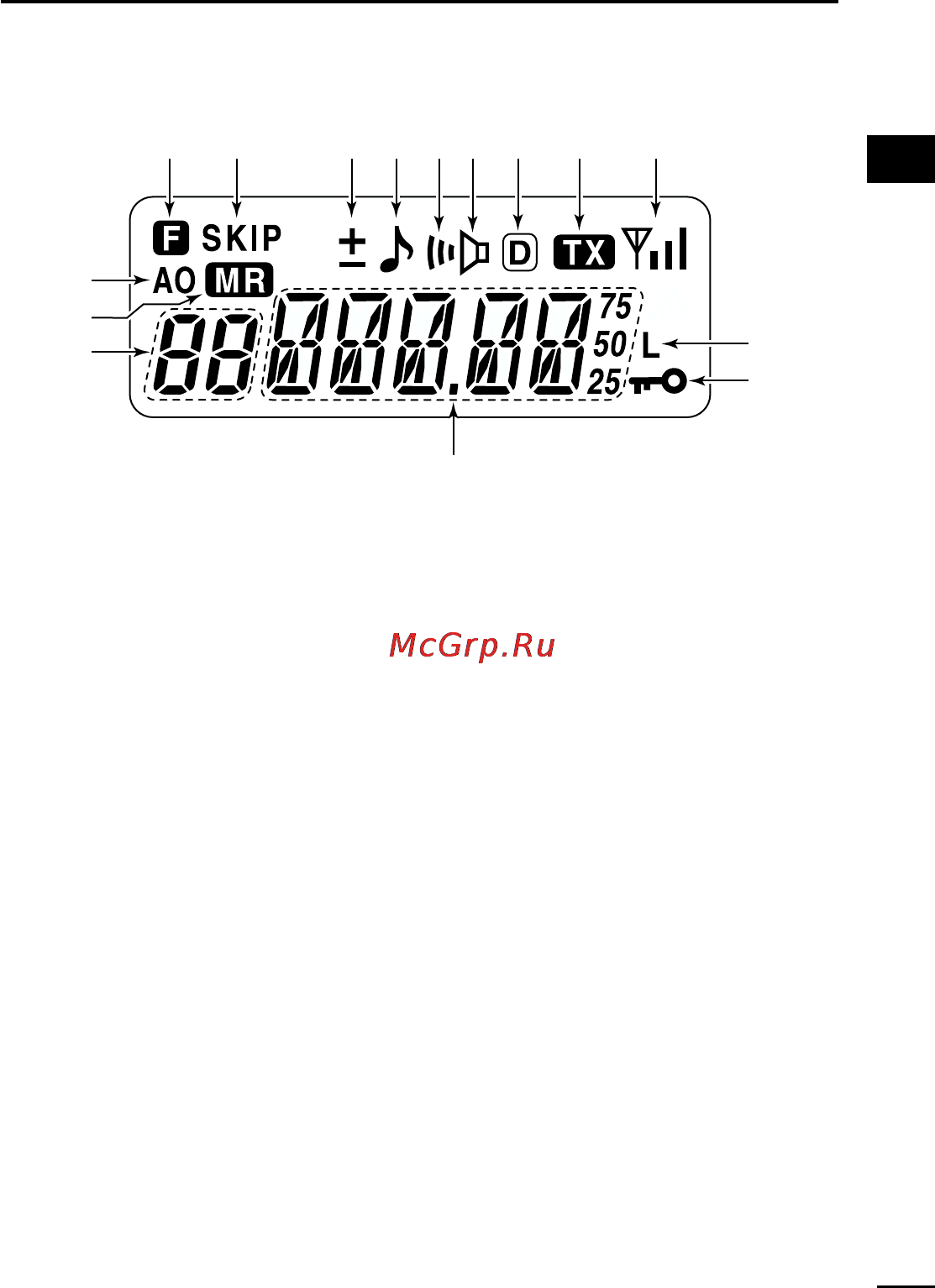

■ Function display
q FUNCTION INDICATOR
Appears while a secondary function is being accessed.
w SKIP CHANNEL INDICATOR
Appears when the selected memory channel is set as a “skip
channel.” (p. 34)
e DUPLEX INDICATOR
Either “–” or “+” appears during repeater operation (p. 21).
r TONE ENCODER INDICATOR
Appears when tone encoder is in use. (p. 21)
t POCKET BEEP INDICATOR
Appears during pocket beep operation (p. 39).
y TONE SQUELCH INDICATOR
Appears when tone squelch is in use. (p. 37)
u DTCS INDICATOR
Appears when DTCS tone is in use. (p. 37)
i TRANSMIT INDICATOR
Appears during transmit. (p. 19)
qq
!5
!4
!3
!0
!1
w
!2
ertyu i o
IC-V8_New.qxd 02.5.23 10:55 Page 7 (1,1)
