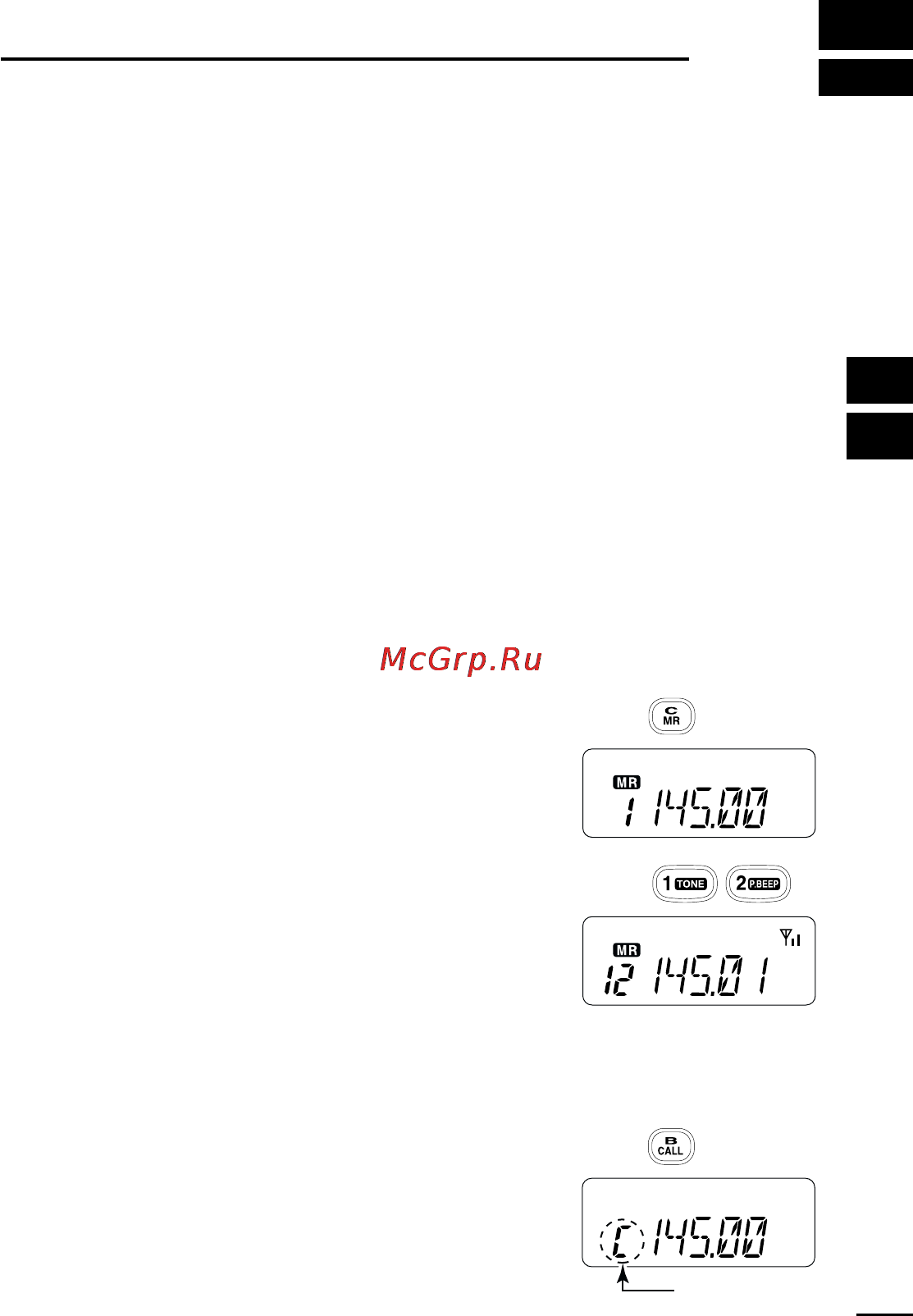

MEMORY/CALL OPERATION
5
6
■ General
The transceiver has 100 memory channels (plus 3 pairs of scan
edges and 1 call channel) for storage of often-used frequencies.
D Memory channel contents
The following information can be programmed into the memory:
• Operating frequency
• Duplex direction (+ or –) with an offset frequency (pgs. 21, 22)
• Subaudible tone encoder or tone squelch ON/OFF (pgs. 21, 37)
• Subaudible tone and tone squelch frequencies (pgs. 22, 38)
• Skip information* (p. 34)
*But not scan edge channels.
■ Selecting a memory channel
q Push [C•
MR
] to select memory mode.
•“
X
” appears.
w Enter 2 digits to select the desired memory
channel (or push the [Y]/[Z] keys).
• The memory channels 0–9 are proceeded
by a “0.”
• When [VOL] is assigned as tuning dial, ro-
tate [VOL] to select the memory channel.
(pgs. 17, 53)
■ Selecting the call channel
➥ Push [B•
CALL
] to select the call channel.
•“C” is displayed instead of the memory
channel number.
• Push [D•
CLR
] or [C•
MR
] to select VFO or
memory mode, respectively.
Push
“C” appears
Push
Push
