Icom IC-V8 [48/80] Scan operation
![Icom IC-V8 [48/80] Scan operation](/views2/1074455/page48/bg30.png)
32
8
SCAN OPERATION

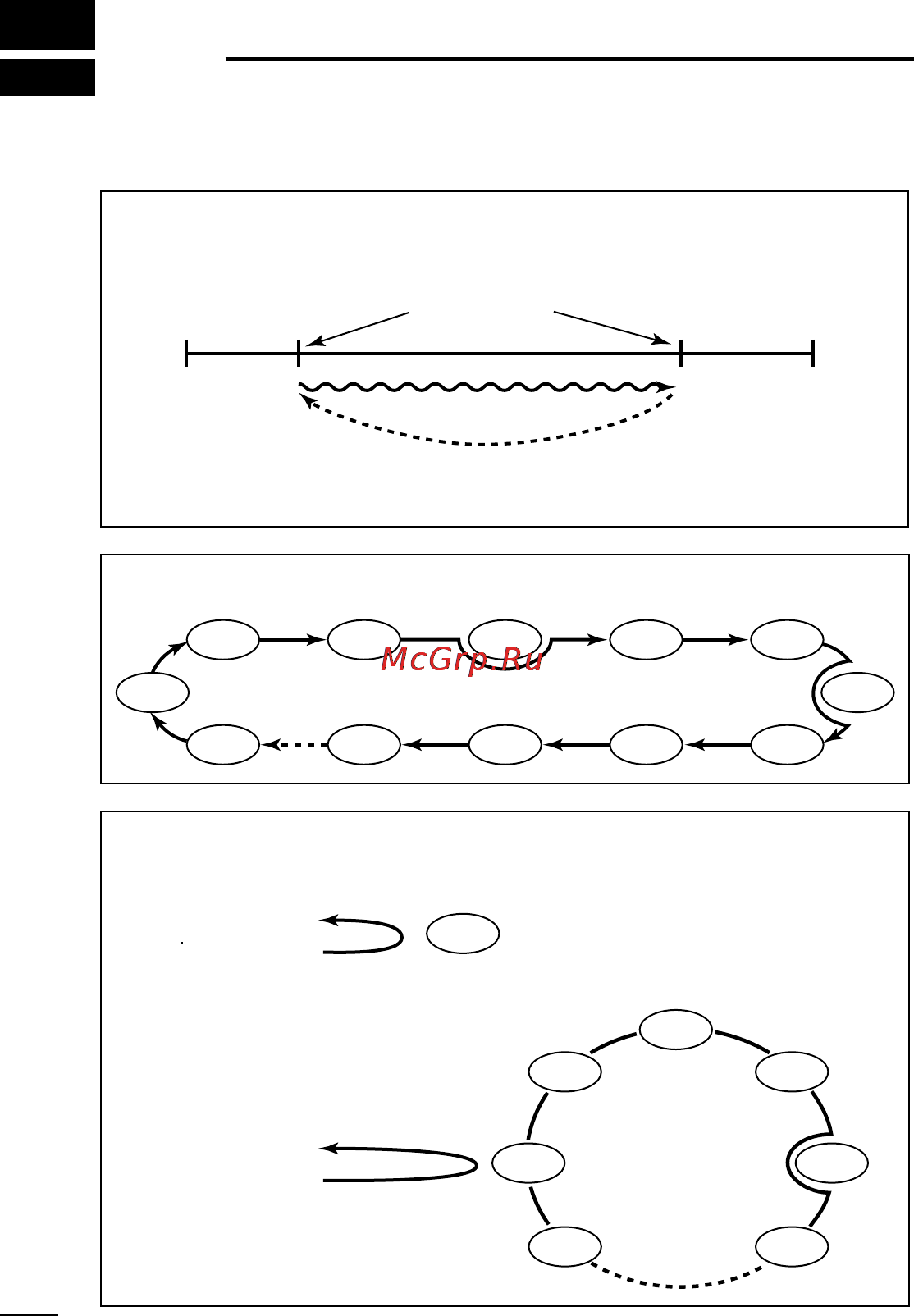

PROGRAMMED SCAN
MEMORY (SKIP) SCAN
PRIORITY WATCH
Band edge Band edge
Start
1A
2A
3A
End
1b
2b
3b
Scan edges
Scan
Jump
SKIP
SKIP
SKIP
Mch 1
Mch 0
Mch 2 Mch 3
Mch 3
Mch 4 Mch 5
Mch 10Mch 99 Mch 9 Mch 8 Mch 7
Mch 6
Mch 1
Mch 2
Mch 3
Mch 4
Mch 5
Mch 99 Mch 6
VFO frequency
145.20 MHz
VFO frequency
145.20 MHz
5 sec. 50 msec.
5 sec. 50 msec.
Priority channel
Priority channel
Memory
scan
Priority memory channel watch
Priority memory channel scan
Programmed scan P1 scans between 1A and 1b, P2 scans between
2A and 2b, and P3 scans between 3A and 3b frequencies.
■ Scan types
