MEMORY/CALL OPERATION
6
■ Channel name programming
q Select a “Channel Name Indication”
type in
INITIAL SET MODE
(p. 53).
w Push [C•
MR
] to select memory mode, if
necessary.
e Push [A•
FUNC
], then push [8•
SET
] to
enter into the channel name program-
ming mode.
• The character to be edited blinks.
r Rotate [VOL] to select a character.
t Push [Y] to move to the right, [Z] to
move to the left.
• Up to 5 characters can be used for channel name.
• Usable characters are; A–Z, 0–9, ”space“, +, –, =, ✱, /, [, and ]
y Push [#•
ENT
] to fix and exit the channel name programming
mode.

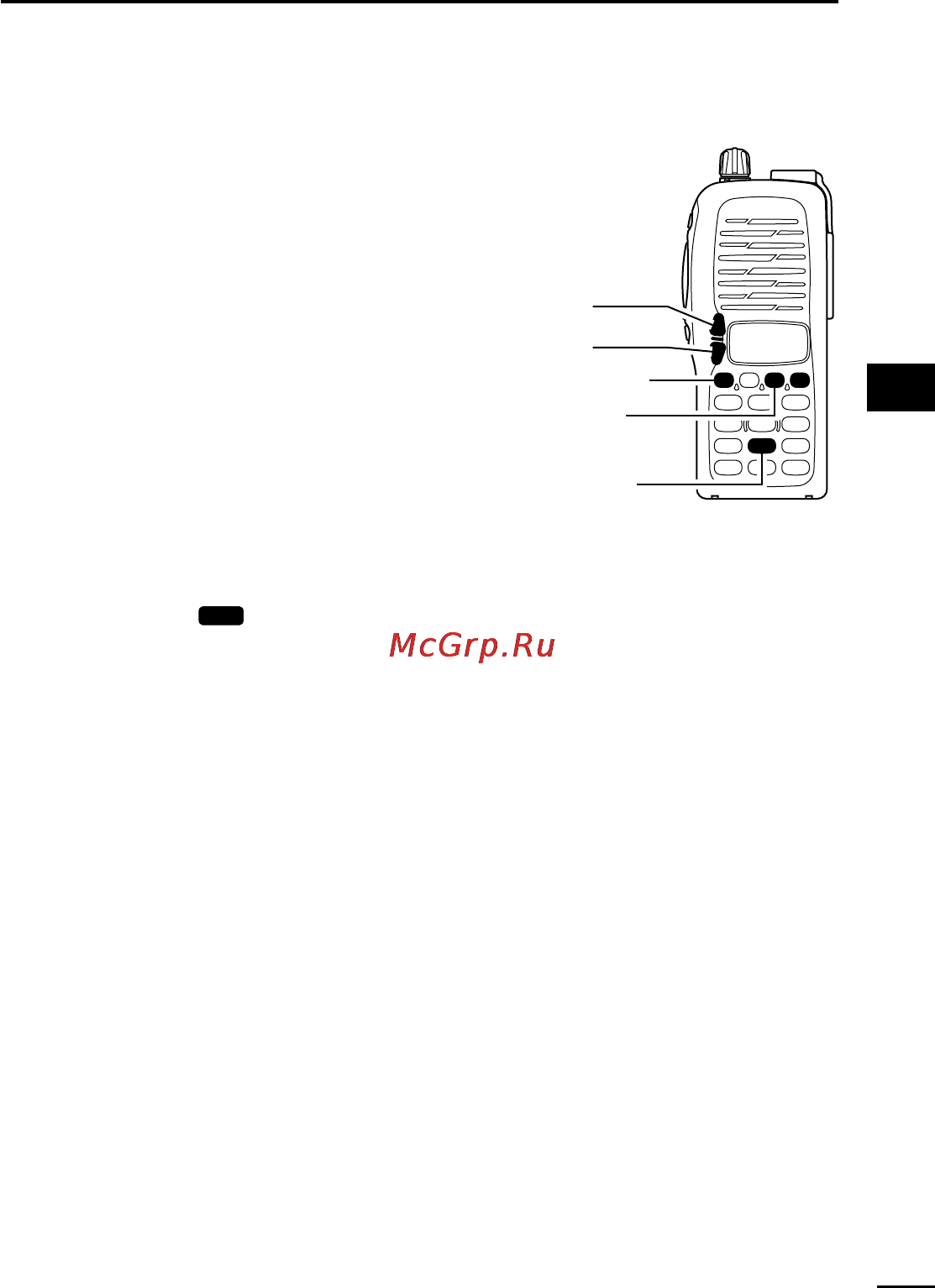

[C•MR]
[8•
SET]
[Z]
[Y]
[A•FUNC]
