43
10
PAGER/CODE SQUELCH
10
DD
Code programming
An ID code MUST be programmed into code channel C0. Up to 6
transmit codes are programmable into code channels, C1 to C6, if
required.

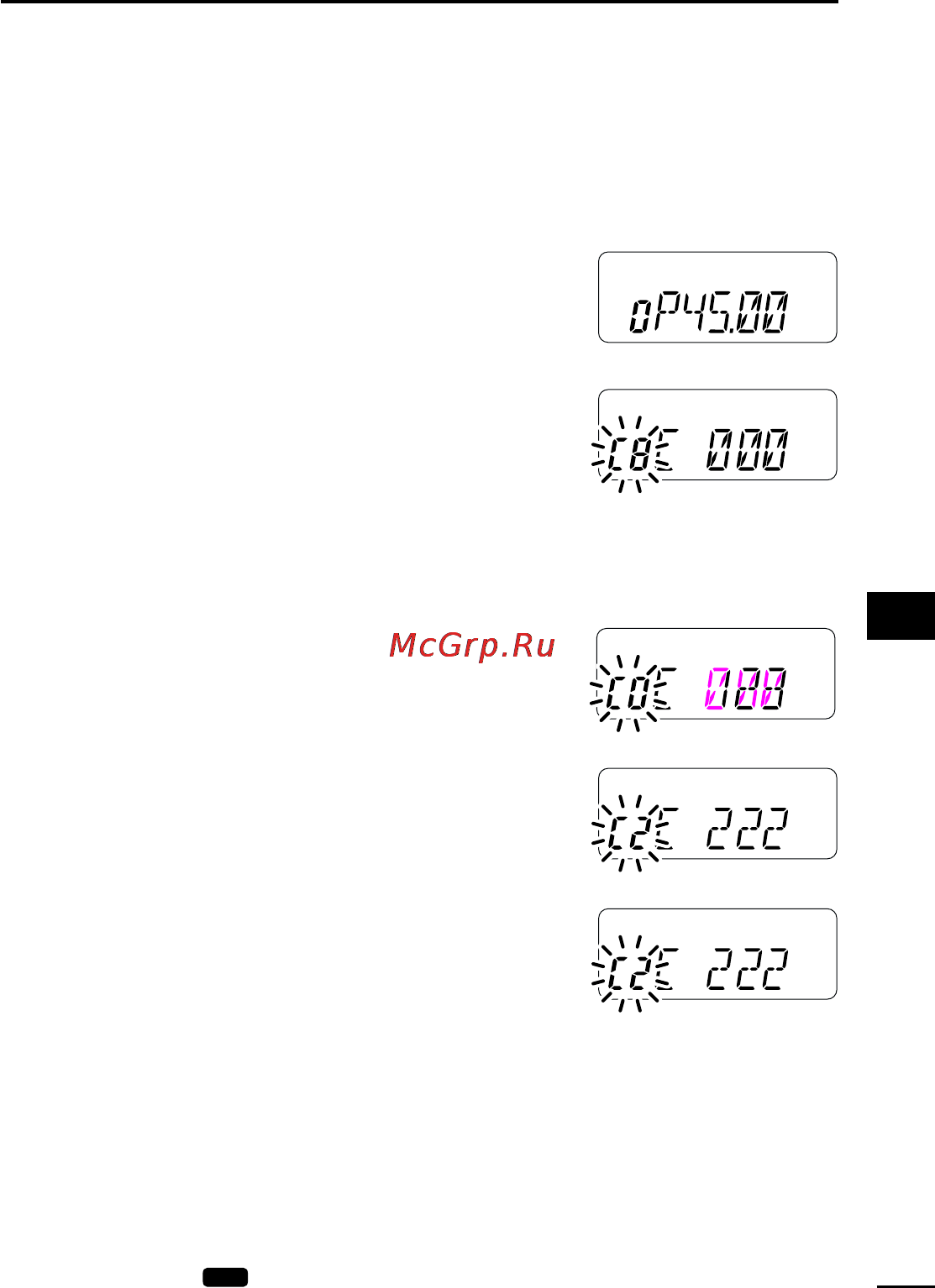

q Push [A•
FUNC
], then push [✱•
OPTION
].
• Pager mode is selected.
• 100 MHz digit shows “P.”
w Push [A•
FUNC
], then push [8•
SET
].
• One of either “CP” or “C0” to “C6” blinks.
•“C0” is the ID code and “C1” to “C6” are
transmit codes.
e Rotate [VOL] to select code channel C0.
• A different ID code must be programmed into each transceiver.
r Enter the desired 3-digit ID code via the
keypad.
t Rotate [VOL] to select a transmit code
channel from C1 to C6.
y Enter the desired 3-digit transmit code via
the keypad.
u Push [A•
FUNC
], then push [6•
SKIP
] to set
the channel for “receive inhibit” or “re-
ceive accept.”
• When “receive inhibit” is set, “SKIP” ap-
pears as at right.
• Code channel C0 cannot be set as “receive inhibit.”
• See the table for “receive accept” and “receive inhibit” details
(p. 44).
i Repeat steps t and y to set additional transmit code channels,
if desired.
o Push [#•
ENT
] or [PTT] to exit code set mode.
MR
F
TX
MR
F
TX
MR
F
TX
MR
F
TX
SKIP
MR
F
TX
