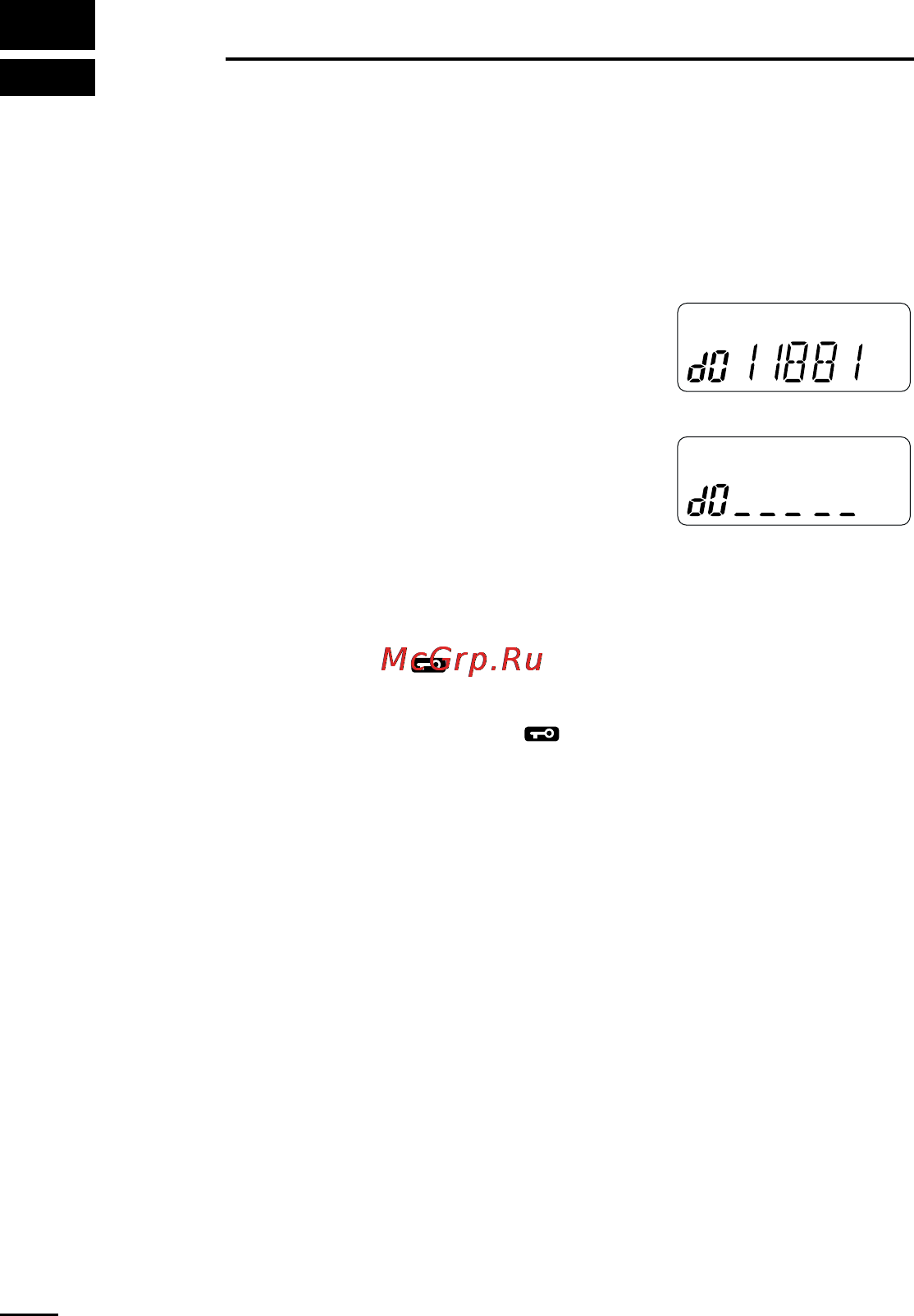

DTMF MEMORY
■ Programming a DTMF code
The transceiver has 5 DTMF memory channels (d0 to d4) for stor-
age of often-used DTMF codes of up to 24 digits.
q Push [A•
FUNC
], then push [0•
DTMF
-
M
] to
enter the DTMF memory.
• One of “d0” to “d4” appears.
w Rotate [VOL] to select the desired channel.
e Push [A•
FUNC
], then push [0•
DTMF
-
M
] for
1 sec. to enter the DTMF programming
mode.
•“_____” appears.
• Programmed memories can be cleared in this way.
r Push the digit keys, [A•
FUNC
], [B•
CALL
], [C•
MR
], [D•
CLR
],
[✱•
OPTION
] and [#•
ENT
] to enter the desired DTMF code.
• A maximum of 24 digits can be input.
• [✱•
OPTION
] enters as “E”, [#•
ENT
] enters as “F.”
• If a digit is mistakenly input, push [SQL] or [PTT] momentarily then
repeat from step q.
t Push [SQL] or [PTT] to input the digits and exit the DTMF pro-
gramming mode.
• Programmed DTMF codes sound when [SQL] is pushed to exit.
