V
QUICK REFERENCE
4. Tune the desired frequency
The up/down keys, [Y]/[Z], will allow you
to tune to the frequency that you want to
operate on. Page 18 will instruct you on
how to adjust the tuning step.
➥
Push [Y] or [Z] to adjust the frequency.
Direct frequency input from the keypad is
also available.
➥ To enter the desired frequency, enter
6-digits starting from the 100 MHz
digit.
• Enter three to five digits then push
[#•
ENT
] to set the frequency.
• When a digit is mistakenly input, push [D.
CLR
] to abort inputting.
5. Transmit and receive
➥ Push and hold [PTT] to transmit, then speak into microphone; re-
lease to receive.

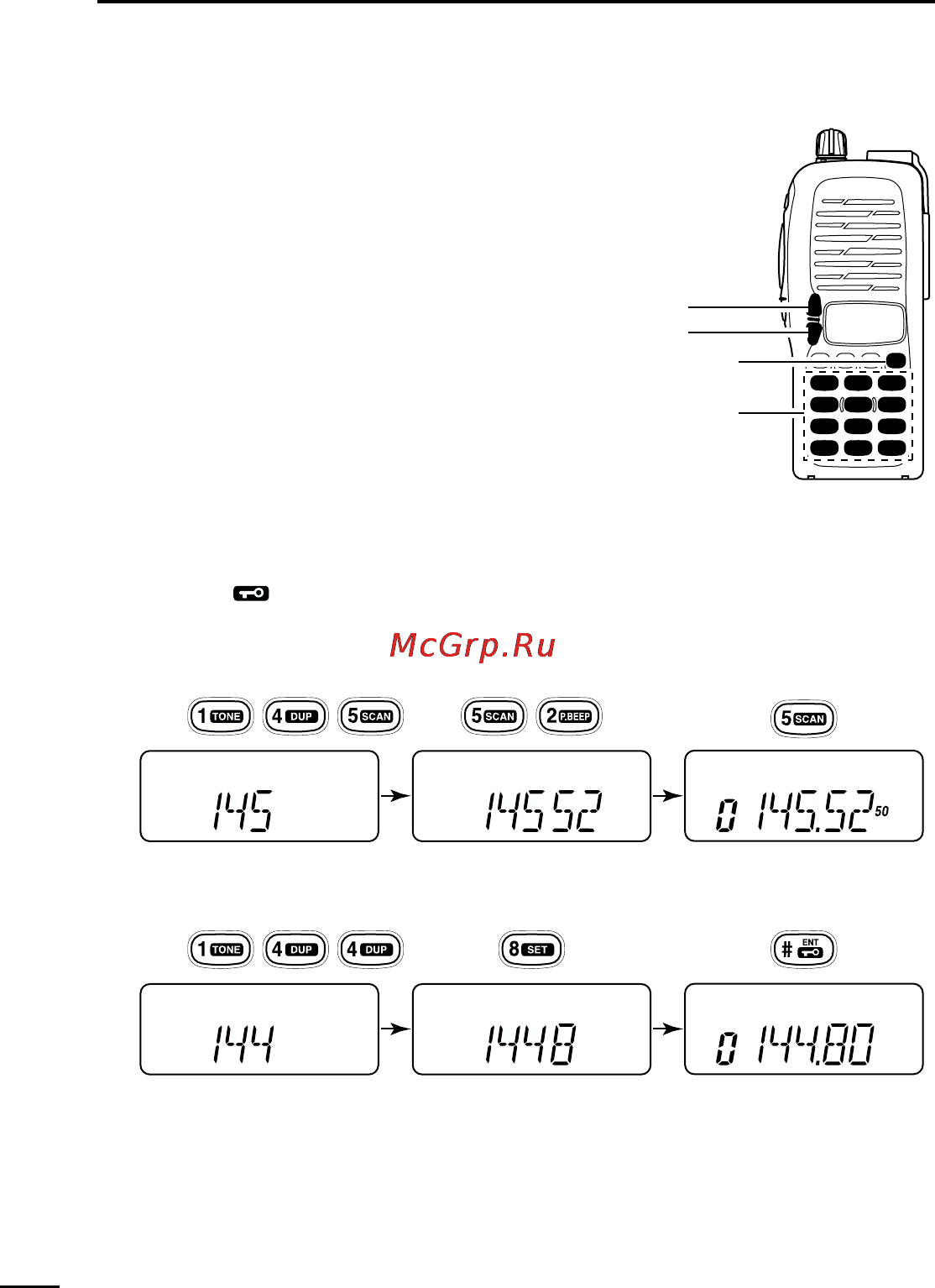

• Example 1— when entering 145.525 MHz
Push
• Example 2— when entering 144.800 MHz
Push
[Y]
[Z]
Keypad
[D•CLR]
IC-V8_New.qxd 02.5.23 10:55 Page V (1,1)
