Icom IC-V8 [63/80] I code squelch
![Icom IC-V8 [63/80] I code squelch](/views2/1074455/page63/bg3f.png)
47
10
PAGER/CODE SQUELCH
10
■ Code squelch
Code squelch provides communications with quiet standby since
you will only receive calls from stations which know your ID or
group code. Each push of [PTT] sends a 3-digit code in order to
open the receiving station’s code squelch prior to voice transmis-
sion.
q Set the operating frequency.
•
Set the AF and squelch to the desired level as in normal operation.
w Push [A•
FUNC
], then push [✱•
OPTION
].
• Repeat several times, if necessary.
• Code squelch mode is selected.

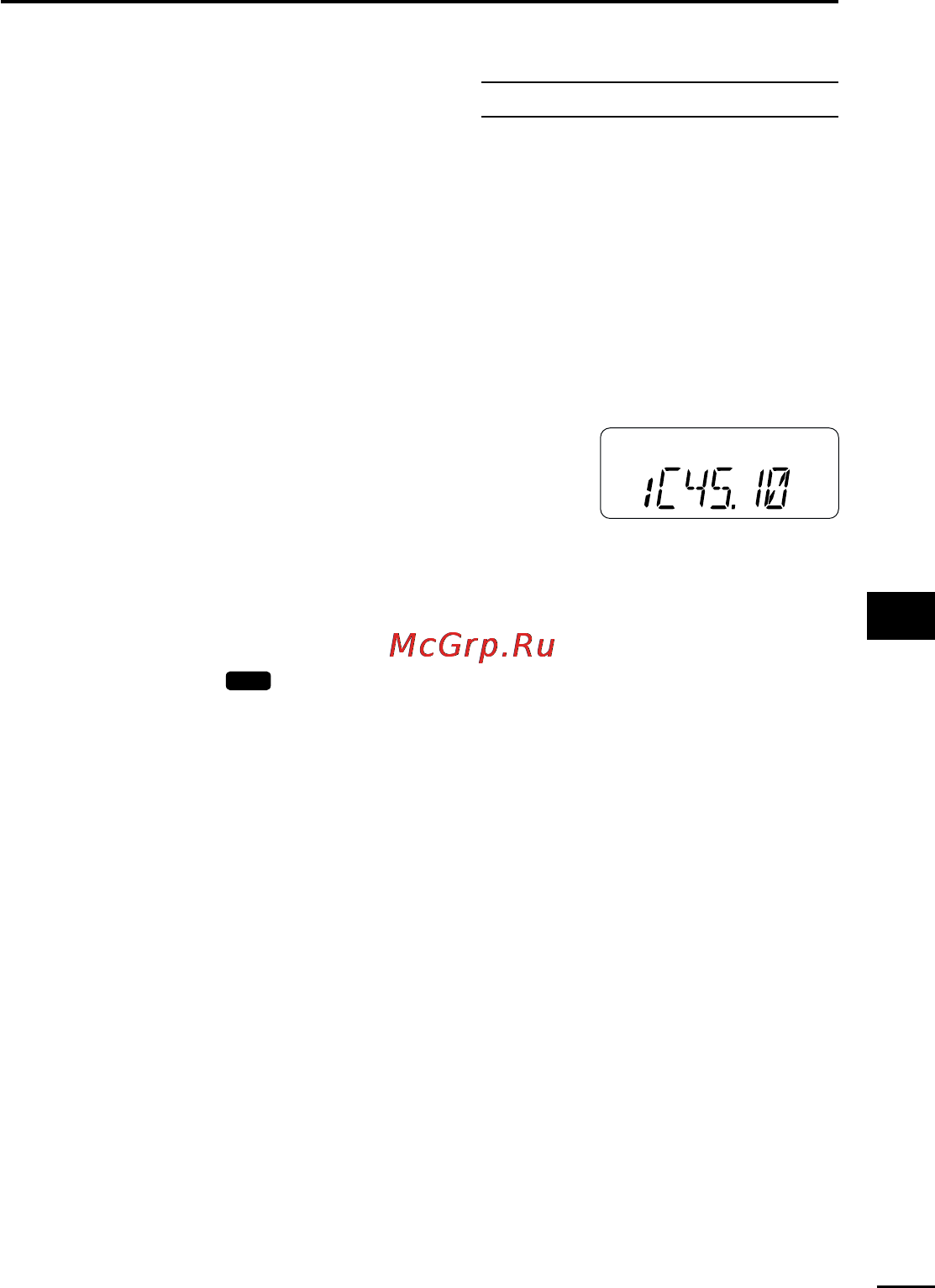

• 100 MHz digit shows “C.”
e Select the desired transmit code channel:
➥ Push [A•
FUNC
], then push [8•
SET
].
➥ Rotate [VOL] to select the desired code channel.
➥ Push [#•
ENT
] to exit code set mode.
r Operate the transceiver in the normal way (push [PTT] to trans-
mit; release [PTT] to receive).
t To cancel the code squelch, push [A•
FUNC
], then push
[✱•
OPTION
].
• 100 MHz digit shows “1” when the function is cancelled.
Optional UT-108 required
MR
F
TX
IC-V8_New.qxd 02.5.23 10:56 Page 47 (1,1)
