31
7
DTMF MEMORY
7
■ Transmitting a DTMF code
D Using a DTMF memory channel
q Push [A•
FUNC
], then push [0•
DTMF
-
M
] to enter the DTMF mem-
ory.
w Rotate [VOL] to select the desired channel.
e Push [SQL] or [PTT] to exit the DTMF memory mode.
r While pushing [PTT], push [SQL] to transmit the selected DTMF
memory.
• After the DTMF code is transmitted, the transceiver returns to re-
ceive automatically.
D Manual DTMF code transmission
While pushing [PTT], push digit keys, A–F to transmit a DTMF code
manually.
■ DTMF
transmission speed
When slow DTMF transmission speeds are required with DTMF
memory transmission (as for some repeaters), the transceiver’s rate
of DTMF transmission can be adjusted.
qWhile pushing [Y] and [Z], turn the power
on to enter
INITIAL SET MODE
.

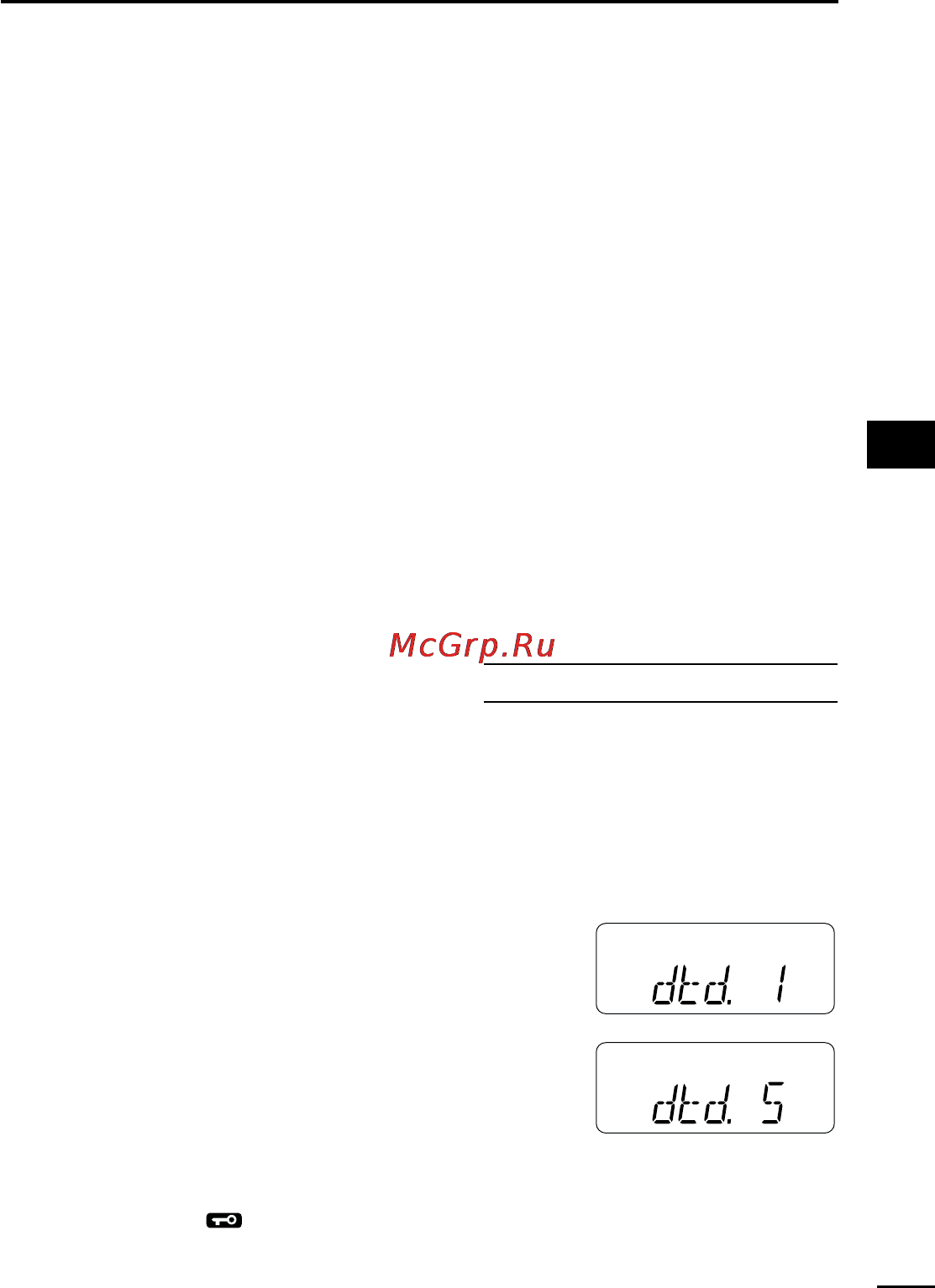

wPush [Y] or [Z] several times until “dtd”
appears.
eRotate [VOL] to select the desired DTMF
transmission speed.
• Four speeds are available: “1” (100 msec.
intervals) is the fastest; “5” (500 msec. intervals) is the slowest.
r Push [#•
ENT
] to exit
INITIAL SET MODE
.
USING
INITIAL SET MODE
MR
F
TX
MR
F
TX
IC-V8_New.qxd 02.5.23 10:55 Page 31 (1,1)
