Icom IC-V8 [67/80] Initial set mode
![Icom IC-V8 [67/80] Initial set mode](/views2/1074455/page67/bg43.png)
51
11
OTHER FUNCTIONS
11
■

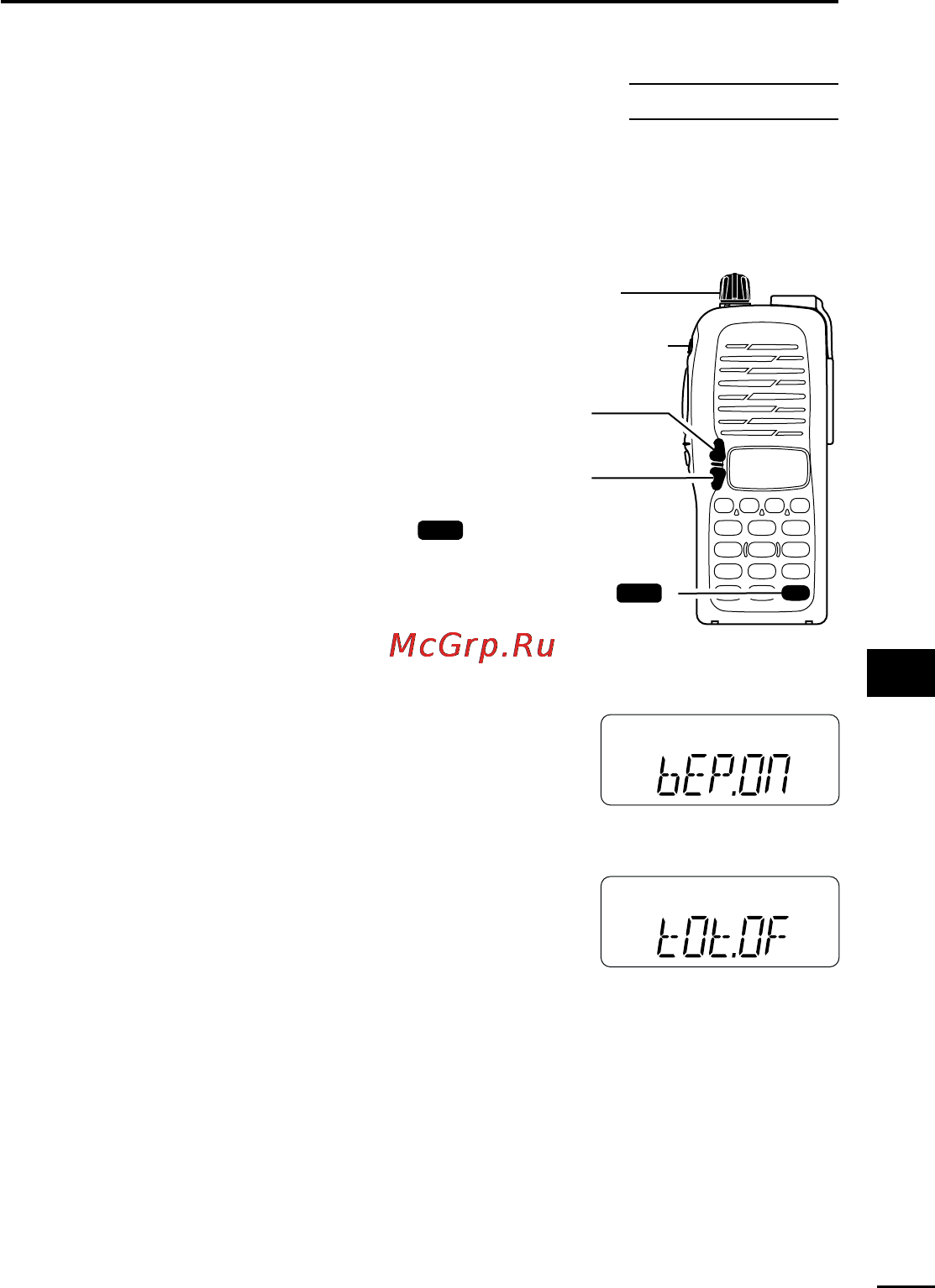

INITIAL SET MODE
The
INITIAL SET MODE
is accessed at power on and allows you to set
seldom-changed settings. In this way, you can “customize” trans-
ceiver operations to suit your preference and operating style.
DD
Entering
INITIAL SET MODE
q While pushing [Y] and [Z], turn power
ON.
w Push [Y] or [Z] to select the desired
item.
e Rotate [VOL] to select the condition
or value.
• To exit set mode, push [#•
ENT
].
DD
Key-touch beep
Turns key-touch beep emission ON and OFF.
• Default: ON
DD
Time-out timer
To prevent accidental prolonged transmission,
etc., the transceiver has a time-out timer. This
function cuts a transmission OFF after 1–30
min. of continuous transmission. This timer
can be cancelled.
• tOt.OF : The time-out timer is turned OFF. (default)
• tOt. 1–30 : The transmission is cut OFF after the set period
elapses.
[Y]
[Z]
[VOL]
[POWER]
[#•ENT ]
AT
POWER ON
MR
F
TX
MR
F
TX
IC-V8_New.qxd 02.5.23 10:56 Page 51 (1,1)
