BATTERY PACKS
3
■ Battery charging
D Regular charging with the BC-146
The optional BC-146 provides regular charging of an optional bat-
tery pack with/without transceiver. The following is additionally re-
quired:
• An optional AC adapter. (An AD-99 is supplied with BC-146.)

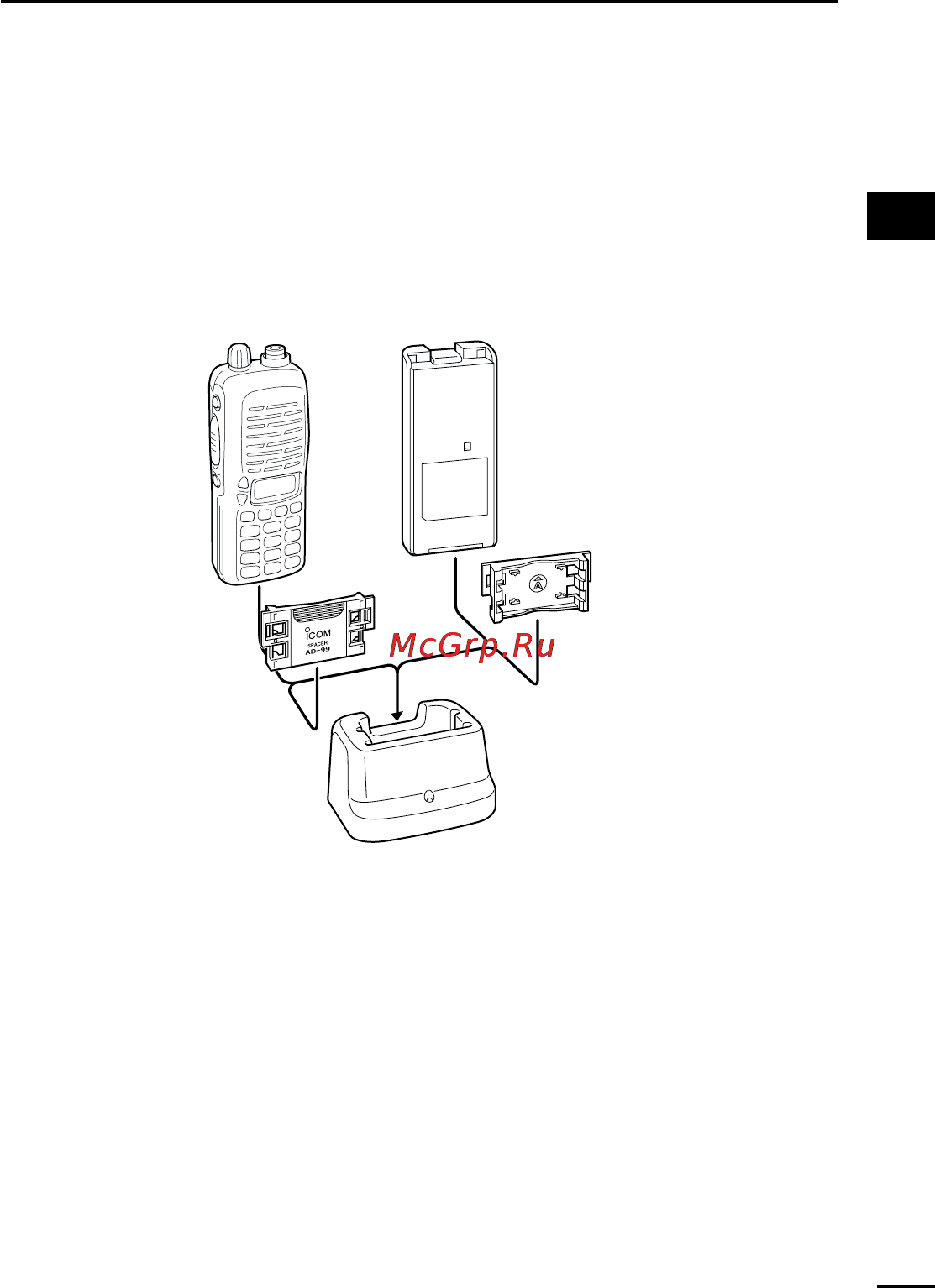

Check orienta-
tion for correct
charging. (In-
sert together
with AD-99.)
Turn power OFF.
BC-146 +AD-99
